CHIEF MSP-DCCUST2 Installationsanleitung Seite 93

安裝指示

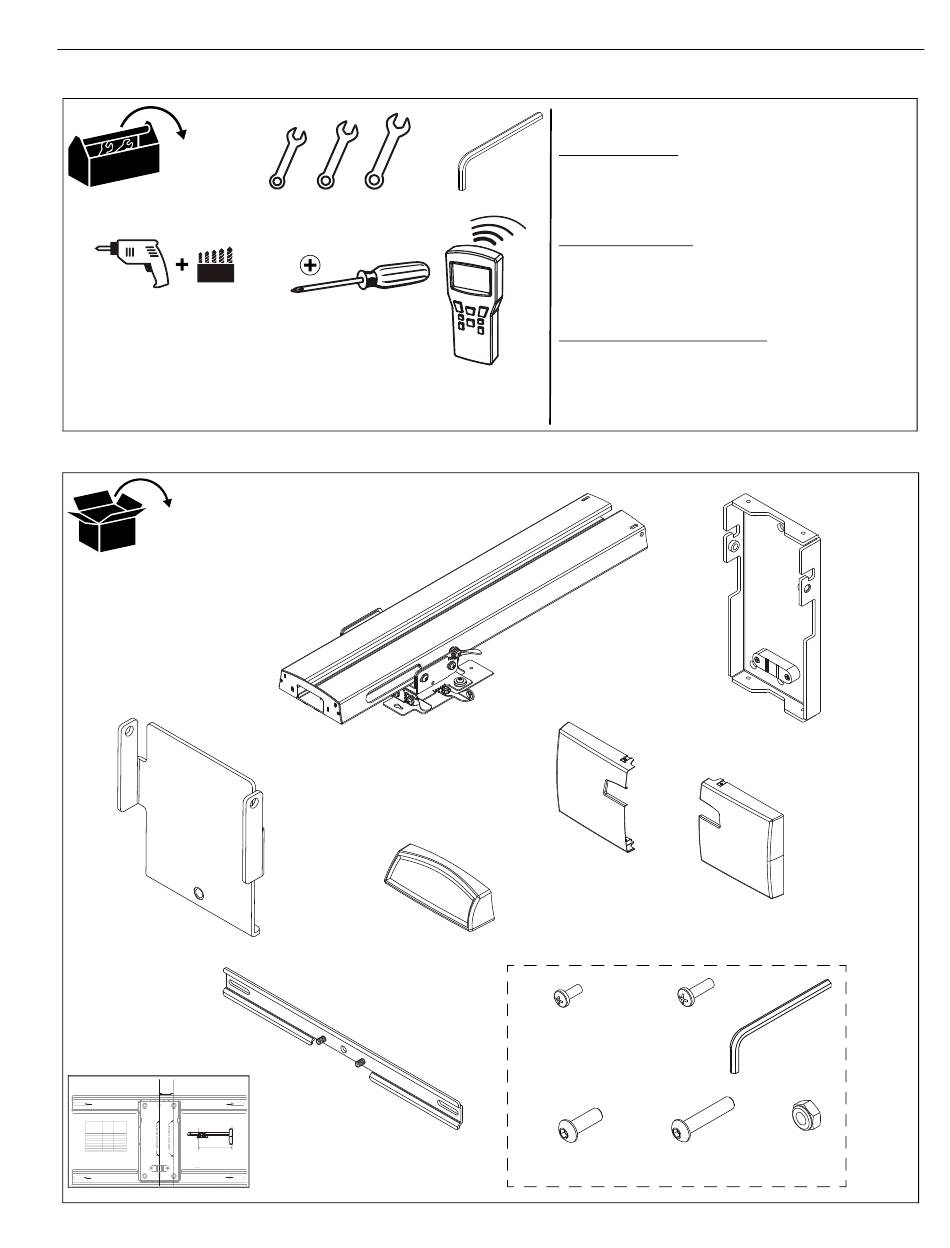

安裝所需的工具
1/2 吋 (12.7 公釐) - 鋼製立柱
3/8 吋 (9.5 公釐) / 5/16 吋 (7.9 公釐) - 混凝土
7/32 吋 (5.6 公釐) - 鋼製立柱
零件
C (1)
[懸臂調整板]
G (2)
[雙立柱托架]
1-7/16"
LINE UP BOTTOM EDGE OF WALL BRACKET
[36.5mm]
WITH BOTTOM EDGE OF PAPER
DRILL WITHIN DRILL WITHIN
SLOT SLOT
*THROW DISTANCE is measured from wall
with attached bracket to front of
projector mount.
SCREEN THROW VERTICAL
DIAGONAL DISTANCE* DISTANCE**
(16:10 aspect ratio) (inches) (inches)
(inches)
100 25.375 12.00
95 24.125 11.375
91 22.50 10.75
87WB 22.00 10.625
87 21.25 10.125
THROW DISTANCE
81 19.25 9.375
77 18.00 8.75
**VERTICAL DISTANCE is measured from
bottom of wall bracket to top of projected
8800-002357 Rev01 image, NOT top of whiteboard frame.
07/13
DRILL WITHIN
DRILL WITHIN
SLOT
SLOT
1/2 吋 (12.7 公釐)
A (1)
[短焦投影機懸臂]
D (1)
[端蓋]
J (1)
[ 安裝範本 ]
需要硬體 (非隨附)：
鋼製立柱安裝方式
5/32 吋
4 - Toggler® 1/4-20 (BB) 捕捉開關
•
(內含)
4 - 2 級以上的 1/4-20 x 1-3/4 吋十字平頭螺絲
•
4 - 2 級以上的 1/4 吋墊圈
•
混凝土立柱安裝方式
4 - Fischer UX 10 x 60 固定錨 [P/N 077871]
•
或
4 - Toggler A8/AF8 固定錨
•
木製立柱與混凝土立柱安裝方式
4 - 2 級以上的 5/16 x 2-1/2 吋六角木牙螺絲
•
4 - 2 級以上的 5/16 吋墊圈
•
E (1)
[右壁蓋]
H (1) [硬體工具組]
HA (4)
HB (4)
M4 x 10 公釐 10-24 x 5/8 吋
HD (2) HE (1)
1/4-20 x 3/4 吋
1/4-20 x 1-1/4 吋
B (1)
[ 壁板]
F (1)
[左壁蓋]
HC (1)
5/32 吋
HF (4)
5/16 吋
93
