I N S T A L L A T I O N I N S T R U C T I O N S
Instructions d´installation
Istruzioni di installazione
Installationsanleitung

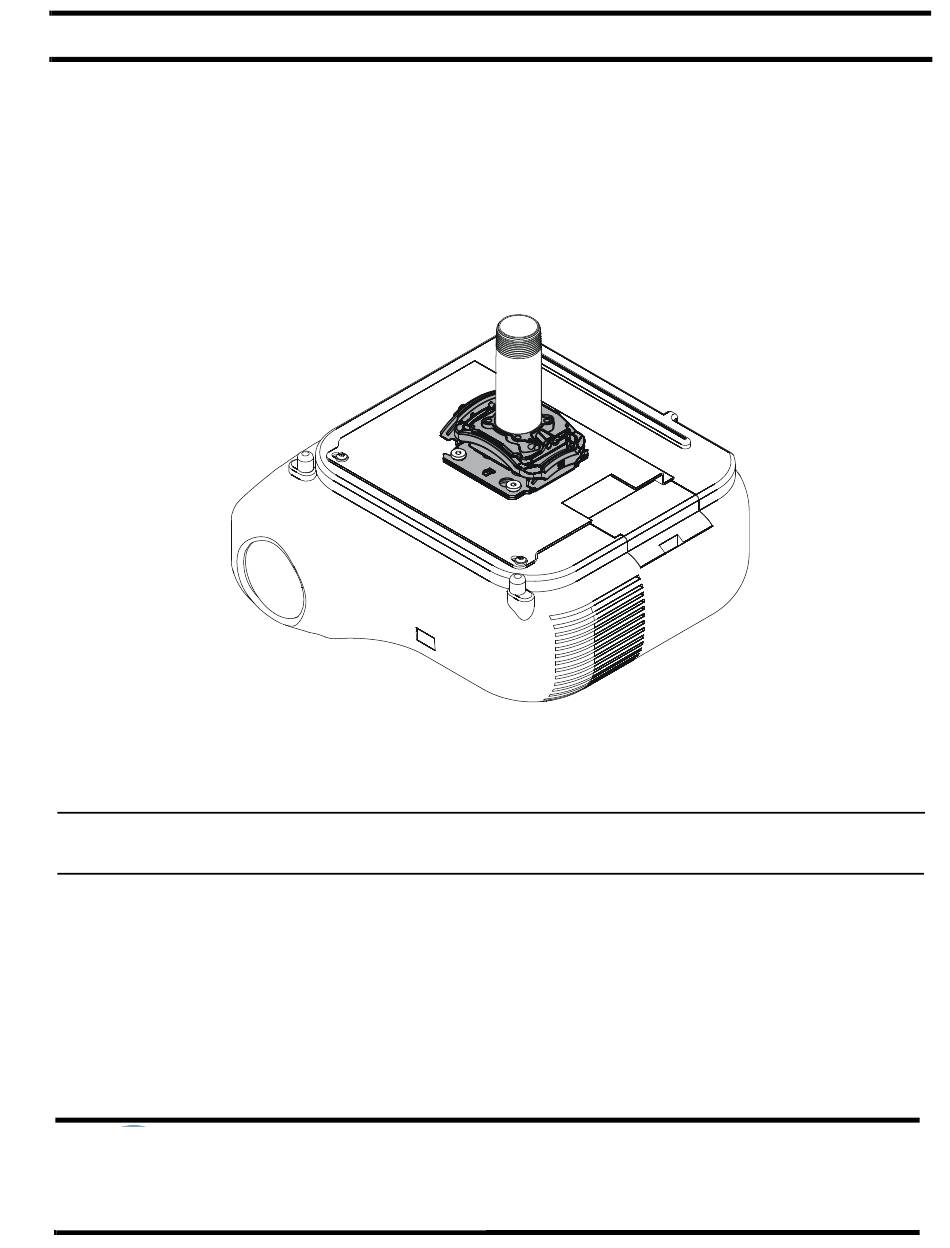

RSM Elite Series Projector Mounts
Ergo In Demand, Inc.
4900 Industry Drive
Central Point, Oregon 97502
Contact Information:
800.888.6024 (Toll Free) or 541.779.3763 (Office)
541.779.0829 (Fax) info@ergoindemand.com (Email)
www.ergoindemand.com (Website)
Instrucciones de instalación
Installatie-instructies
Instruções de Instalação
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RSM A-D

Werbung

loading

Verwandte Anleitungen für CHIEF RSM Elite Series

Inhaltszusammenfassung für CHIEF RSM Elite Series

  • Seite 1 Instrucciones de instalación Istruzioni di installazione Installatie-instructies Installationsanleitung Instruções de Instalação RSM Elite Series Projector Mounts RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount RPA Elite Series Projector Mount Ergo In Demand, Inc.

  • Seite 2: Important Warnings And Cautions

    Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. AVISO: Si no se proporciona la resistencia estructural adecuada para este componente, podrían provocarse graves daños personales o materiales.
  • Seite 3 l l a WARNUNG: Wenn das zulässige Gewicht überschritten wird, AVVERTENZA: La mancata comprensione e ottemperanza kann dies zu schweren Körperverletzungen oder Schäden an alle istruzioni fornite può provocare gravi lesioni personali, den Geräten führen! Der Monteur ist dafür verantwortlich, danni all'apparecchiatura o annullare la garanzia fornita dal dass das kombinierte Gewicht aller Komponenten, die am produttore.
  • Seite 4 l l a WAARSCHUWING: Overschrijding van het draagvermogen ADVERTISSEMENT: Le manque de la lecture, de la kan de oorzaak zijn van ernstig persoonlijk letsel en compréhension et du respect total de toutes les instructions, beschadiging van de apparatuur! Degene die het product peut entraîner des blessures corporelles graves, installeert is ervoor verantwoordelijk dat het totale gewicht endommager l'équipement ou annuler la garantie d'usine.
  • Seite 5 l l a LEGEND Pencil Mark Tighten Fastener Marquage au crayon Serrez les fixations Segno a matita Serrare il fissaggio Stiftmarkierung Befestigungsteil festziehen Marcar con lápiz Apretar elemento de fijación Potloodmerkteken Bevestiging vastdraaien Marcar com lápis Apertar fixador Drill Hole Loosen Fastener Percez un trou Desserrez les fixations...
  • Seite 6 l l a Hammer Target of Projector Martillo Punto de enfoque del proyector Hammer Ziel des Projektors Martelo Mira do projector Martello Punto di proiezione Hamer Doel van de projector Marteau Cible du projecteur 7/32" (6mm) dia. 7/16" A (1)
  • Seite 7 l l a RSM INSTALLATION Threaded Pipe Installation Carefully determine required mounting location. IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance. Install ceiling plate and extension accessories following installation instruction provided by manufacturer.

  • Seite 8: Wood Stud Installation

    l l a INSTALLATION Wood Stud Installation Carefully determine required mounting location. IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance. WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.
  • Seite 9 l l a Concrete Installation Determine mounting location. WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted. Using the RSM as a guide, mark four mounting hole locations on ceiling using a pencil or similar tool.
  • Seite 10 Secure interface bracket to mount using installation instructions and hardware provided with interface bracket. NOTE: Interface brackets can be installed using the optional All-Points Security Kit from Chief. Contact a Chief customer service representative for additional information.
  • Seite 11 l l a Install Projector With Interface Bracket Orient projector with interface bracket as shown in figure 2a at left. Lift projector so that screws with thumb nuts are aligned with mounting slots in mount base. Slide projector with mounting bracket onto mounting Example Only slots in mount base until screws are seated against (Interface bracket...

  • Seite 12: Pitch Adjustment

    l l a Example Only ADJUSTMENTS (Interface bracket varies dependent YAW Adjustment on projector model) Loosen YAW adjustment locking screw using a #2 Phillips screwdriver. Turn YAW micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
  • Seite 13 l l a Roll Adjustment Loosen ROLL adjustment locking screw using a #2 Phillips screwdriver. Turn ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target. Example Only (Interface bracket Tighten ROLL adjustment locking screw using a #2 varies dependent Phillips screwdriver.
