Installation Instructions
Steel Studs
IMPORTANT ! :
See Site Requirements section before
proceeding with Steel Studs installation to ensure installation
site meets requirements! The drywall must have a minimum
thickness of 1/2"!

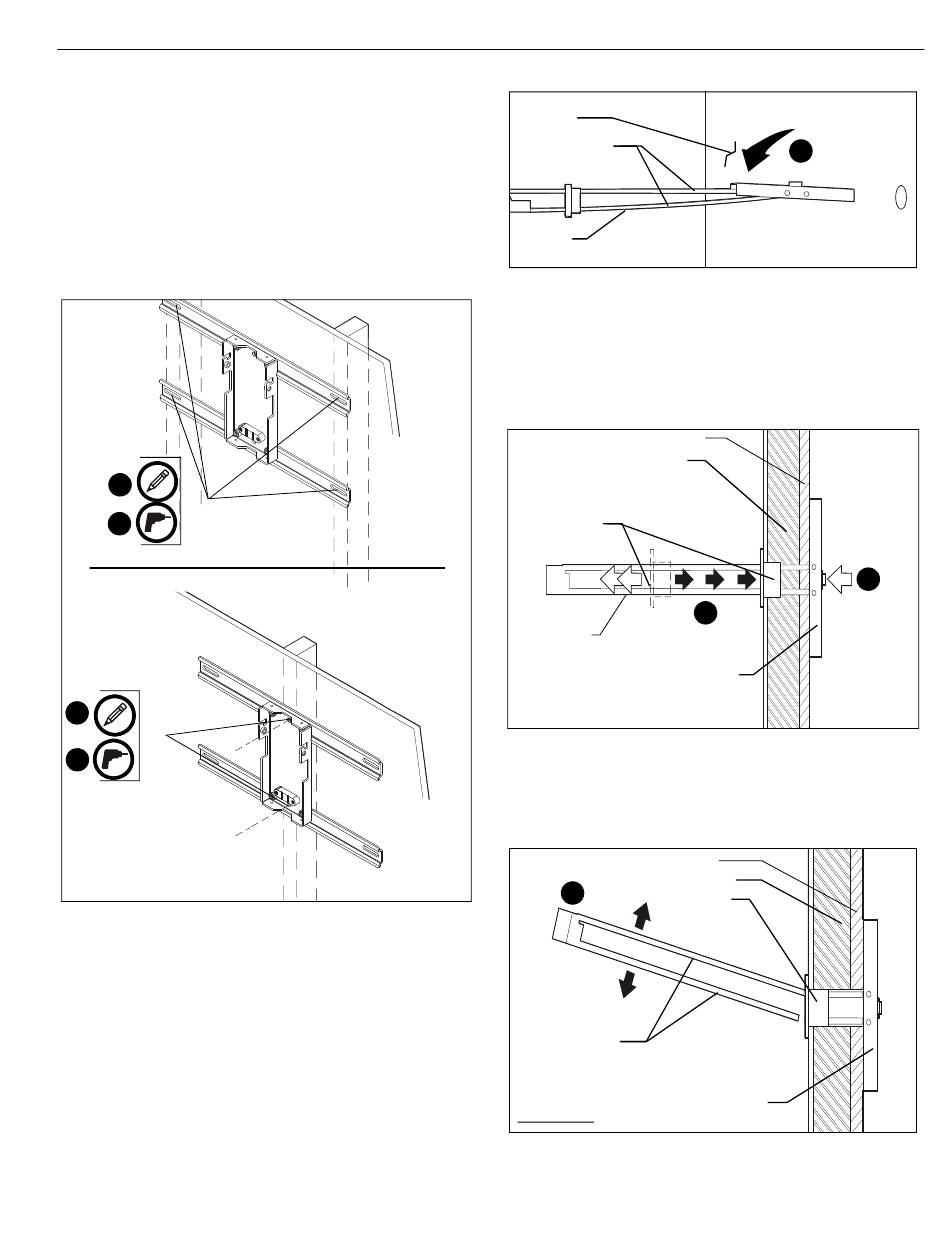

1. Using template, mark four mounting holes (dual stud) as
shown on install template (J), or two mounting holes (single
stud) in wall plate. (See Figure 5)
2. Drill one 1/2" x 1" hole at marked location on wall. (See
Figure 5)
1
x 4
2
1
x 2
2
Figure 5
3. Hold metal channel on Toggler® 1/4-20 (BB) Snap-Toggle
(not included) flat alongside plastic straps and slide channel
through hole. (See Figure 6)
Drywall
Plastic Straps
x 4
(Dual stud)
4. Holding plastic straps on anchor, pull anchor away from wall
until channel rests flush behind wall making sure anchor
channel is positioned vertically on stud. (See Figure 7)
5. Slide plastic cap on anchor towards wall until flange of cap
is flush with wall. (See Figure 7)
Plastic Cap
(Single stud)
anchor x 4
(side view)
6. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 8)
Plastic Straps
SIDE VIEW
Figure 6
Steel Stud
Drywall
5
Anchor Metal Channel
Figure 7
Steel Stud
Drywall
6
Plastic Cap
Anchor Metal Channel
Figure 8
