Installation Instructions

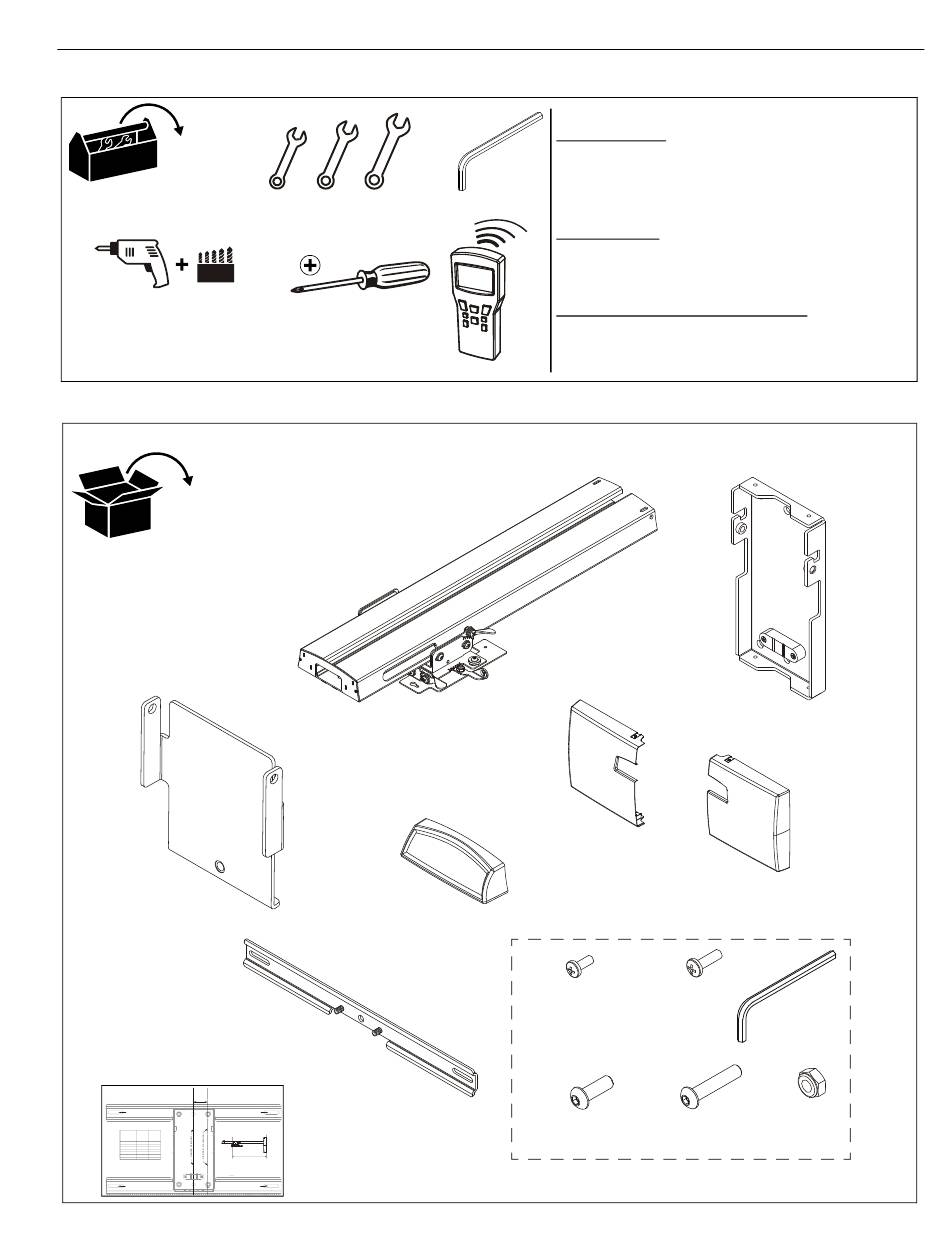

TOOLS REQUIRED FOR INSTALLATION

1/2" - steel stud
3/8" / 5/16" - concrete
7/32" - wood stud
PARTS
C (1)
[Arm adjust plate]
1-7/16"
LINE UP BOTTOM EDGE OF WALL BRACKET
[36.5mm]
WITH BOTTOM EDGE OF PAPER
DRILL WITHIN
SLOT
*THROW DISTANCE is measured from wall
with attached bracket to front of
projector mount.
SCREEN THROW VERTICAL
DIAGONAL DISTANCE* DISTANCE**
(16:10 aspect ratio) (inches) (inches)
(inches)
100 25.375 12.00
11.375
95 24.125
91 22.50 10.75
87WB 22.00 10.625
87 21.25 10.125
81 19.25 9.375
77 18.00 8.75
**VERTICAL DISTANCE
bottom of wall bracket to top of projected
8800-002357 Rev01
image, NOT top of whiteboard frame.
07/13
DRILL WITHIN
SLOT
1/2" (12.7mm)
A (1)
[Short throw
projector arm]
D (1)
[End cap]
G (2)
[Dual stud bracket]
DRILL WITHIN
SLOT
J (1)
[Install template]
THROW DISTANCE
is measured from
DRILL WITHIN
SLOT
Hardware required, not included:
Steel Stud Install
•
4 - Toggler® 1/4-20 (BB) Snap-Toggle
5/32"
• 4 - Grade 2 or better 1/4-20 x 1-3/4" Phillips
(included)
pan head screws
• 4 - Grade 2 or better 1/4" washer
Concrete Install
• 4 - Fischer UX 10 x 60 anchors [P/N 077871]
OR
• 4 - Toggler A8/AF8 anchors
Wood Stud Install and Concrete Install
• 4 - Grade 2 or better 5/16 x 2-1/2" hex head
lag screws
• 4 - Grade 2 or better 5/16" washers
E (1)
[Wall cover - right]
H (1) [Hardware kit]
HA (4)
M4 x 10mm
HD (2)
1/4-20 x 3/4"
1/4-20 x 1-1/4"
MSP-DCCUST2
[Wall plate]
F (1)
[Wall cover - left]
HB (4)
10-24 x 5/8"
HC (1)
5/32"
HF (4)
HE (1)
5/16"
B (1)
