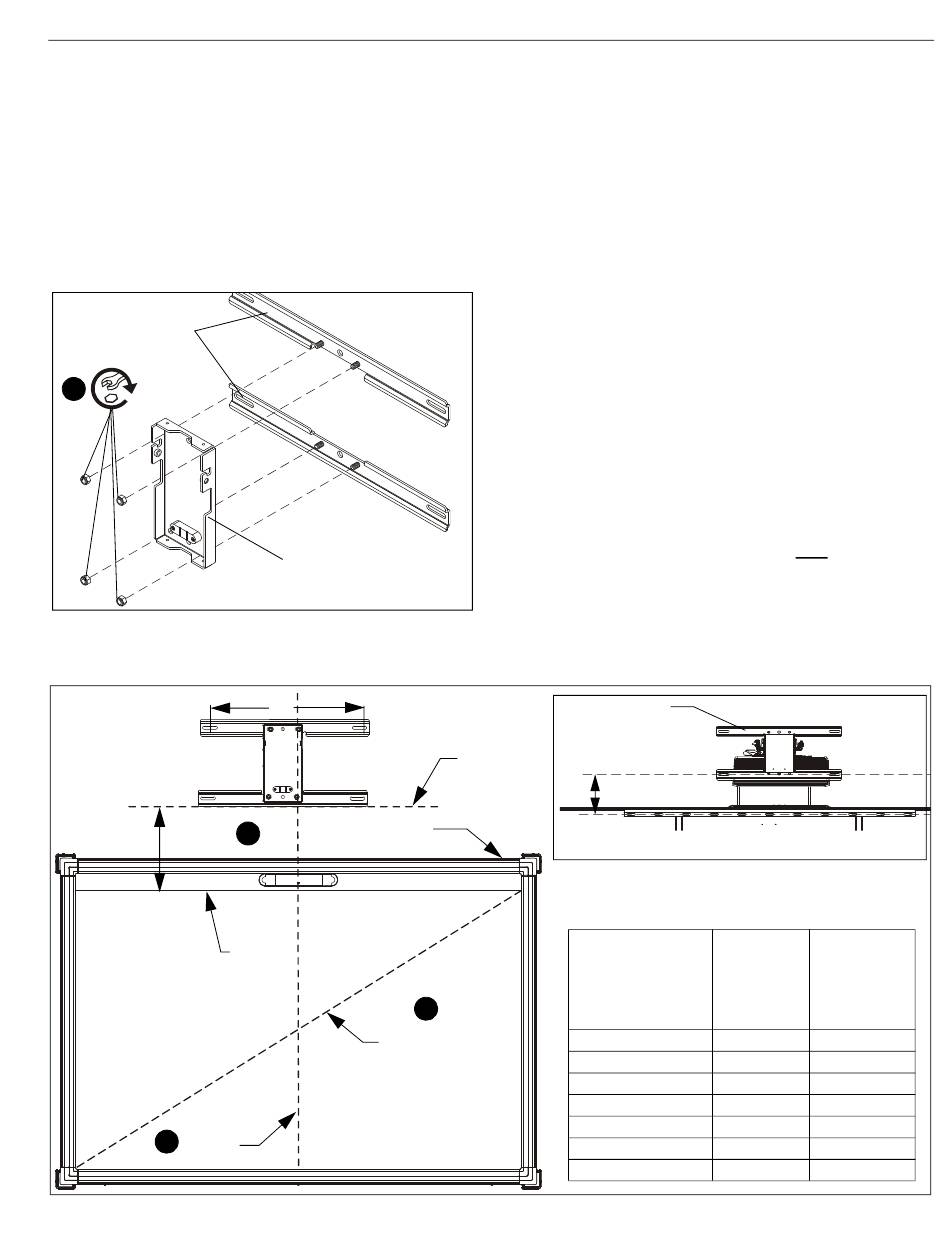

Installation Instructions
ASSEMBLY AND INSTALLATION
The MSP-DCCUST2 short throw projector mount is designed to
be mounted to solid concrete, hollow concrete block, 2" x 4"
wood studs 16" on center, or steel studs 16" on center.
Assembling Wall Plate to Brackets
IMPORTANT ! : This step must be taken for BOTH single
AND dual stud installations!
1.
Attach wall plate (B) to two dual stud brackets (G) using four
5/16" lock nuts (HF). (See Figure 1)
(G)
1
(HF) x 4
Figure 1
Vertical
distance
Center of
3
(B)
16"
Top of
5
frame
Top of
Image/screen
diagonal
Mounting Wall Plate and Brackets
1.
Using a stud finder for wood or steel stud installations, mark
four preliminary mounting holes over center of studs (16" on
center) for dual stud installation, OR two preliminary
mounting holes over center of stud (center of wall plate) for
single stud installation.
NOTE:
When using the dedicated screen/white board, the
distance between the lower mounting holes on lower
dual stud bracket (center) on projector mount wall
bracket and mounting holes (center) on screen/white
board bracket is 6-5/8" [inset graphic in Figure 2 (See
Figure 2)]. This measurement will be used rather than
"vertical distance" measurement. Other measurements
related to the dedicated screen/white board are
indicated in Figure 2 and install template as 87WB.
2.
Determine the image/screen diagonal measurement. (See
Figure 2)
3.
Determine where center of image will be located. (See
Figure 2)
4.
Using chart on install template (J) (See Figure 2), determine
correct vertical distance for image diagonal measurement.
5.
Measure up the correct vertical distance from top of image
to bottom of wall bracket location. (See Figure 2)
NOTE:
Vertical distance is measured from bottom of wall
bracket to top of projected image, NOT top of screen/
white board frame.
6.
Attach install template (J) to wall, aligning the template's
Center of Image indicator and bottom edge of template
with locations determined in Steps 3 and 5. (See Figure 2)
MSP-DCCUST2
wall bracket
Bottom of
wall bracket
(16:10 aspect ratio)
2
Figure 2
6-5/8"
dedicated
screen/white board
SCREEN
THROW
DIAGONAL
DISTANCE
(inches)
(inches)
100
25.375
95
24.125
91
22.50
87WB
22.00
87
21.25
81
19.25
18.00
77
MSP-DCCUST2
(back view)
VERTICAL
DISTANCE
(inches)
12.00
11.375
10.75
10.625
10.125
9.375
8.75
7
