CHIEF MSP-DCCUST2 Installationsanleitung Seite 82

安装说明书

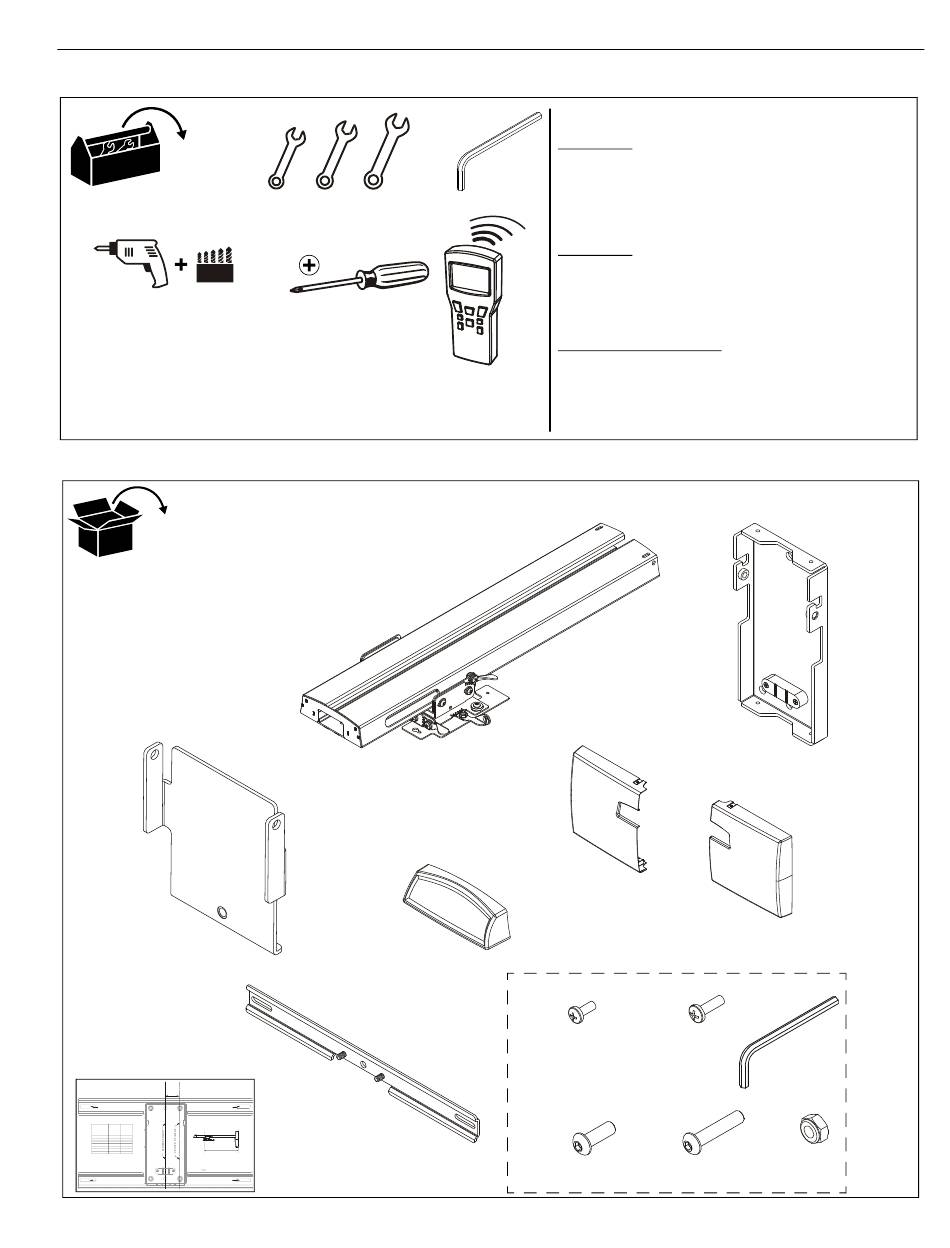

安装所需工具
12.7 mm (1/2") - 钢龙骨
9.5 mm (3/8") / 7.9 mm (5/16") - 混凝土
5.6 mm (7/32") - 木龙骨
零件
C (1)
[ 悬臂调整板 ]
1-7/16"
LINE UP BOTTOM EDGE OF WALL BRACKET
[36.5mm]
WITH BOTTOM EDGE OF PAPER
DRILL WITHIN
DRILL WITHIN
SLOT
SLOT
*THROW DISTANCE is measured from wall
with attached bracket to front of
projector mount.
SCREEN THROW VERTICAL
DIAGONAL DISTANCE* DISTANCE**
(16:10 aspect ratio) (inches) (inches)
(inches)
100 25.375 12.00
95 24.125 11.375
91 22.50 10.75
87WB 22.00 10.625
87 21.25 10.125
THROW DISTANCE
81 19.25 9.375
77 18.00 8.75
**VERTICAL DISTANCE is measured from
bottom of wall bracket to top of projected
8800-002357 Rev01
image, NOT top of whiteboard frame.
07/13
DRILL WITHIN
DRILL WITHIN
SLOT SLOT
12.7 mm (1/2")
A (1)
[ 短投投影机
悬臂 ]
D (1)
[ 端盖 ]
G (2)
[ 双龙骨托架 ]
J (1)
[ 安装模板 ]
所需配件，不提供：
钢龙骨安装
4 - Toggler® 1/4-20 (BB) 捕捉开关
•
5/32"
（含）
4 - 2 级或以上 1/4-20 x 1-3/4" Phillips 盘头机
•
螺丝
4 - 2 级或以上 1/4" 垫圈
•
混凝土安装
4 - Fischer UX 10 x 60 锚栓 [P/N 077871]
•
或者
4 – Toggler A8/AF8 锚栓
•
木龙骨安装和混凝土安装
4 - 2 级或以上 5/16 x 2-1/2" 六角头螺丝
•
4 - 2 级或以上 5/16" 垫圈
•
E (1)
[右壁盖 ]
H (1) [ 配件工具包]
HA (4)
10-24 x 5/8"
M4 x 10 mm
HD (2)
1/4-20 x 3/4" 1/4-20 x 1-1/4"
B (1)
[ 壁板 ]
F (1)
[左壁盖 ]
HB (4)
HC (1)
5/32"
HF (4)
HE (1)
5/16"
82
