CHIEF MSP-DCCUST2 Installationsanleitung Seite 10

MSP-DCCUST2

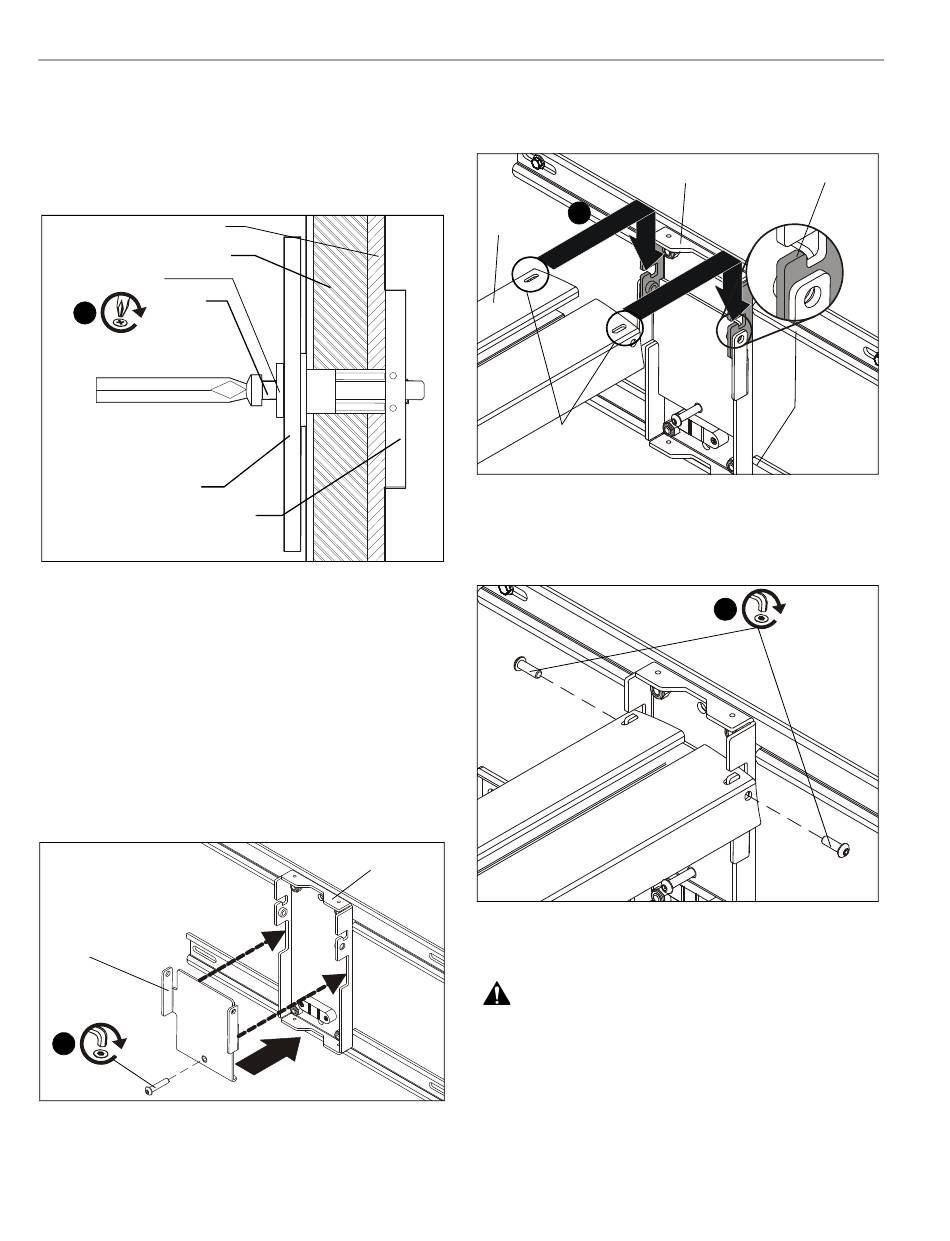

7. Place wall bracket over anchor and align mounting hole in
display mount with hole in anchor. (See Figure 9)
8. Insert Grade 2 or better 1/4-20 x 1-3/4" Phillips pan head
screw (not included) through Grade 2 or better 1/4" washer
(not included), corresponding mounting hole on wall bracket
and into Snap-Toggle (not included) and tighten until flush
against mount. DO NOT over tighten! (See Figure 9)
Steel Stud
Drywall
x 4
x 4
8
(G)
Anchor Metal Channel
(side view)
Figure 9
9. Level wall bracket using attached bubble level.
10. Make any necessary corrections to remaining mounting
hole marking(s).
11. Repeat Steps 2 through 8 for remaining mounting hole(s).
Installing Short Throw Projector Arm to Bracket
1. Attach arm adjust plate (C) to wall plate ensuring that adjust
plate tabs fit into notches on wall plate. Insert and slightly
tighten one 1/4-20 x 1-1/4" button head cap screw (HE). (See
Figure 10)
(C)
1 (HE)
Figure 10
10
2. Lift short throw projector arm (A) up to wall plate (B) and
place projector arm slots over wall plate hooks. (See
Figure 11)
(A)
Projector arm slots
3. Fasten short throw arm (A) to wall plate (B) using two
1/4-20 x 3/4" button head cap screws (HD). (See Figure 12)
(B)
Projector Installation
WARNING:
serious personal injury or damage to equipment! It is the
installer's responsibility to make sure the weight of the
projector does not exceed 25 lbs (11.3 kg).
1. Insert and slightly tighten three M4 x 10mm Phillips pan
head screws (HA) into the projector threaded inserts. (See
Figure 13)
2. Raise the projector up to the projector arm and slide three
screws into slots on the projector arm.
Installation Instructions
(B)
2
Figure 11
3
Figure 12
Exceeding the weight capacity can result in
Wall plate hook
(G)
(HD) x 2
