MSP-DCCUST2
NOTE:
Proceed to the Concrete or Concrete Block, Wood
Studs or Steel Studs section, as appropriate for
installation.
Concrete or Concrete Block
1. Using template, mark four mounting holes (dual stud) as
shown on install template (J), or two mounting holes (single
stud) in wall plate. (See Figure 3)
2. Drill one 3/8" x 3" deep hole at one of the marked locations
in wall. (See Figure 3)
3. Install either one Fischer UX 10 x 60 anchor [Part number
077871] (not included) or one Toggler A8/AF8 anchor (not
included) into one of the drilled holes. (See Figure 3)
4. Install one Grade 2 or better 5/16 x 2-1/2" hex head lag screw
(not included) through one Grade 2 or better 5/16" washer
(not included), one mounting hole in wall bracket and into one
Fischer or Toggler anchor (not included). (See Figure 3)
5. Level wall bracket using attached bubble level.
6. Make any necessary corrections to remaining mounting
hole marking(s).
7. Repeat Steps 2 through 4 for remaining mounting hole(s).
1 x 4 (dual stud)
x 2 (single stud)
2
(G)
4
fasteners
(Single stud fasteners/anchors shown in gray)

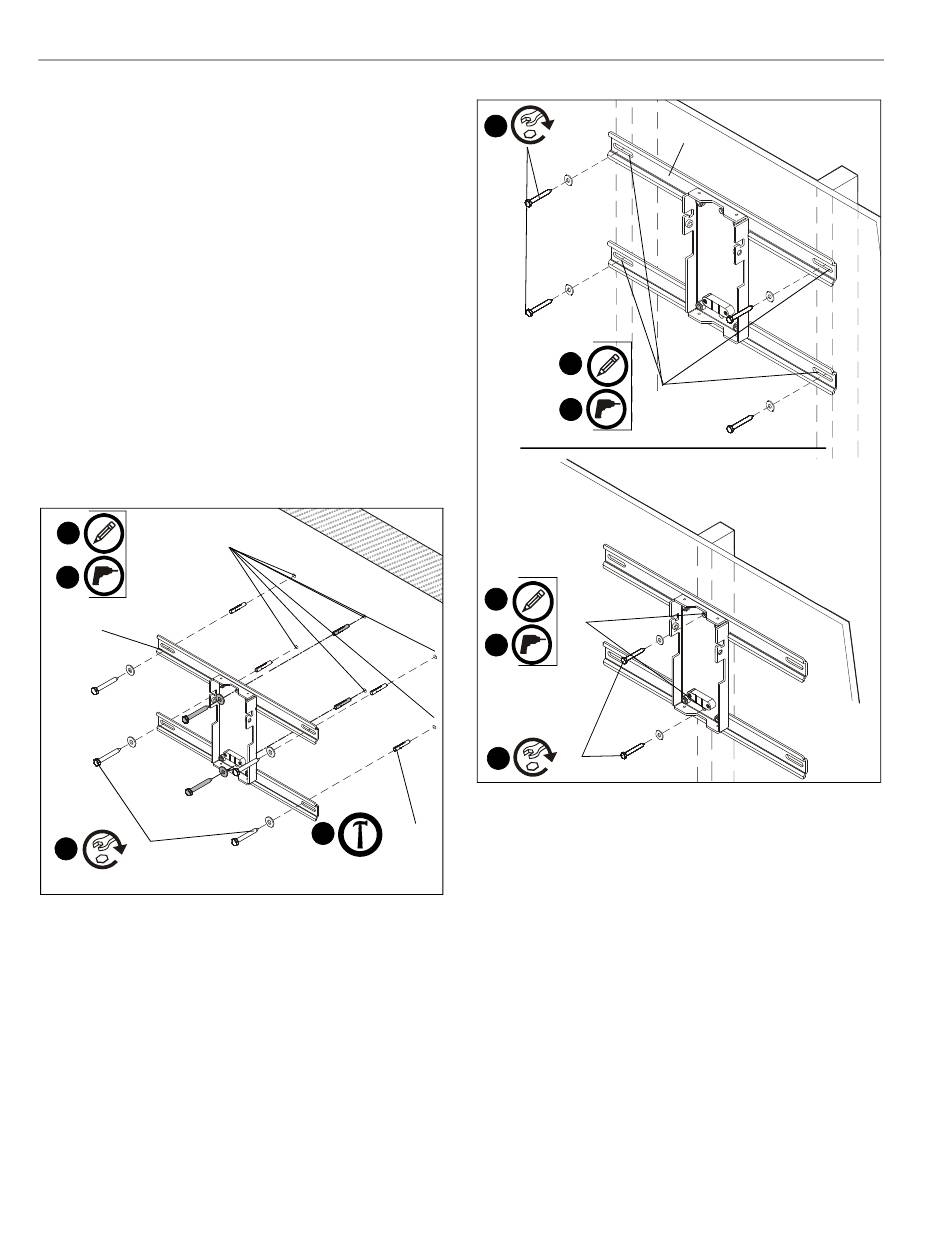

Figure 3
NOTE:
Proceed to Installing Short Throw Projector Arm to
Bracket section to continue installation.
Wood Studs
1. Using template, mark four mounting holes (dual stud) as
shown on install template (J), or two mounting holes (single
stud) in wall plate. (See Figure 4)
2. Drill one 7/32" x 2-1/2" deep hole at marked location in wall.
(See Figure 4)
3. Install one Grade 2 or better 5/16 x 2-1/2" hex head lag
screw (not included) through one Grade 2 or better 5/16"
washer (not included), hole in wall bracket and into drilled
hole. (See Figure 4)
8
3
1
2
3
4.
3
anchors
5.
6.
NOTE:
x 4
(G)
1
x 4
2
x 2
x 2
Figure 4
Level wall bracket using attached bubble level.
Make any necessary corrections to remaining mounting
hole marking(s).
Repeat Steps 2 and 3 for remaining mounting hole(s).
Proceed to Installing Short Throw Projector Arm to
Bracket section to continue installation.
Installation Instructions
(Dual stud)
(Single stud)
