Leveling the Projector Arm
Tighten the button head cap screw on the arm adjustment plate
(C) to level the projector arm. (See Figure 18)

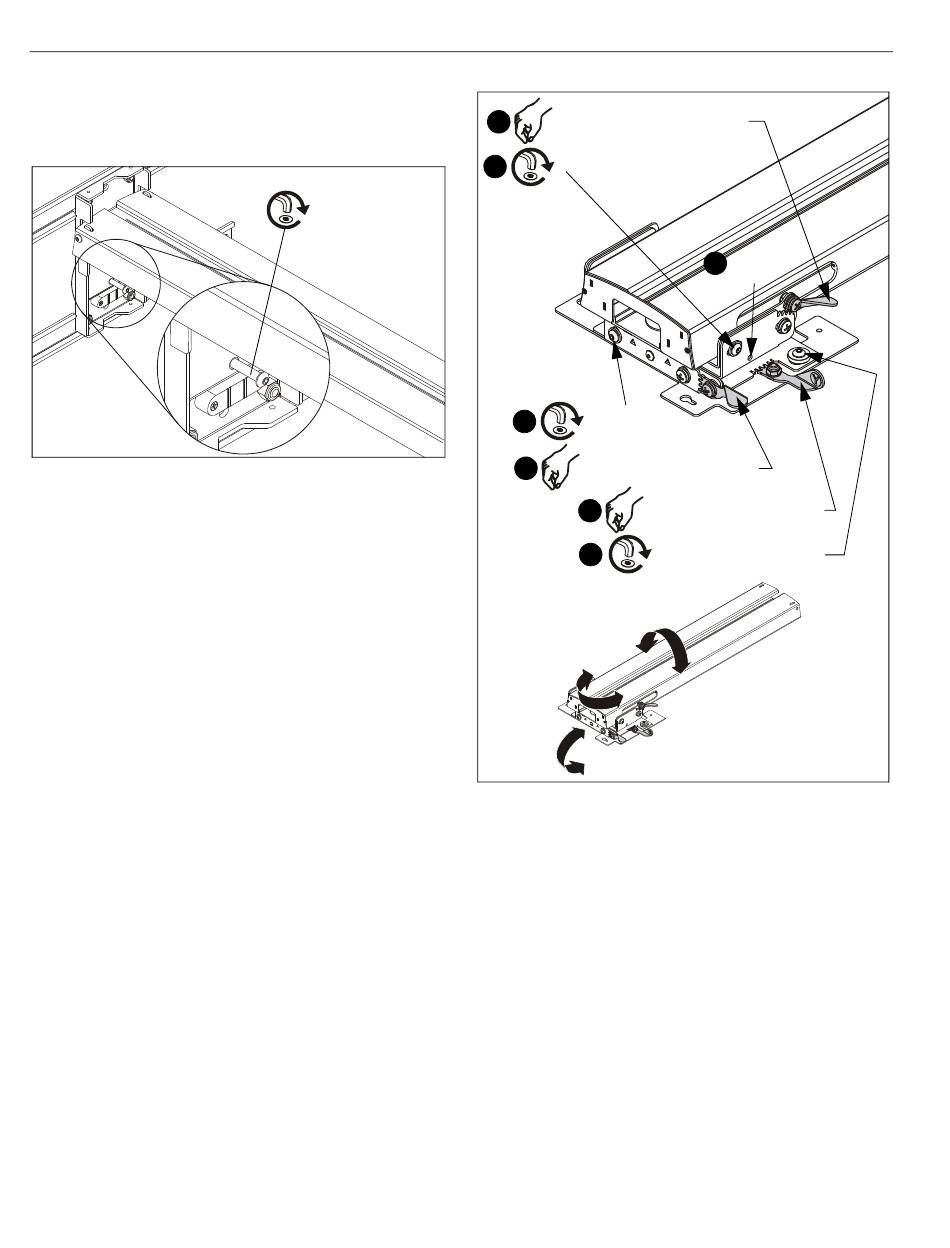

Figure 18
Adjustments
Roll Adjustment
NOTE:
Use a level to make this process easier.
1. Adjust roll using the roll adjustment handle (labeled "R").
(See Figure 19)
2. Tighten roll locking button head screw using 5/32" hex head
wrench (HC). (See Figure 19)
Pitch Adjustment
NOTE:
Use a level to make this process easier.
3. Adjust pitch using the pitch adjustment handle (labeled "P").
(See Figure 19)
4. Tighten pitch locking button head screw using 5/32" hex
head wrench (HC). (See Figure 19)
Yaw Adjustment
5. Adjust side-to-side using the yaw adjustment handle
(labeled "Y"). (See Figure 19)
6. Tighten yaw locking button head screw using 5/32" hex
head wrench (HC). (See Figure 19)
12
3
4
x 1
7.
Cable Management (Optional)
1.
2.
Pitch adjustment handle (P)
x 1 (lock pitch adjustment)
x 1 (lock roll
2
adjustment)
Roll adjustment handle (R)
1
Yaw adjustment handle (Y)
5
x 1 (lock yaw adjustment)
6
Roll
Yaw
Pitch
Figure 19
After making all adjustments, store hex head wrench (HC)
in opening on side of projector mount. (See Figure 19)
Route cables/cords from projector through opening on
projector arm and route to wall.
Guide cables/cords from wall end of projector arm upward
or downward through slots in wall plate.
Installation Instructions
wrench
7
storage
(Projector not shown)
