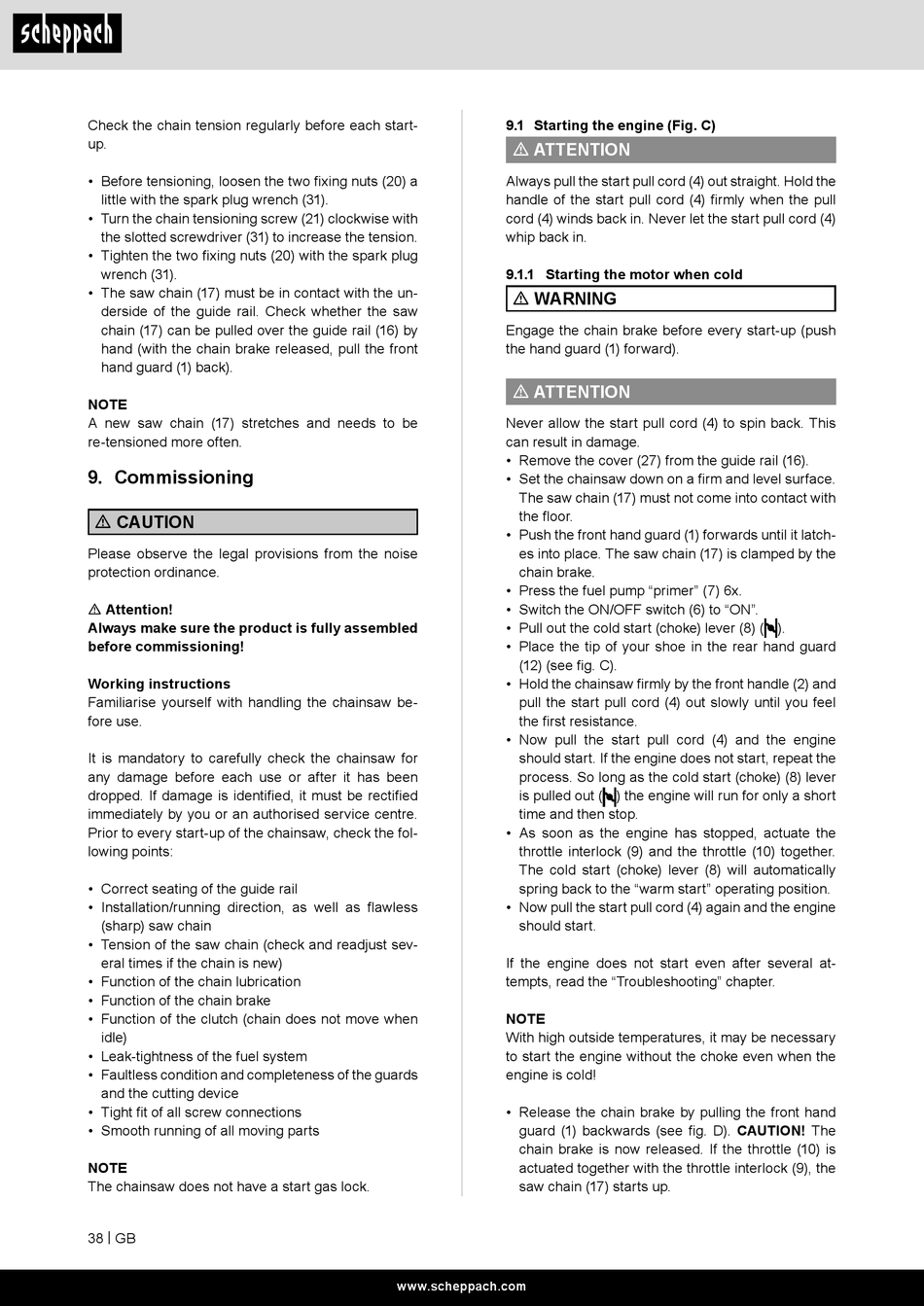

Check the chain tension regularly before each start-
up.
• Before tensioning, loosen the two fixing nuts (20) a
little with the spark plug wrench (31).
• Turn the chain tensioning screw (21) clockwise with
the slotted screwdriver (31) to increase the tension.
• Tighten the two fixing nuts (20) with the spark plug
wrench (31).
• The saw chain (17) must be in contact with the un-
derside of the guide rail. Check whether the saw
chain (17) can be pulled over the guide rail (16) by
hand (with the chain brake released, pull the front
hand guard (1) back).
NOTE
A new saw chain (17) stretches and needs to be
re-tensioned more often.
9. Commissioning
m CAUTION
Please observe the legal provisions from the noise
protection ordinance.
m Attention!
Always make sure the product is fully assembled
before commissioning!
Working instructions
Familiarise yourself with handling the chainsaw be-
fore use.
It is mandatory to carefully check the chainsaw for
any damage before each use or after it has been
dropped. If damage is identified, it must be rectified
immediately by you or an authorised service centre.
Prior to every start-up of the chainsaw, check the fol-
lowing points:
• Correct seating of the guide rail
• Installation/running direction, as well as flawless
(sharp) saw chain
• Tension of the saw chain (check and readjust sev-
eral times if the chain is new)
• Function of the chain lubrication
• Function of the chain brake
• Function of the clutch (chain does not move when
idle)
• Leak-tightness of the fuel system
• Faultless condition and completeness of the guards
and the cutting device
• Tight fit of all screw connections
• Smooth running of all moving parts
NOTE
The chainsaw does not have a start gas lock.
38 | GB
9.1 Starting the engine (Fig. C)
m ATTENTION
Always pull the start pull cord (4) out straight. Hold the
handle of the start pull cord (4) firmly when the pull
cord (4) winds back in. Never let the start pull cord (4)
whip back in.
9.1.1 Starting the motor when cold
m WARNING
Engage the chain brake before every start-up (push
the hand guard (1) forward).
m ATTENTION
Never allow the start pull cord (4) to spin back. This
can result in damage.
• Remove the cover (27) from the guide rail (16).
• Set the chainsaw down on a firm and level surface.
The saw chain (17) must not come into contact with
the floor.
• Push the front hand guard (1) forwards until it latch-
es into place. The saw chain (17) is clamped by the
chain brake.
• Press the fuel pump "primer" (7) 6x.
• Switch the ON/OFF switch (6) to "ON".
• Pull out the cold start (choke) lever (8) ( ).
• Place the tip of your shoe in the rear hand guard
(12) (see fig. C).
• Hold the chainsaw firmly by the front handle (2) and
pull the start pull cord (4) out slowly until you feel
the first resistance.
• Now pull the start pull cord (4) and the engine
should start. If the engine does not start, repeat the
process. So long as the cold start (choke) (8) lever
is pulled out ( ) the engine will run for only a short
time and then stop.
• As soon as the engine has stopped, actuate the
throttle interlock (9) and the throttle (10) together.
The cold start (choke) lever (8) will automatically
spring back to the "warm start" operating position.
• Now pull the start pull cord (4) again and the engine
should start.
If the engine does not start even after several at-
tempts, read the "Troubleshooting" chapter.
NOTE
With high outside temperatures, it may be necessary
to start the engine without the choke even when the
engine is cold!
• Release the chain brake by pulling the front hand
guard (1) backwards (see fig. D). CAUTION! The
chain brake is now released. If the throttle (10) is
actuated together with the throttle interlock (9), the
saw chain (17) starts up.
