• Note the angles and dimensions specified below.
If the saw chain (17) is not properly sharpened or
the depth gauge is too small, there is a higher risk
of kick-back effects and the resulting injuries! The
saw chain (17) cannot be fixed on the guide bar
(16). It is therefore best to remove the saw chain
(17) from the guide bar (16) and then sharpen it.
• Select a sharpening tool that is suitable for the
chain pitch.
The chain pitch (e.g. 3/8") is marked in the depth
gauge of each blade.
Only use files specifically for saw chains!
Other files have the wrong shape and the wrong
edge. Select the diameter of the file according to your
chain pitch. Be sure to also note the following angles
when sharpening the cutting links.

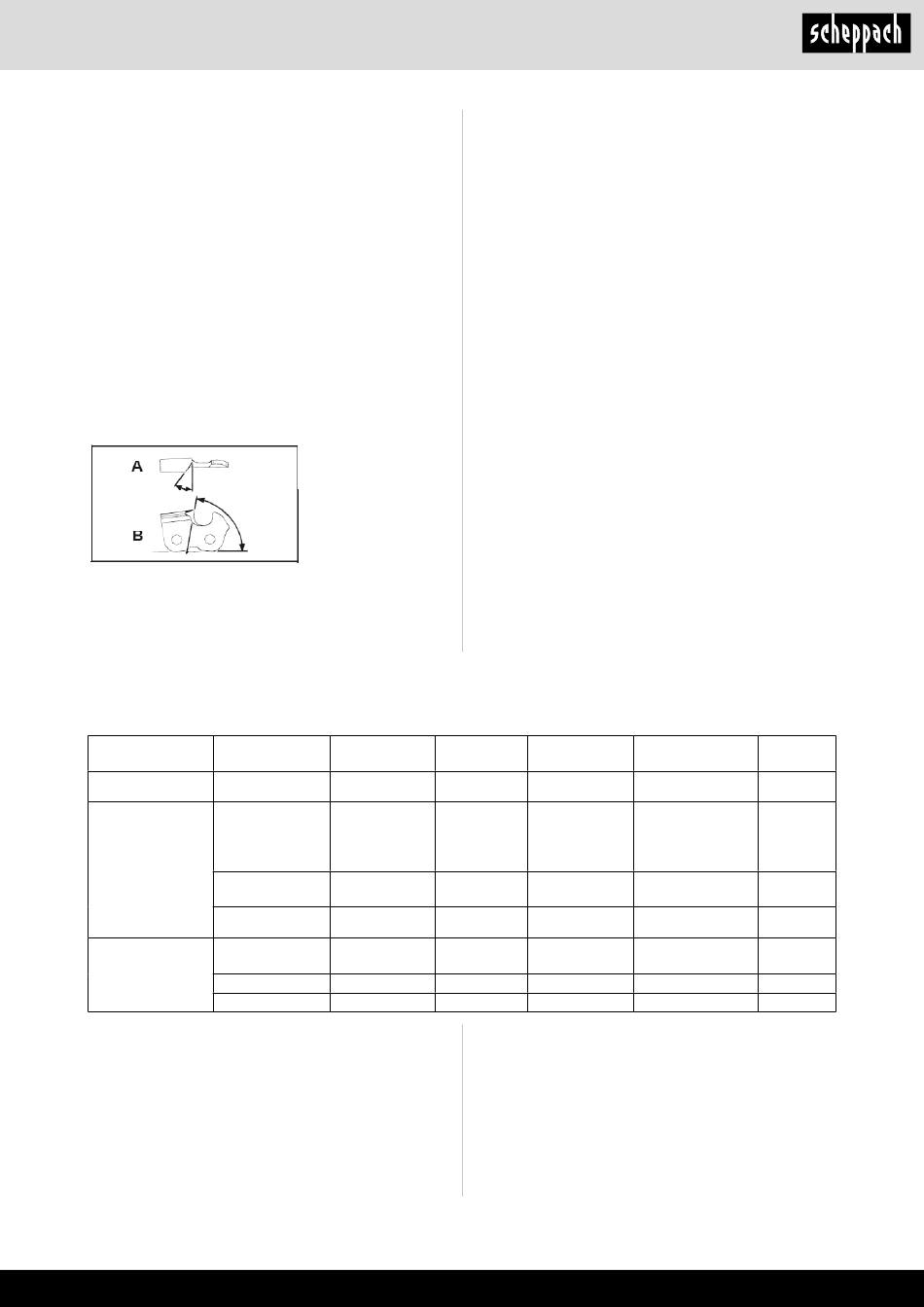

A = file angle
B = angle of the side plate
13.9 Maintenance intervals
The information given here refers to normal operating conditions. In difficult conditions, such as heavy dust generation
and longer daily working hours, the specified intervals should be shortened accordingly.
Device part
Action
Chain lubrication
Check
Saw chain (17)
Check and
pay attention
to the state of
sharpness
Check chain
tension
Sharpen
Guide rail (16)
Check (wear,
damage)
Clean
Replace
13.10
Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: Saw chain, guide rail, chain wheel,
chain oil, engine oil, claw stop, chain catcher, spark
plug, air filter, fuel filter, chain oil filter
Furthermore, the angle must be maintained for all cut-
ting links.
If the angles are uneven, the saw chain (17) will run
erratically, wear out quickly and break prematurely.
Since these requirements can only be met with suffi-
cient and regular practice:
• Use a file holder.
• A file holder must be used when sharpening the
1. Hold the file horizontally (at the correct angle to
2. Always file the cutting link from the inside out.
3. The file only sharpens as it moves forward. Lift
4. Do not touch the drive links or fastening links with
5. Turn the file regularly to avoid wear on one side.
6. Use a piece of hard wood to remove the burr from
All cutting links must have the same length, otherwise
they will also be of different heights.
This causes the saw chain (17) to run erratically and
increases the danger of breaking.
Before
Weekly
starting work
X
X
X
X
X
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from
our service centre. To do this, scan the QR code on
the cover page.
www.scheppach.com
saw chain (17) by hand. The correct filing angles
are marked on it.
the guide bar (16) and file according to the angle
marking on the file holder. Support the file holder
on the top plate and the depth limiter.
the file off as you move backwards.
the file.
cutting edges.
In the event of
In the event of
malfunctions
damage
X
X
If
necessary
X
X
