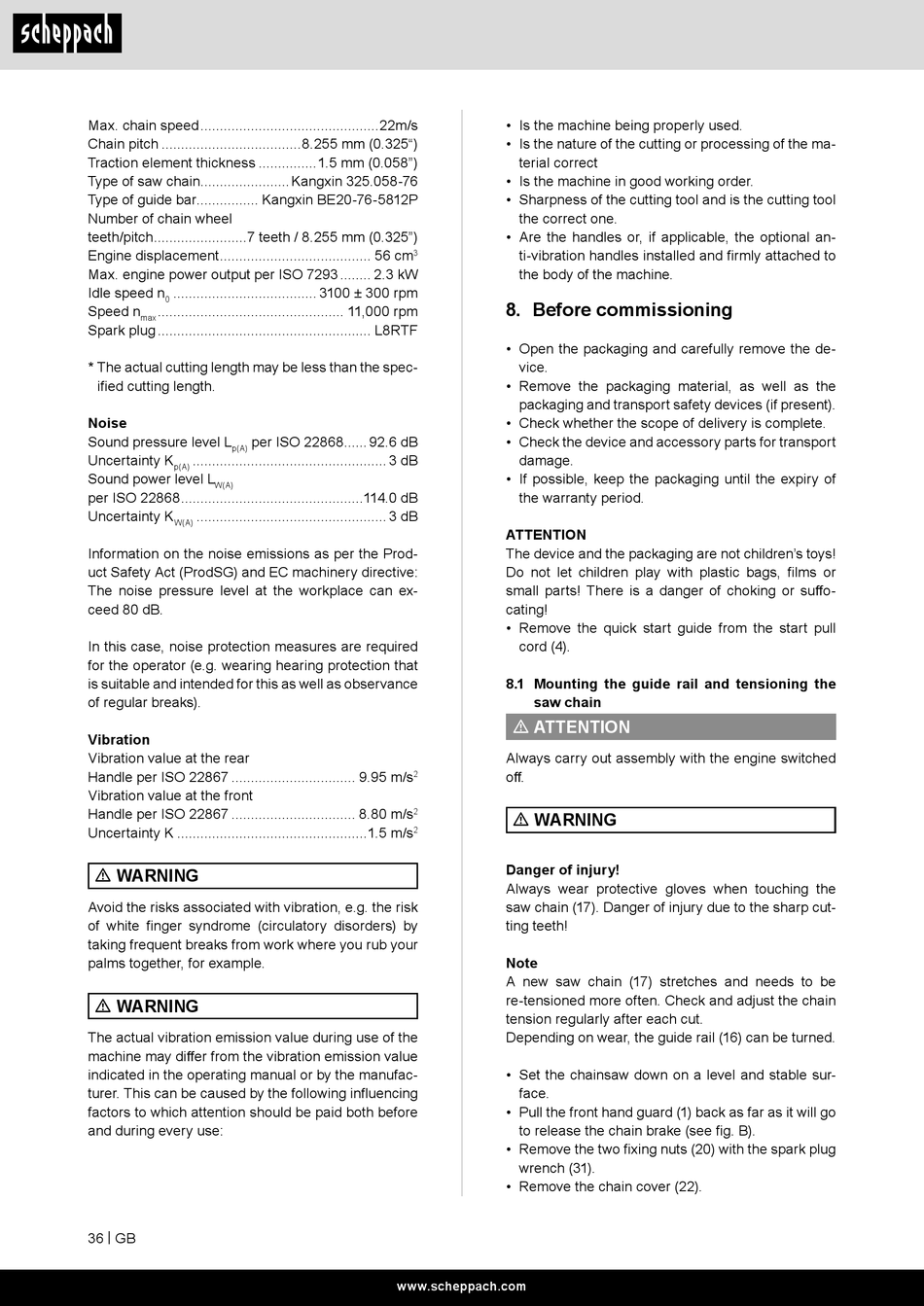

Max. chain speed ..............................................22m/s
Chain pitch ....................................8.255 mm (0.325")
Traction element thickness ...............1.5 mm (0.058")
Type of saw chain ....................... Kangxin 325.058-76
Type of guide bar ................ Kangxin BE20-76-5812P
Number of chain wheel
teeth/pitch ........................7 teeth / 8.255 mm (0.325")
Engine displacement ....................................... 56 cm
Max. engine power output per ISO 7293 ........ 2.3 kW
Idle speed n
..................................... 3100 ± 300 rpm
0
Speed n
................................................ 11,000 rpm
max
Spark plug ....................................................... L8RTF
* The actual cutting length may be less than the spec-
ified cutting length.
Noise
Sound pressure level L
per ISO 22868 ...... 92.6 dB
p(A)
Uncertainty K
.................................................. 3 dB
p(A)
Sound power level L
W(A)
per ISO 22868 ...............................................114.0 dB
Uncertainty K
................................................. 3 dB
W(A)
Information on the noise emissions as per the Prod-
uct Safety Act (ProdSG) and EC machinery directive:
The noise pressure level at the workplace can ex-
ceed 80 dB.
In this case, noise protection measures are required
for the operator (e.g. wearing hearing protection that
is suitable and intended for this as well as observance
of regular breaks).
Vibration
Vibration value at the rear
Handle per ISO 22867 ................................ 9.95 m/s
Vibration value at the front
Handle per ISO 22867 ................................ 8.80 m/s
Uncertainty K .................................................1.5 m/s
m WARNING
Avoid the risks associated with vibration, e.g. the risk
of white finger syndrome (circulatory disorders) by
taking frequent breaks from work where you rub your
palms together, for example.
m WARNING
The actual vibration emission value during use of the
machine may differ from the vibration emission value
indicated in the operating manual or by the manufac-
turer. This can be caused by the following influencing
factors to which attention should be paid both before
and during every use:
36 | GB
• Is the machine being properly used.
• Is the nature of the cutting or processing of the ma-
terial correct
• Is the machine in good working order.
• Sharpness of the cutting tool and is the cutting tool
the correct one.
• Are the handles or, if applicable, the optional an-
ti-vibration handles installed and firmly attached to
3
the body of the machine.
8. Before commissioning
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the expiry of
the warranty period.
ATTENTION
The device and the packaging are not children's toys!
Do not let children play with plastic bags, films or
small parts! There is a danger of choking or suffo-
cating!
• Remove the quick start guide from the start pull
cord (4).
8.1 Mounting the guide rail and tensioning the
saw chain
m ATTENTION
Always carry out assembly with the engine switched
off.
2
2
m WARNING
2
Danger of injury!
Always wear protective gloves when touching the
saw chain (17). Danger of injury due to the sharp cut-
ting teeth!
Note
A new saw chain (17) stretches and needs to be
re-tensioned more often. Check and adjust the chain
tension regularly after each cut.
Depending on wear, the guide rail (16) can be turned.
• Set the chainsaw down on a level and stable sur-
face.
• Pull the front hand guard (1) back as far as it will go
to release the chain brake (see fig. B).
• Remove the two fixing nuts (20) with the spark plug
wrench (31).
• Remove the chain cover (22).
