Elektrische Installation
8.13.5
Pinbelegung SD-/MMC-Karte
Tabelle 47:
Pinbelegung: SD-Karte
Pin Nr.
Bezeichnung
1
DATA3/CS
2
CMD/DI
3
Vss1
4
Vcc
5
CLK
6
Vss2
7
DAT0/DO
8
DAT1
9
DAT2
Tabelle 48:
Pinbelegung: MMC-Karte
Pin Nr.
Bezeichnung
1
RES/CS
2
CMD/DI
3
Vss1
4
Vcc
5
CLK
6
Vss2
7
DAT/DO

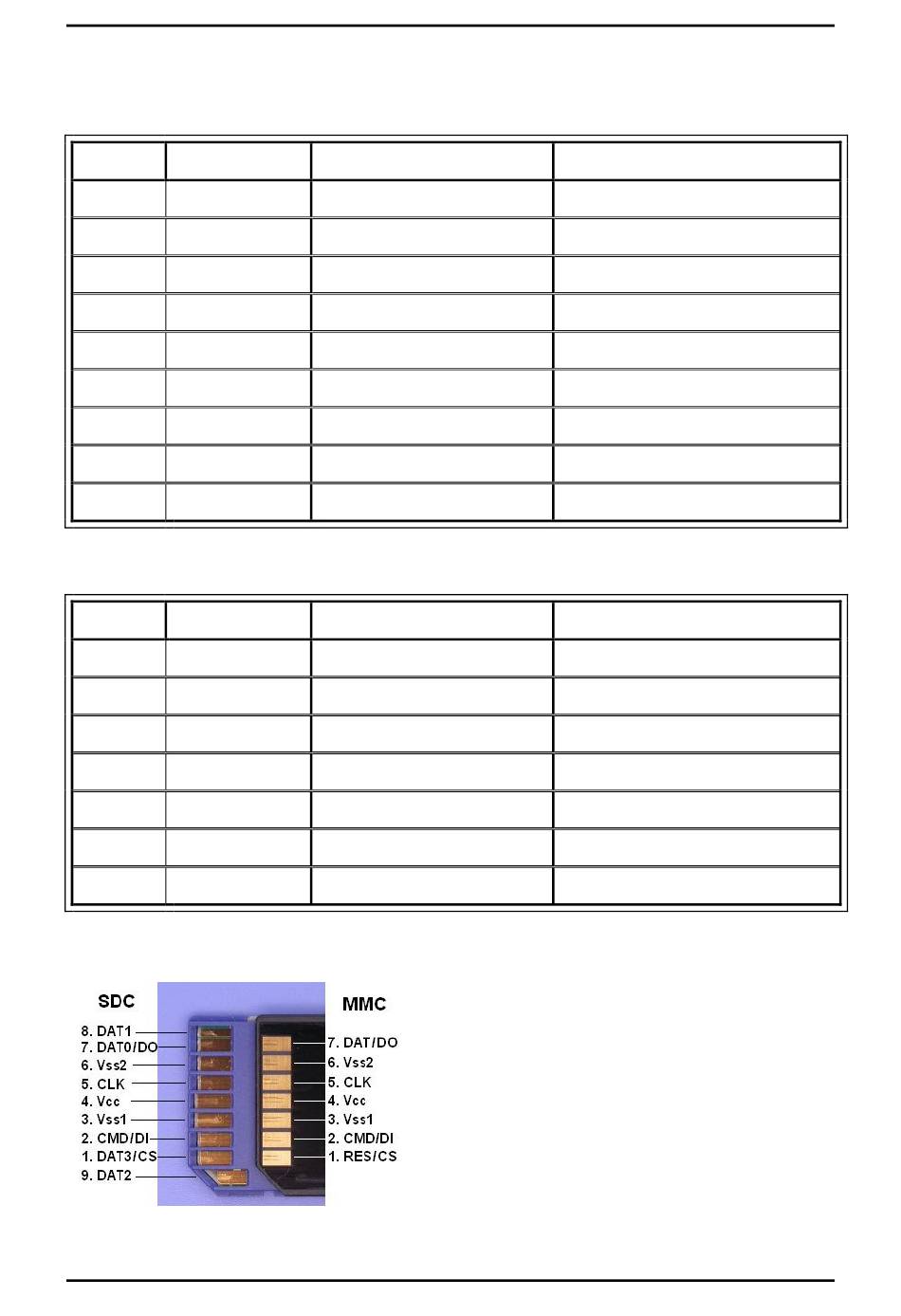

Abbildung 29: Pinbelegung: SD-/MMC-Karte
Produkthandbuch "Servopositionierregler ARS 2300 FS"
SD Mode
Data Line 3 (Bit 3)
Command/Response
Supply Voltage Ground
Supply Voltage
Clock
Supply Voltage Ground
Data Line 0 (Bit 0)
Data Line 1 (Bit 1)
Data Line 2 (Bit 2)
SD Mode
Not connected or Always „1"
Command/Response
Supply Voltage Ground
Supply Voltage
Clock
Supply Voltage Ground
Data 0
SPI Mode
Chip Select
Host to Card Commands and Data
Supply Voltage Ground
Supply Voltage
Clock
Supply Voltage Ground
Card to Host Data and Status
reserved
reserved
SPI Mode
Chip Select
Host to Card Commands and Data
Supply Voltage Ground
Supply Voltage
Clock
Supply Voltage Ground
Card to Host Data and Status
