Instruction manual
4

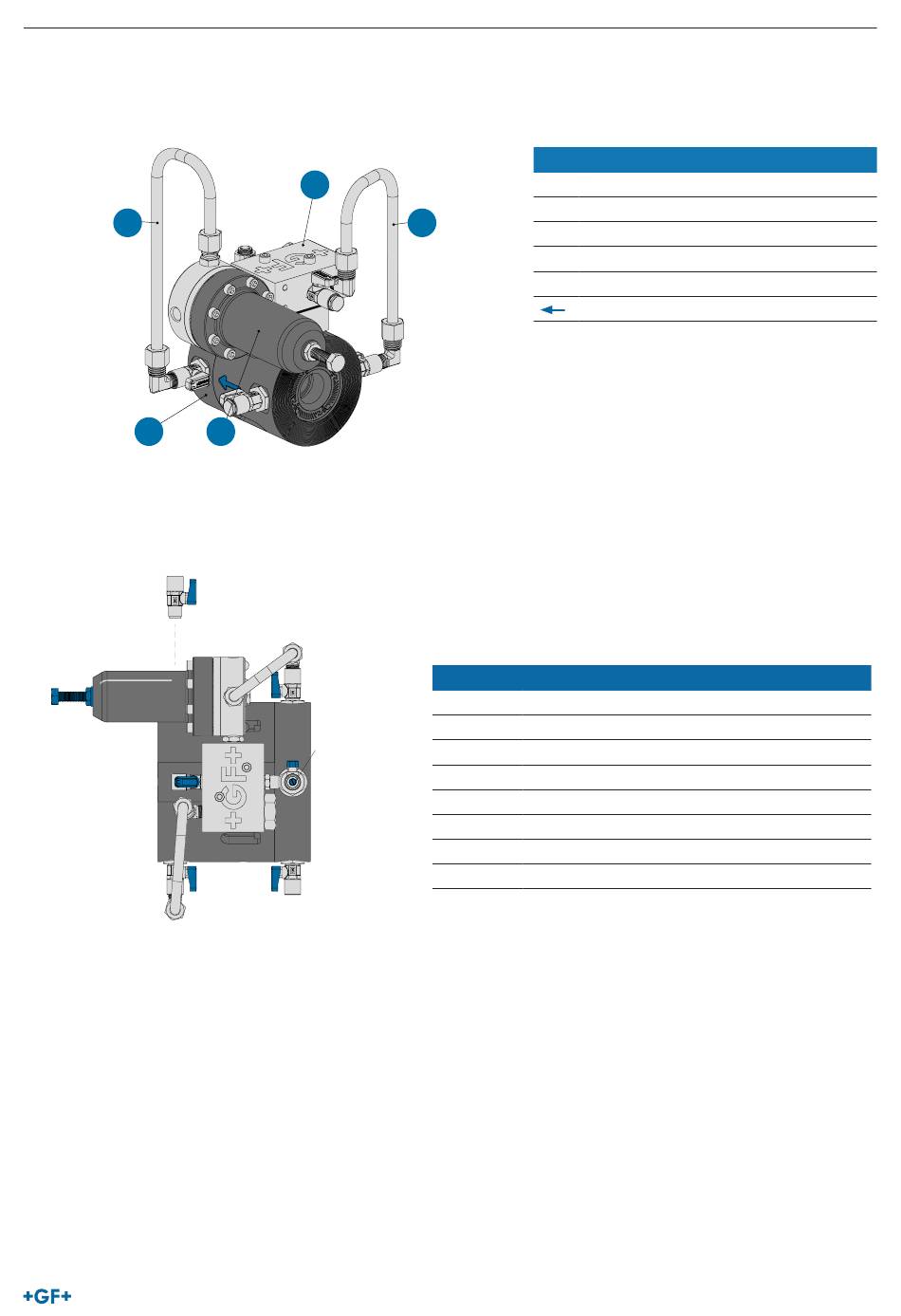

Design and function

4.1

Subassemblies

5
1
4.2

Designations of the valves

KH6
AS
KH4
KH1
2
3
KH2
DV
KH3
KH5
No. Designation
1 Main body
2 Control block
4
3 Pilot valve
4 Inlet control line
5 Outlet control line
Direction of flow medium
Ball valve Designation
KH1 Ball valve inlet
KH2 Ball valve outlet
KH3 Ball valve control chamber
KH4 Ball valve control block
KH5 Ball valve outlet side (manometer connection)
KH6 Ball valve inlet side (manometer connection)
DV Damping valve
AS Adjusting screw pilot valve
NeoFlow pressure reducing valve
