Instruction manual
5.

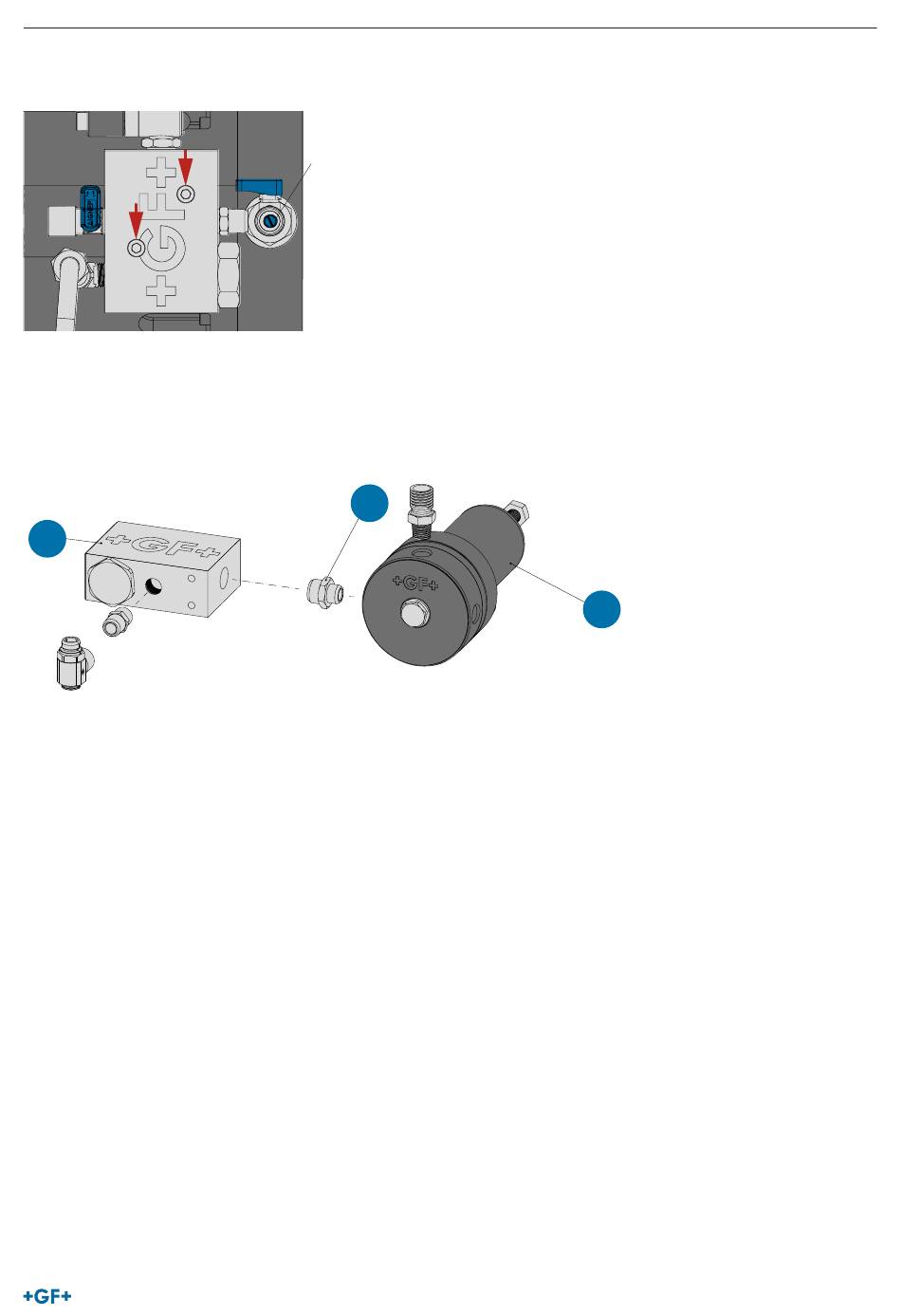

Remove both bolts from the control block and lift the control system off the main body. Notice: The bolts are located underneath
the "+GF+" sticker. The film can be penetrated by a pointy object, e.g. a screwdriver.
6.
Loosen the transition nipple (19) between the control block (13) and the pilot valve (1) to separate the two subassemblies. Notice:
The transition nipples are glued in with sealing thread glue. After opening, the threads must be thoroughly cleaned and coated
with sealing drinking water-safe thread glue during assembly, e.g. Weiconlock AN 302-43, Loctite 577. Observe the instructions
of the thread glue manufacturer.
13
KH2
DV
KH3
KH5
19
NeoFlow pressure reducing valve
1
29
