NeoFlow pressure reducing valve

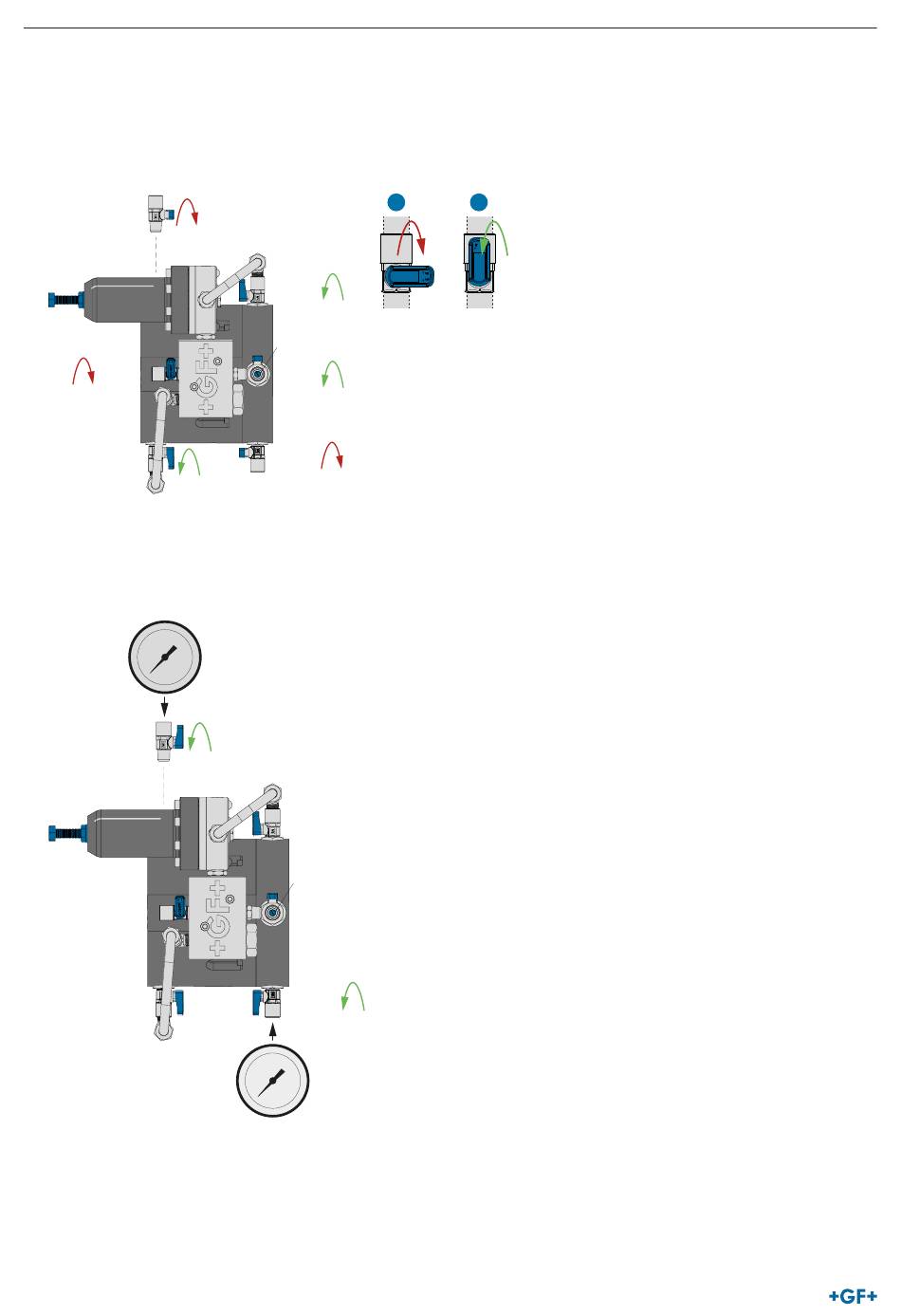

4. Open ball valves KH1, KH2 and KH3 and make sure that KH4, KH5, and KH6 are closed.
Position 1: Ball valve KH closed
Position 2: Ball valve KH open
KH6
AS
KH4
KH1
5. To allow monitoring of inlet pressure P1 and outlet pressure P2, it is recommended to connect a manometer to the ball valves
KH6 (inlet pressure P1) and KH5 (outlet pressure P2).
► Connect the manometer and then open KH5 and KH6.
► If no manometers are connected, keep KH5 and KH6 in the closed position.
