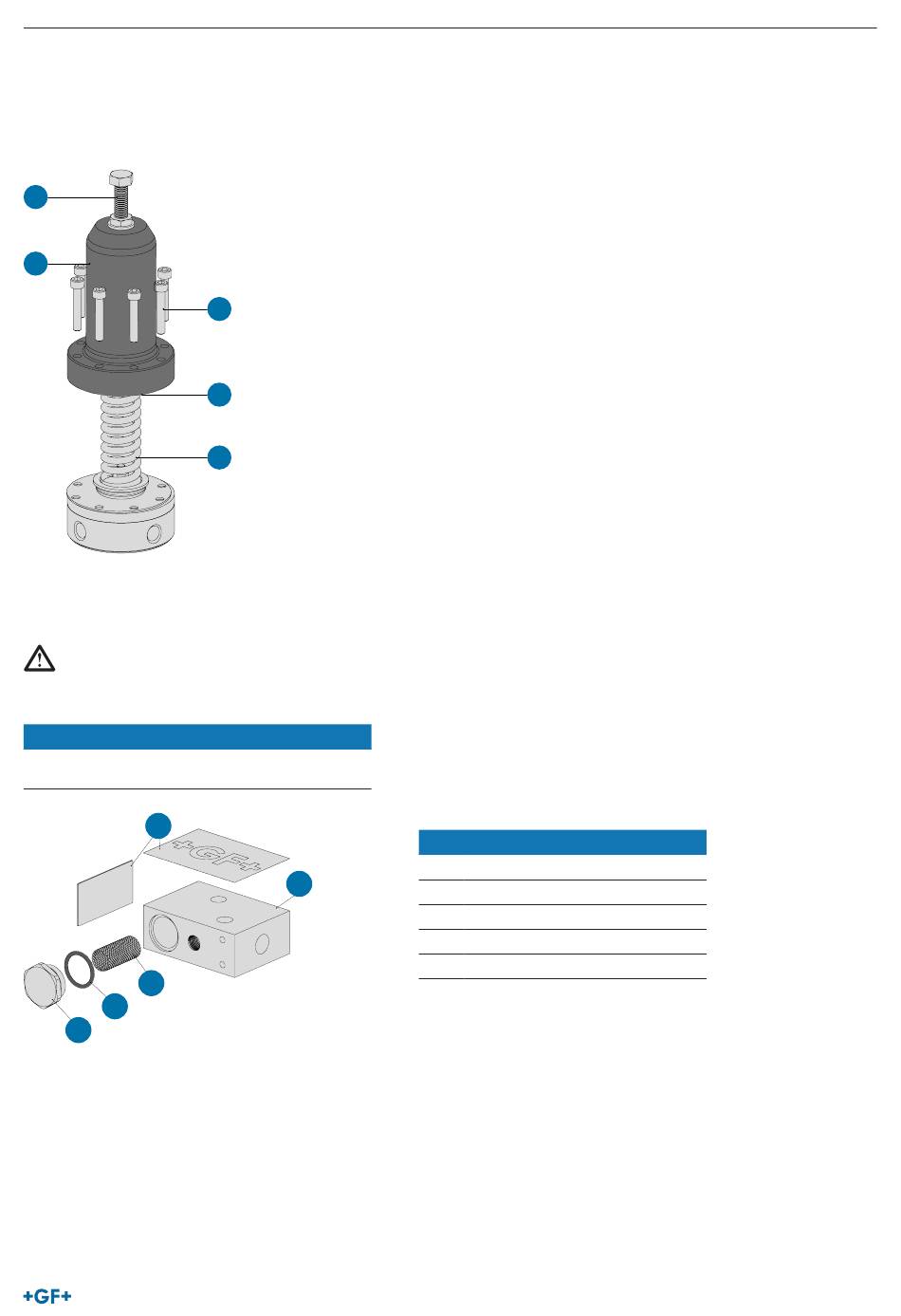

Assembly
1. Assembly is the reverse process. On reassembly, lightly lubricate all sliding components (spring guide) and seals with a drin-
king-water safe lubricant such as Molykote 111 or Klübersynth UH1 64-2403.
2. Tighten the 8 bolts for the spring case (4) crosswise to the torque value recommended on the nameplate using a torque wrench.
1
4
7.5.2 Control block
ATTENTION!
Damage during disassembly or assembly can impair the functionality of the NeoFlow pressure reducing valve.
► Handle components with care.
Code Designation
173021001 NeoFlow Control Block
Contains: (1), (2), (3), (4) and (5)
2
3
4
5
Dismantling
1. Unscrew the sealing plug (5) and remove the o-ring (4) and the filter (3).
2. Clean the filter (3) under clear water, check for wear, and replace if required.
3. Check the o-ring (4) for wear and replace, if required.
Assembly
1. Insert the filter (3) into the control block.
2. Lubricate the o-ring (4) with drinking-water safe lubricant such as Molykote 111 or Klübersynth UH1 64-2403 and mount with
the sealing plug (5) to the control block main body (1). Ensure the correct positioning of the o-ring (4).
5
6
7
1
No. Designation
1 Control block main body
2 Label
3 Filter
4 O-ring sealing plug
5 Filter sealing plug
