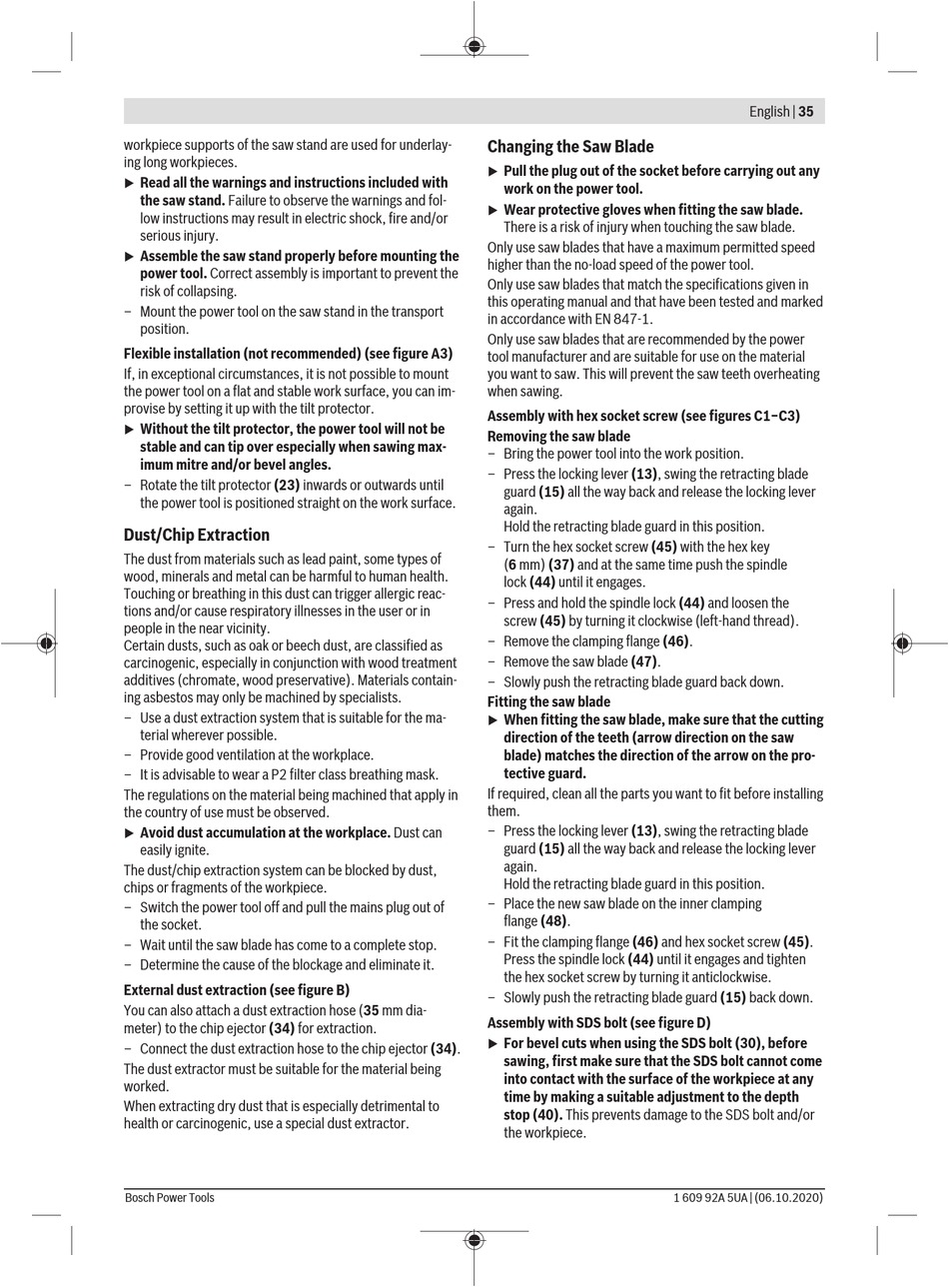

workpiece supports of the saw stand are used for underlay-
ing long workpieces.
Read all the warnings and instructions included with
u
the saw stand. Failure to observe the warnings and fol-
low instructions may result in electric shock, fire and/or
serious injury.
Assemble the saw stand properly before mounting the
u
power tool. Correct assembly is important to prevent the
risk of collapsing.
– Mount the power tool on the saw stand in the transport
position.
Flexible installation (not recommended) (see figure A3)
If, in exceptional circumstances, it is not possible to mount
the power tool on a flat and stable work surface, you can im-
provise by setting it up with the tilt protector.
Without the tilt protector, the power tool will not be
u
stable and can tip over especially when sawing max-
imum mitre and/or bevel angles.
– Rotate the tilt protector (23) inwards or outwards until
the power tool is positioned straight on the work surface.

Dust/Chip Extraction

The dust from materials such as lead paint, some types of
wood, minerals and metal can be harmful to human health.
Touching or breathing in this dust can trigger allergic reac-
tions and/or cause respiratory illnesses in the user or in
people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as
carcinogenic, especially in conjunction with wood treatment
additives (chromate, wood preservative). Materials contain-
ing asbestos may only be machined by specialists.
– Use a dust extraction system that is suitable for the ma-
terial wherever possible.
– Provide good ventilation at the workplace.
– It is advisable to wear a P2 filter class breathing mask.
The regulations on the material being machined that apply in
the country of use must be observed.
Avoid dust accumulation at the workplace. Dust can
u
easily ignite.
The dust/chip extraction system can be blocked by dust,
chips or fragments of the workpiece.
– Switch the power tool off and pull the mains plug out of
the socket.
– Wait until the saw blade has come to a complete stop.
– Determine the cause of the blockage and eliminate it.
External dust extraction (see figure B)
You can also attach a dust extraction hose (35 mm dia-
meter) to the chip ejector (34) for extraction.
– Connect the dust extraction hose to the chip ejector (34).
The dust extractor must be suitable for the material being
worked.
When extracting dry dust that is especially detrimental to
health or carcinogenic, use a special dust extractor.
