17.10.6 Anschluss Automotive Ethernet (AE)

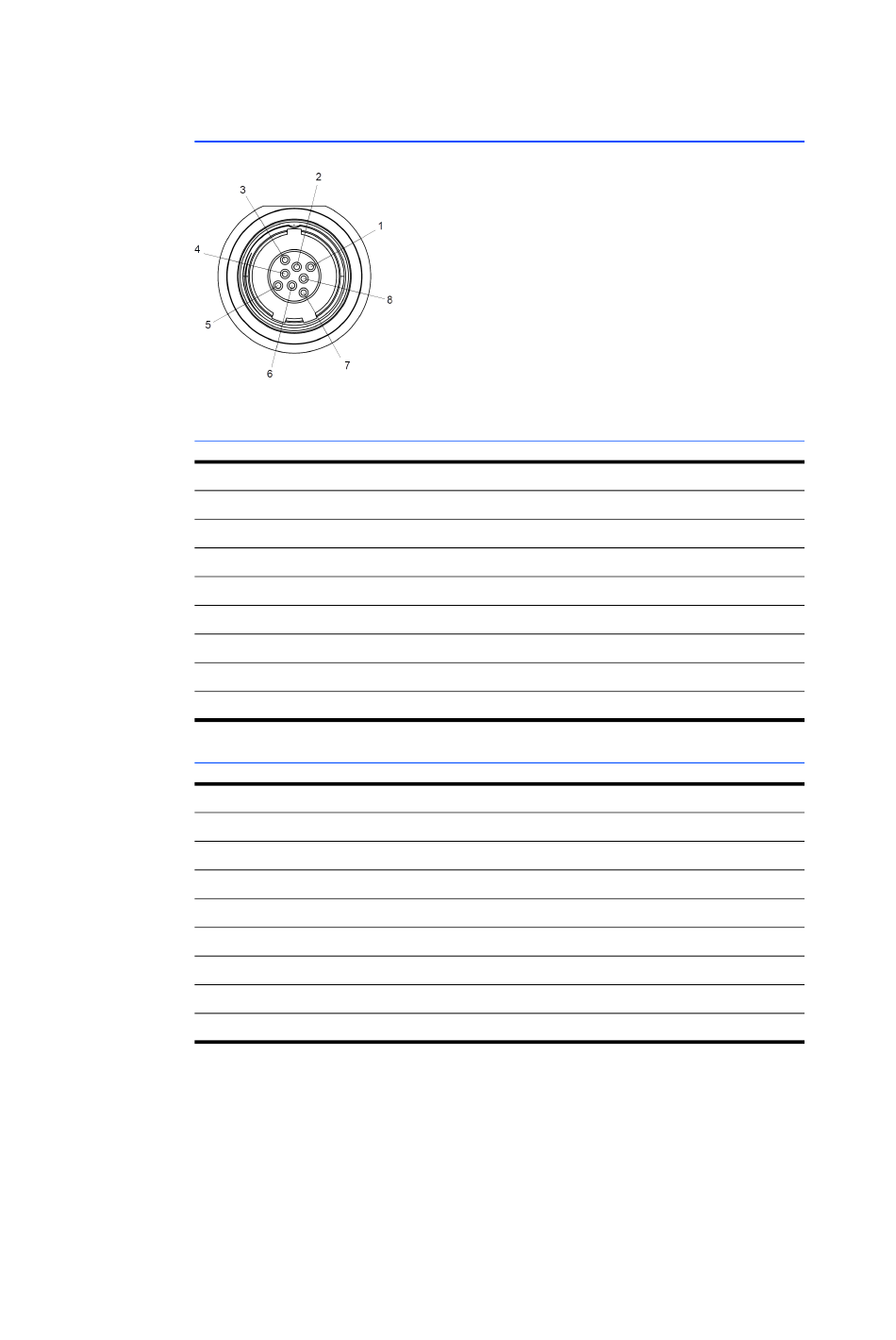

Abb. 17-8 Anschluss Automotive Ethernet (AE)

ES882.1
Pin
1
2
3
4
5
6
7
8
ES886.1
Pin
1
2
3
4
5
6
7
8
ES800 System - Benutzerhandbuch
Signal Bedeutung

AE1+

Automotive Ethernet, Kanal 1, BI_DA+
AE1- Automotive Ethernet, Kanal 1, BI_DA-

AE2+

Automotive Ethernet, Kanal 2, BI_DA+
AE2- Automotive Ethernet, Kanal 2, BI_DA-

AE3+

Automotive Ethernet, Kanal 3, BI_DA+
AE3- Automotive Ethernet, Kanal 3, BI_DA-
N.C. Nicht verbunden
N.C. Nicht verbunden
Signal Bedeutung
AE1+ Automotive Ethernet, Kanal 1, BI_DA+
AE1- Automotive Ethernet, Kanal 1, BI_DA-
AE2+ Automotive Ethernet, Kanal 2, BI_DA+
AE2- Automotive Ethernet, Kanal 2, BI_DA-
AE3+ Automotive Ethernet, Kanal 3, BI_DA+
AE3- Automotive Ethernet, Kanal 3, BI_DA-
AE4+ Automotive Ethernet, Kanal 4, BI_DA+
AE4- Automotive Ethernet, Kanal 4, BI_DA-
