7.6

Turn of the display

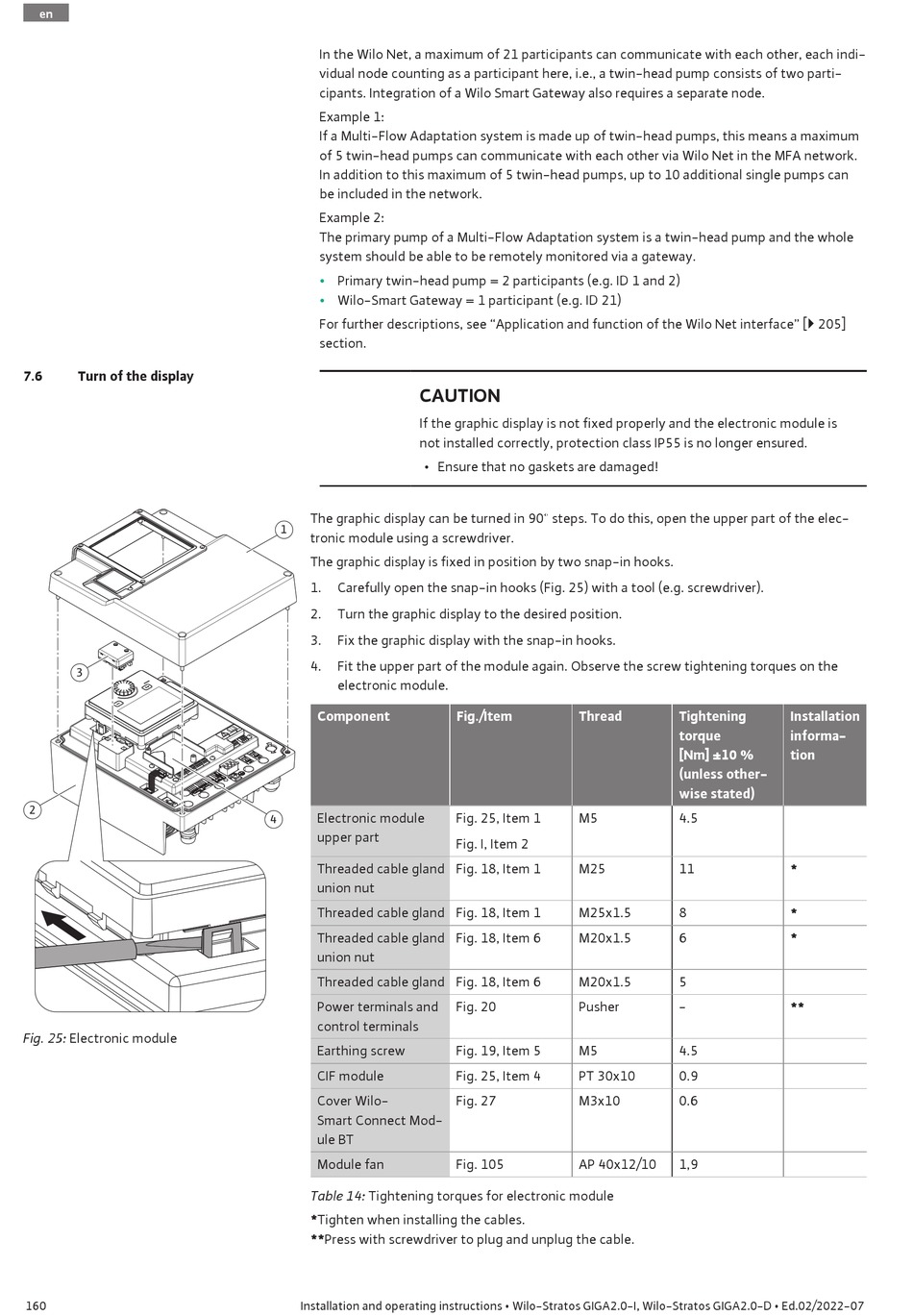

Fig. 25: Electronic module
160
In the Wilo Net, a maximum of 21 participants can communicate with each other, each indi-
vidual node counting as a participant here, i.e., a twin-head pump consists of two parti-
cipants. Integration of a Wilo Smart Gateway also requires a separate node.
Example 1:
If a Multi-Flow Adaptation system is made up of twin-head pumps, this means a maximum
of 5 twin-head pumps can communicate with each other via Wilo Net in the MFA network.
In addition to this maximum of 5 twin-head pumps, up to 10 additional single pumps can
be included in the network.
Example 2:
The primary pump of a Multi-Flow Adaptation system is a twin-head pump and the whole
system should be able to be remotely monitored via a gateway.
• Primary twin-head pump = 2 participants (e.g. ID 1 and 2)
• Wilo-Smart Gateway = 1 participant (e.g. ID 21)
For further descriptions, see "Application and function of the Wilo Net interface" [} 205]
section.
CAUTION
If the graphic display is not fixed properly and the electronic module is
not installed correctly, protection class IP55 is no longer ensured.
• Ensure that no gaskets are damaged!
The graphic display can be turned in 90° steps. To do this, open the upper part of the elec-
tronic module using a screwdriver.
The graphic display is fixed in position by two snap-in hooks.
1. Carefully open the snap-in hooks (Fig. 25) with a tool (e.g. screwdriver).
2. Turn the graphic display to the desired position.
3. Fix the graphic display with the snap-in hooks.
4. Fit the upper part of the module again. Observe the screw tightening torques on the
electronic module.
Component Fig./Item
Electronic module Fig. 25, Item 1
upper part
Fig. I, Item 2
Threaded cable gland Fig. 18, Item 1
union nut
Threaded cable gland Fig. 18, Item 1
Threaded cable gland Fig. 18, Item 6
union nut
Threaded cable gland Fig. 18, Item 6
Power terminals and Fig. 20
control terminals
Earthing screw Fig. 19, Item 5
CIF module Fig. 25, Item 4
Cover Wilo- Fig. 27
Smart Connect Mod-
ule BT
Module fan Fig. 105
Table 14: Tightening torques for electronic module
*Tighten when installing the cables.
**Press with screwdriver to plug and unplug the cable.
Installation and operating instructions • Wilo-Stratos GIGA2.0-I, Wilo-Stratos GIGA2.0-D • Ed.02/2022-07
Thread Tightening
torque
[Nm] ±10 %
(unless other-
wise stated)
M5 4.5
M25 11
M25x1.5 8
M20x1.5 6
M20x1.5 5
Pusher -
M5 4.5
PT 30x10 0.9
M3x10 0.6
AP 40x12/10 1,9
Installation
informa-
tion
*
*
*
**
