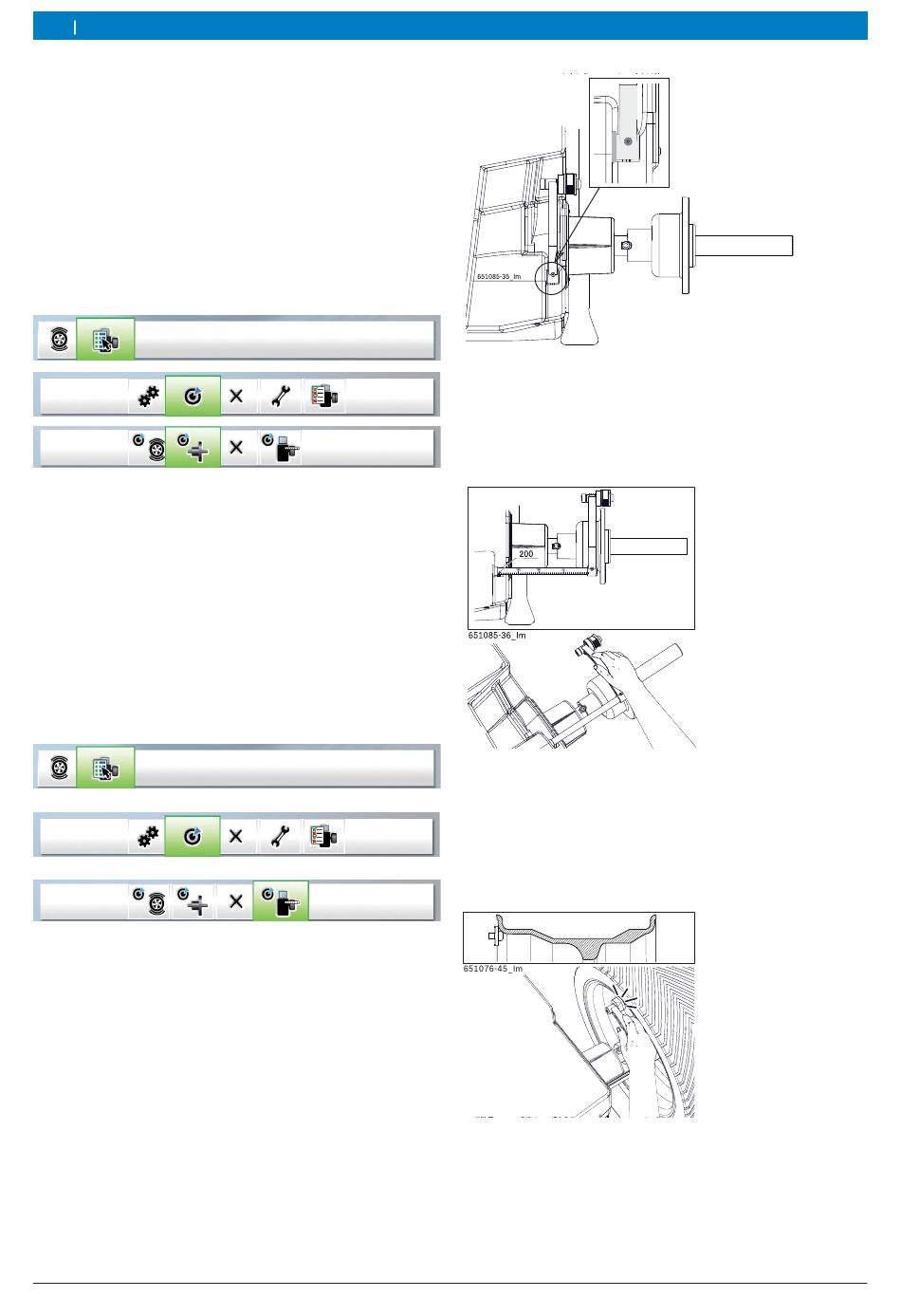

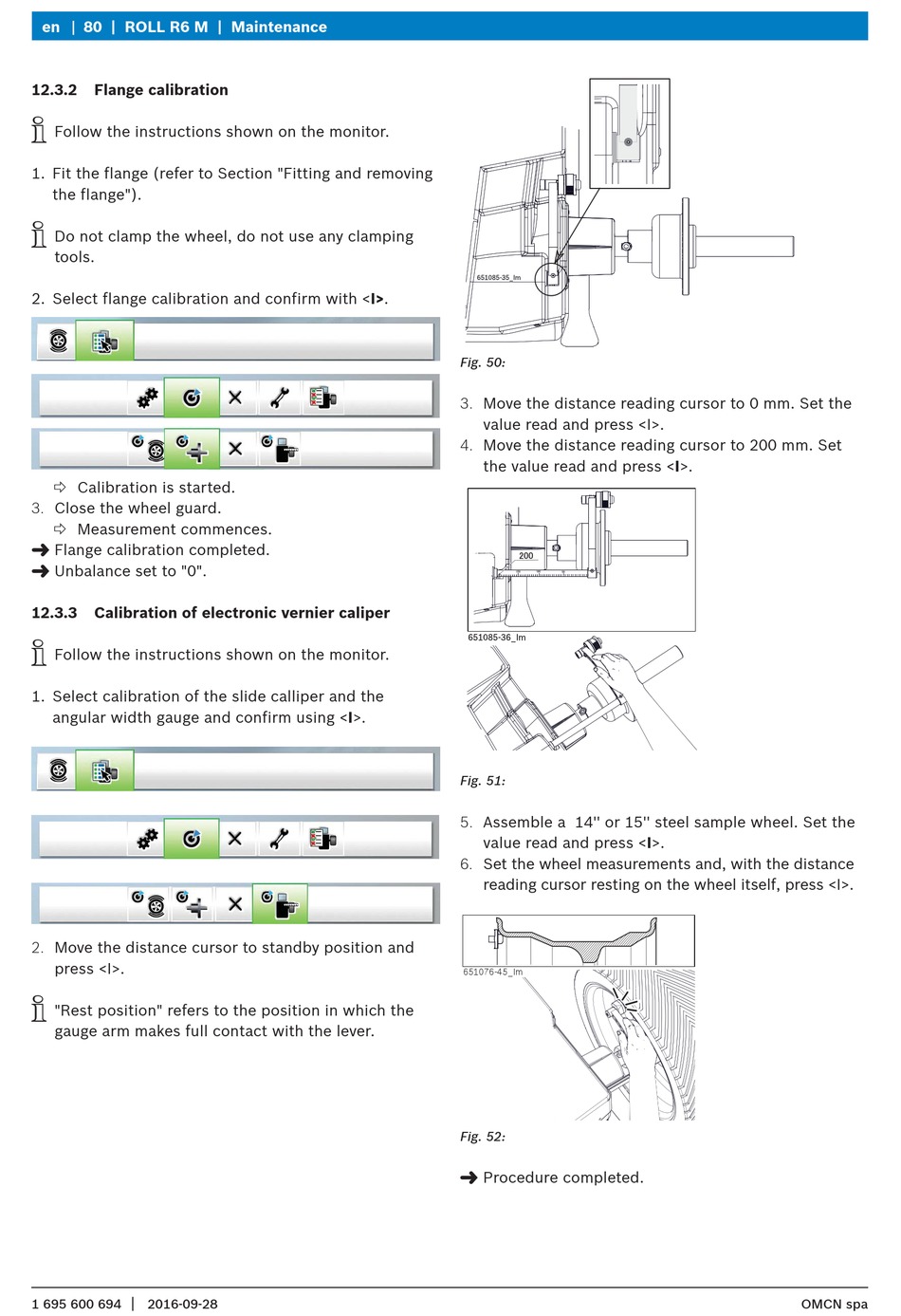

en 80 | ROLL R6 M | Maintenance
12.3.2 Flange calibration
i
Follow the instructions shown on the monitor.
1. Fit the flange (refer to Section "Fitting and removing
the flange").
i
Do not clamp the wheel, do not use any clamping
tools.
2. Select flange calibration and confirm with <I>.
« Calibration is started.
3. Close the wheel guard.
« Measurement commences.
"
Flange calibration completed.
"
Unbalance set to "0".
12.3.3 Calibration of electronic vernier caliper
i
Follow the instructions shown on the monitor.
1. Select calibration of the slide calliper and the
angular width gauge and confirm using <I>.
2. Move the distance cursor to standby position and
press <I>.
i
"Rest position" refers to the position in which the
gauge arm makes full contact with the lever.
|
1 695 600 694 2016-09-28
Fig. 50:
3. Move the distance reading cursor to 0 mm. Set the
value read and press <I>.
4. Move the distance reading cursor to 200 mm. Set
the value read and press <I>.
xxx
Fig. 51:
5. Assemble a 14'' or 15'' steel sample wheel. Set the
value read and press <I>.
6. Set the wheel measurements and, with the distance
reading cursor resting on the wheel itself, press <I>.
Fig. 52:
"
Procedure completed.
