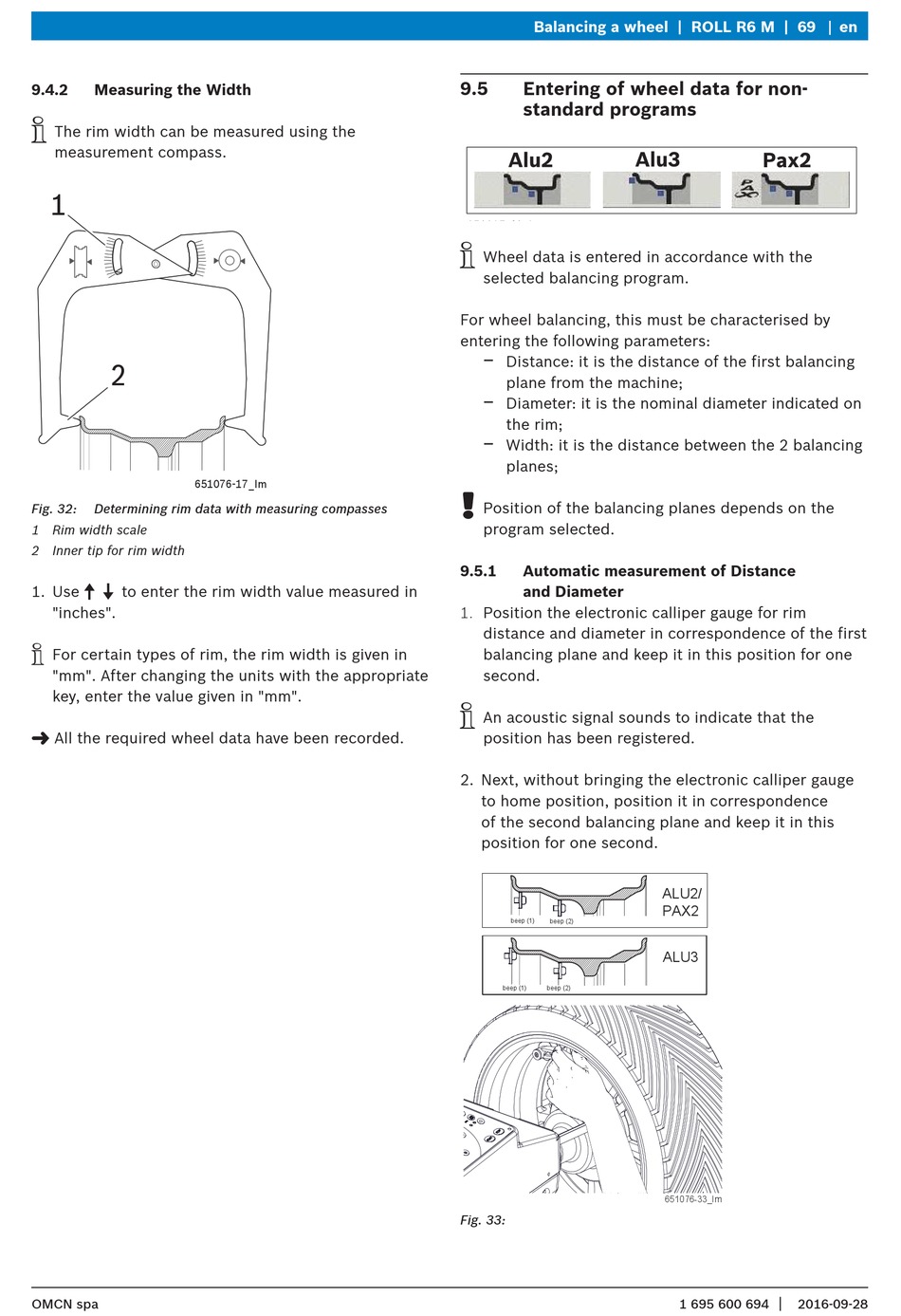

9.4.2 Measuring the Width
i
The rim width can be measured using the
measurement compass.
Fig. 32: Determining rim data with measuring compasses
1 Rim width scale
2 Inner tip for rim width
1. Use o u to enter the rim width value measured in
"inches".
i For certain types of rim, the rim width is given in
"mm". After changing the units with the appropriate
key, enter the value given in "mm".
"
All the required wheel data have been recorded.
OMCN spa
Balancing a wheel | ROLL R6 M | 69
9.5 Entering of wheel data for non-
standard programs
i
Wheel data is entered in accordance with the
selected balancing program.
For wheel balancing, this must be characterised by
entering the following parameters:
$
Distance: it is the distance of the first balancing
plane from the machine;
$
Diameter: it is the nominal diameter indicated on
the rim;
$
Width: it is the distance between the 2 balancing
planes;
!
Position of the balancing planes depends on the
program selected.
9.5.1 Automatic measurement of Distance
and Diameter
1. Position the electronic calliper gauge for rim
distance and diameter in correspondence of the first
balancing plane and keep it in this position for one
second.
i
An acoustic signal sounds to indicate that the
position has been registered.
2. Next, without bringing the electronic calliper gauge
to home position, position it in correspondence
of the second balancing plane and keep it in this
position for one second.
