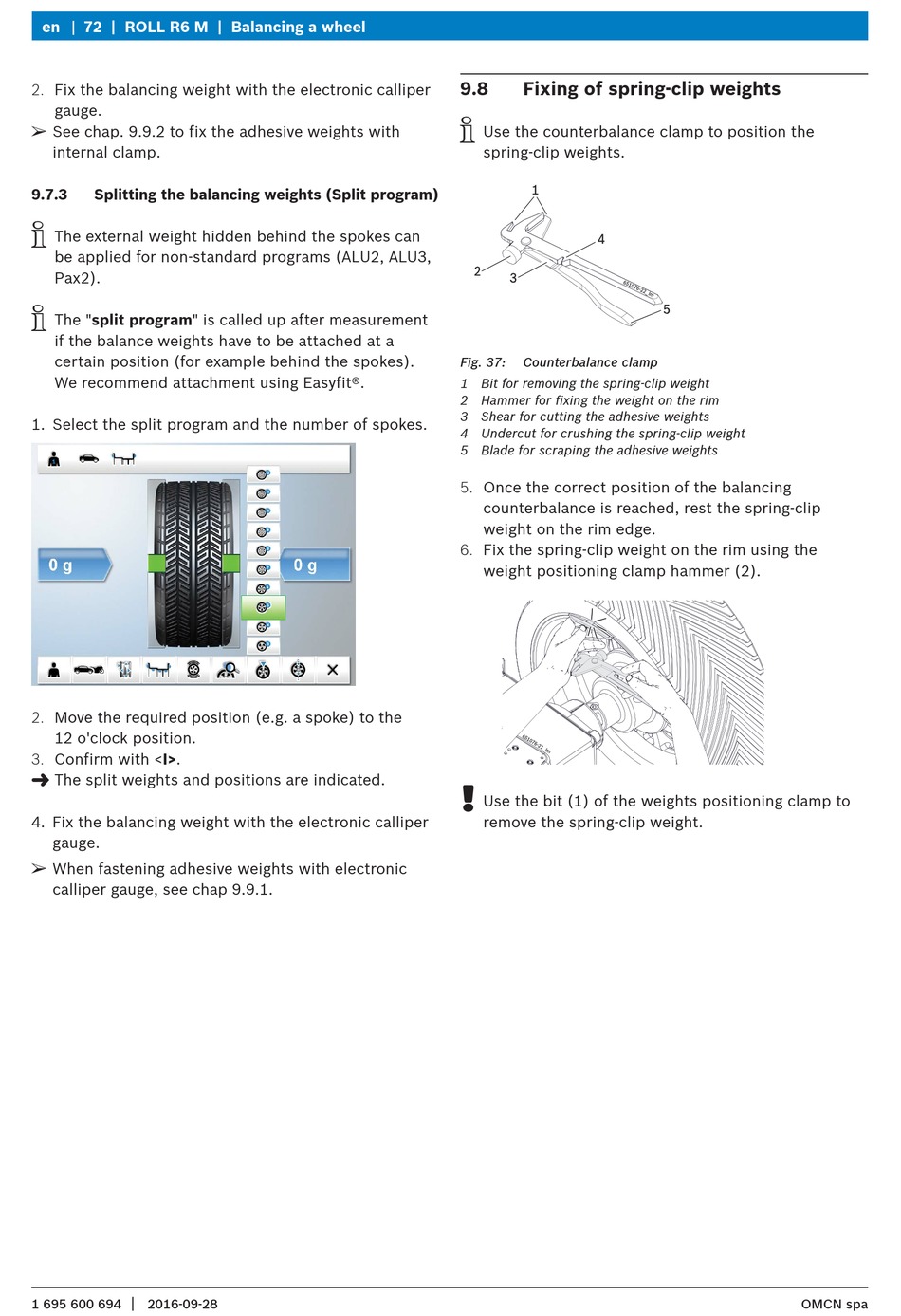

en 72 | ROLL R6 M | Balancing a wheel
2. Fix the balancing weight with the electronic calliper
gauge.
€
See chap. 9.9.2 to fix the adhesive weights with
internal clamp.
9.7.3 Splitting the balancing weights (Split program)
i
The external weight hidden behind the spokes can
be applied for non-standard programs (ALU2, ALU3,
Pax2).
i
The "split program" is called up after measurement
if the balance weights have to be attached at a
certain position (for example behind the spokes).
We recommend attachment using Easyfit®.
1. Select the split program and the number of spokes.
2. Move the required position (e.g. a spoke) to the
12 o'clock position.
3. Confirm with <I>.
"
The split weights and positions are indicated.
4. Fix the balancing weight with the electronic calliper
gauge.
€
When fastening adhesive weights with electronic
calliper gauge, see chap 9.9.1.
|
1 695 600 694 2016-09-28
9.8 Fixing of spring-clip weights
i
Use the counterbalance clamp to position the
spring-clip weights.
Fig. 37: Counterbalance clamp
1 Bit for removing the spring-clip weight
2 Hammer for fixing the weight on the rim
3 Shear for cutting the adhesive weights
4 Undercut for crushing the spring-clip weight
5 Blade for scraping the adhesive weights
5. Once the correct position of the balancing
counterbalance is reached, rest the spring-clip
weight on the rim edge.
6. Fix the spring-clip weight on the rim using the
weight positioning clamp hammer (2).
!
Use the bit (1) of the weights positioning clamp to
remove the spring-clip weight.
