en 74 | ROLL R6 M | Balancing a wheel
!
For the standard programs use the weights
positioning gauge internal clamp to position the
adhesive weight in the internal plane and in the
external plane.
1. Insert the necessary adhesive weight in the internal
clamp for weights.

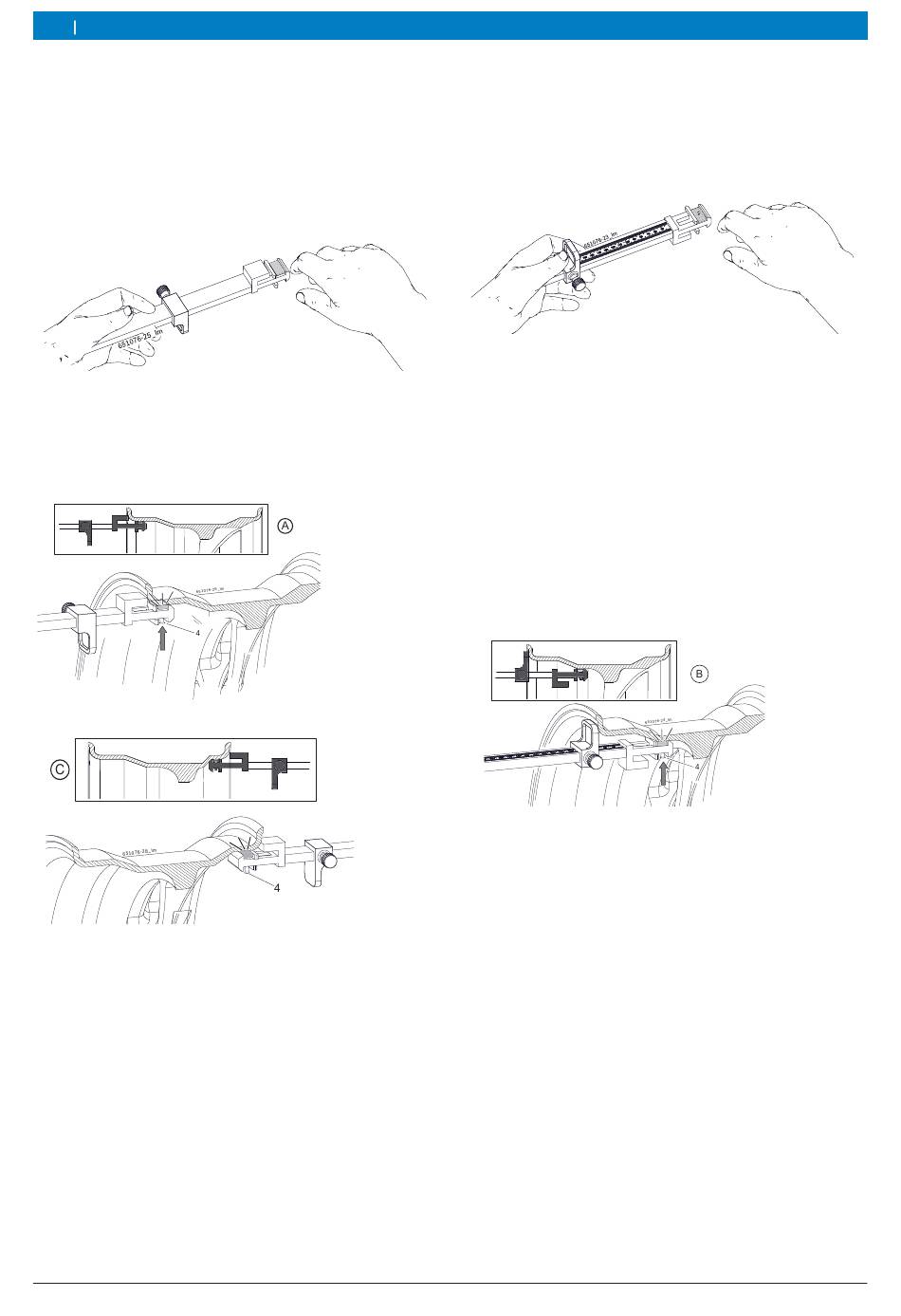

Fig. 44:
2. Position the weights positioning gauge head (2) on
the rim edge using the internal clamp (3) in contact
with the rim itself.
Fig. 45: Internal adhesive weight application example
Fig. 46: External adhesive weight application example
3. Using ejector (4) apply the adhesive weight and
push it to adhere well.
|
1 695 600 694 2016-09-28
9.9.3 Fixing the adhesive weights with
external clamp
1. Insert the necessary adhesive weight in the external
clamp for weights (5).
Fig. 47:
2. Rest the weights positioning gauge stop (8) on the
rim edge using the external clamp (5) in contact
with the rim itself.
!
The position of the adhesive weight is determined
by previously detected measurement "J" of the
balancing plane and fixed on the weights positioning
gauge (see 9.5.2).
3. Using ejector (4) apply the adhesive weight and
push it to adhere well.
