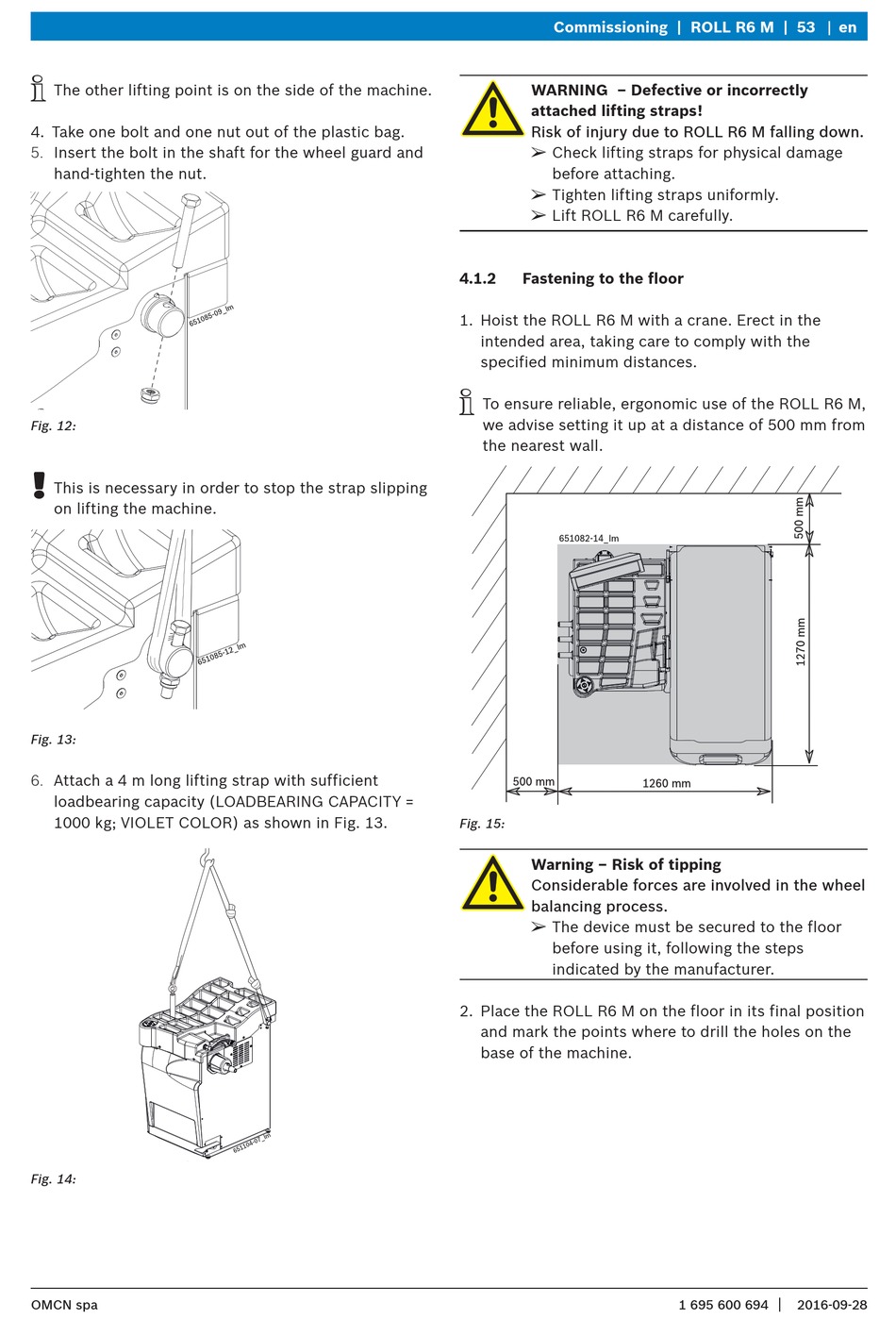

The other lifting point is on the side of the machine.
4. Take one bolt and one nut out of the plastic bag.
5. Insert the bolt in the shaft for the wheel guard and
hand-tighten the nut.

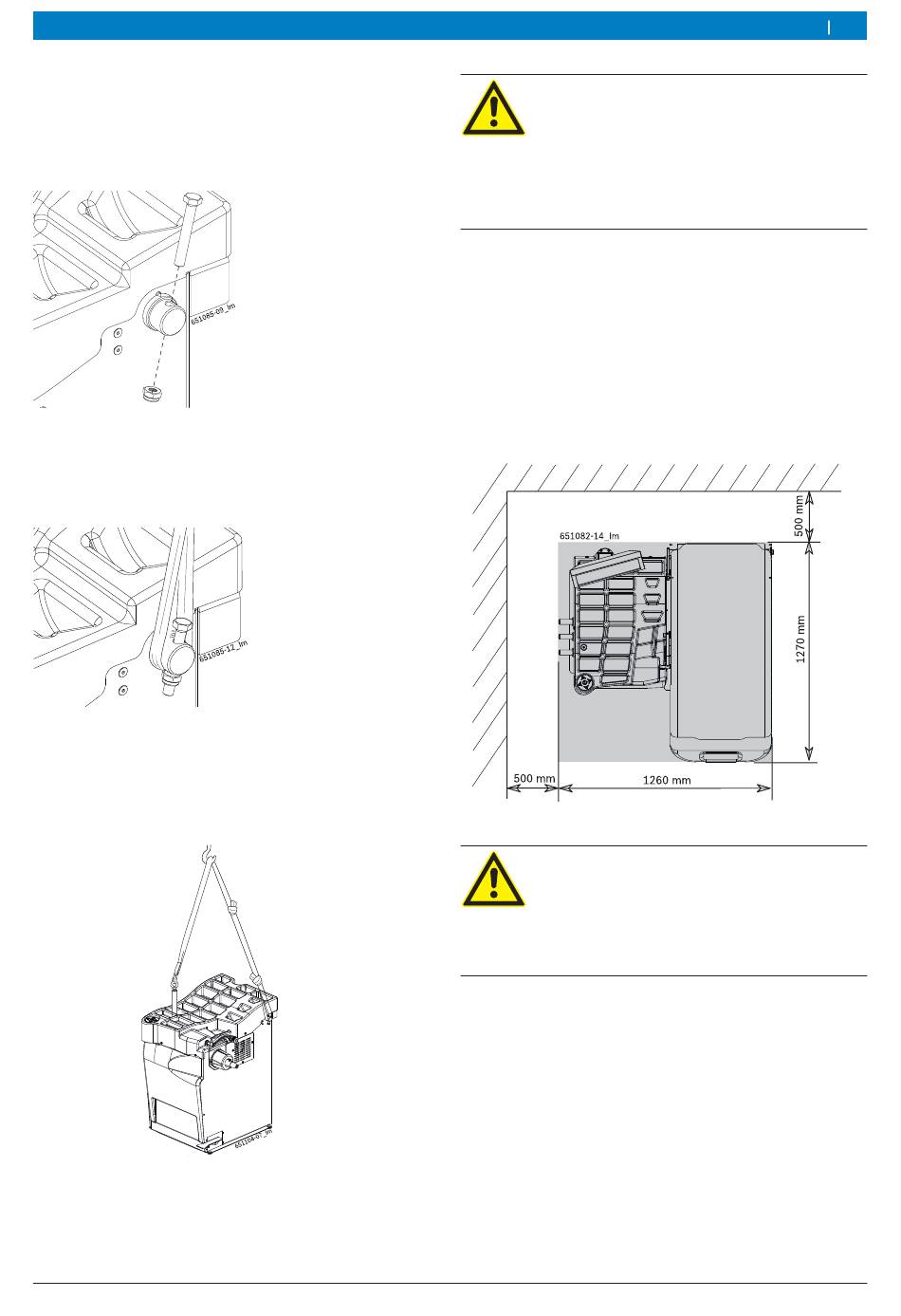

Fig. 12:
!
This is necessary in order to stop the strap slipping
on lifting the machine.
Fig. 13:
6. Attach a 4 m long lifting strap with sufficient
loadbearing capacity (LOADBEARING CAPACITY =
1000 kg; VIOLET COLOR) as shown in Fig. 13.
Fig. 14:
OMCN spa
Commissioning | ROLL R6 M | 53
WARNING – Defective or incorrectly
attached lifting straps!
Risk of injury due to ROLL R6 M falling down.
€
Check lifting straps for physical damage
before attaching.
€
Tighten lifting straps uniformly.
€
Lift ROLL R6 M carefully.
4.1.2 Fastening to the floor
1. Hoist the ROLL R6 M with a crane. Erect in the
intended area, taking care to comply with the
specified minimum distances.
i
To ensure reliable, ergonomic use of the ROLL R6 M,
we advise setting it up at a distance of 500 mm from
the nearest wall.
Fig. 15:
Warning – Risk of tipping
Considerable forces are involved in the wheel
balancing process.
€
The device must be secured to the floor
before using it, following the steps
indicated by the manufacturer.
2. Place the ROLL R6 M on the floor in its final position
and mark the points where to drill the holes on the
base of the machine.
