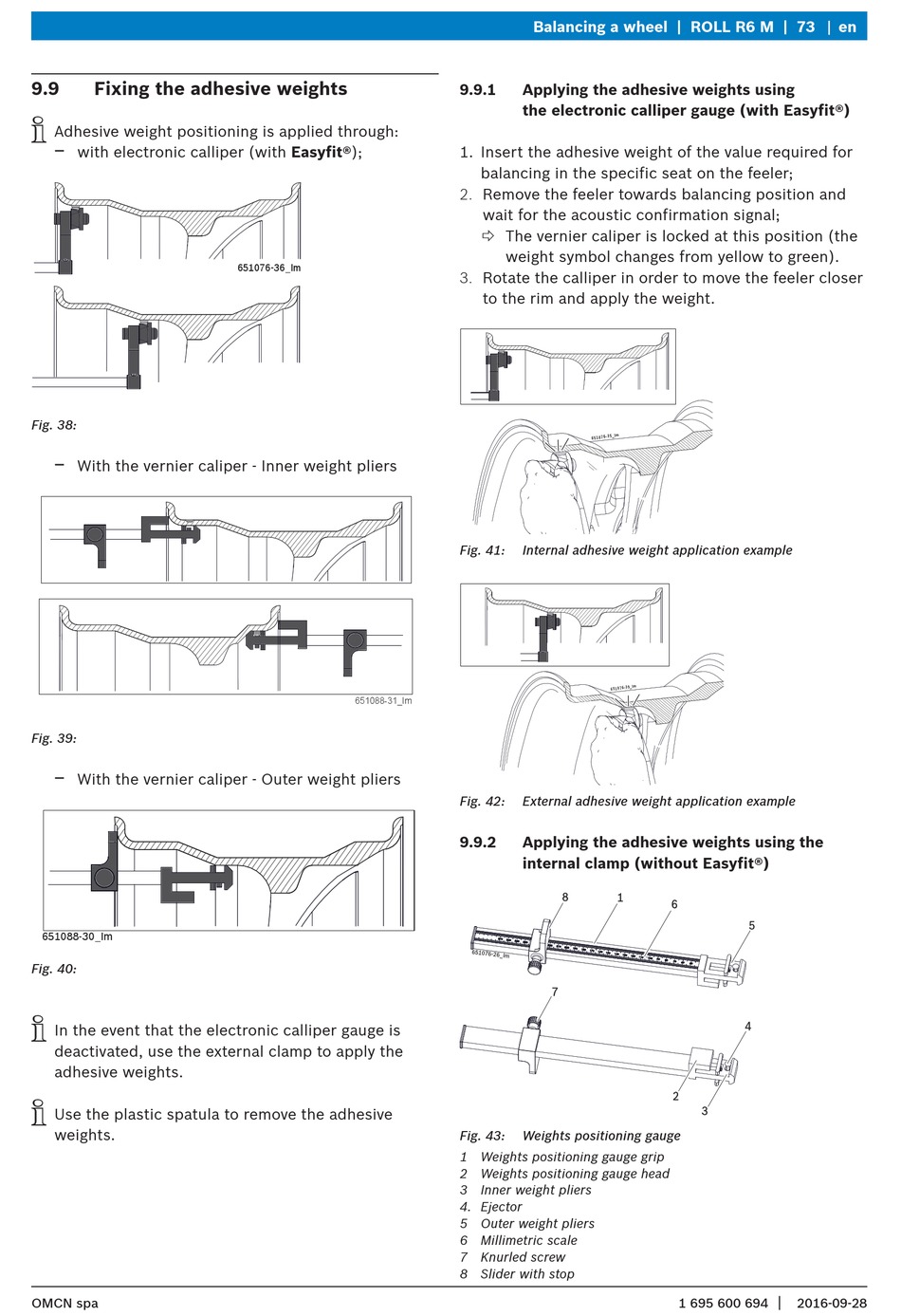

9.9 Fixing the adhesive weights
i
Adhesive weight positioning is applied through:
$
with electronic calliper (with Easyfit®);
Fig. 38:
$
With the vernier caliper - Inner weight pliers
Fig. 39:
$
With the vernier caliper - Outer weight pliers
Fig. 40:
i
In the event that the electronic calliper gauge is
deactivated, use the external clamp to apply the
adhesive weights.
i
Use the plastic spatula to remove the adhesive
weights.
OMCN spa
Balancing a wheel | ROLL R6 M | 73
9.9.1 Applying the adhesive weights using
the electronic calliper gauge (with Easyfit®)
1. Insert the adhesive weight of the value required for
balancing in the specific seat on the feeler;
2. Remove the feeler towards balancing position and
wait for the acoustic confirmation signal;
« The vernier caliper is locked at this position (the
weight symbol changes from yellow to green).
3. Rotate the calliper in order to move the feeler closer
to the rim and apply the weight.
Fig. 41: Internal adhesive weight application example
Fig. 42: External adhesive weight application example
9.9.2 Applying the adhesive weights using the
internal clamp (without Easyfit®)
Fig. 43: Weights positioning gauge
1 Weights positioning gauge grip
2 Weights positioning gauge head
3 Inner weight pliers
4. Ejector
5 Outer weight pliers
6 Millimetric scale
7 Knurled screw
8 Slider with stop
