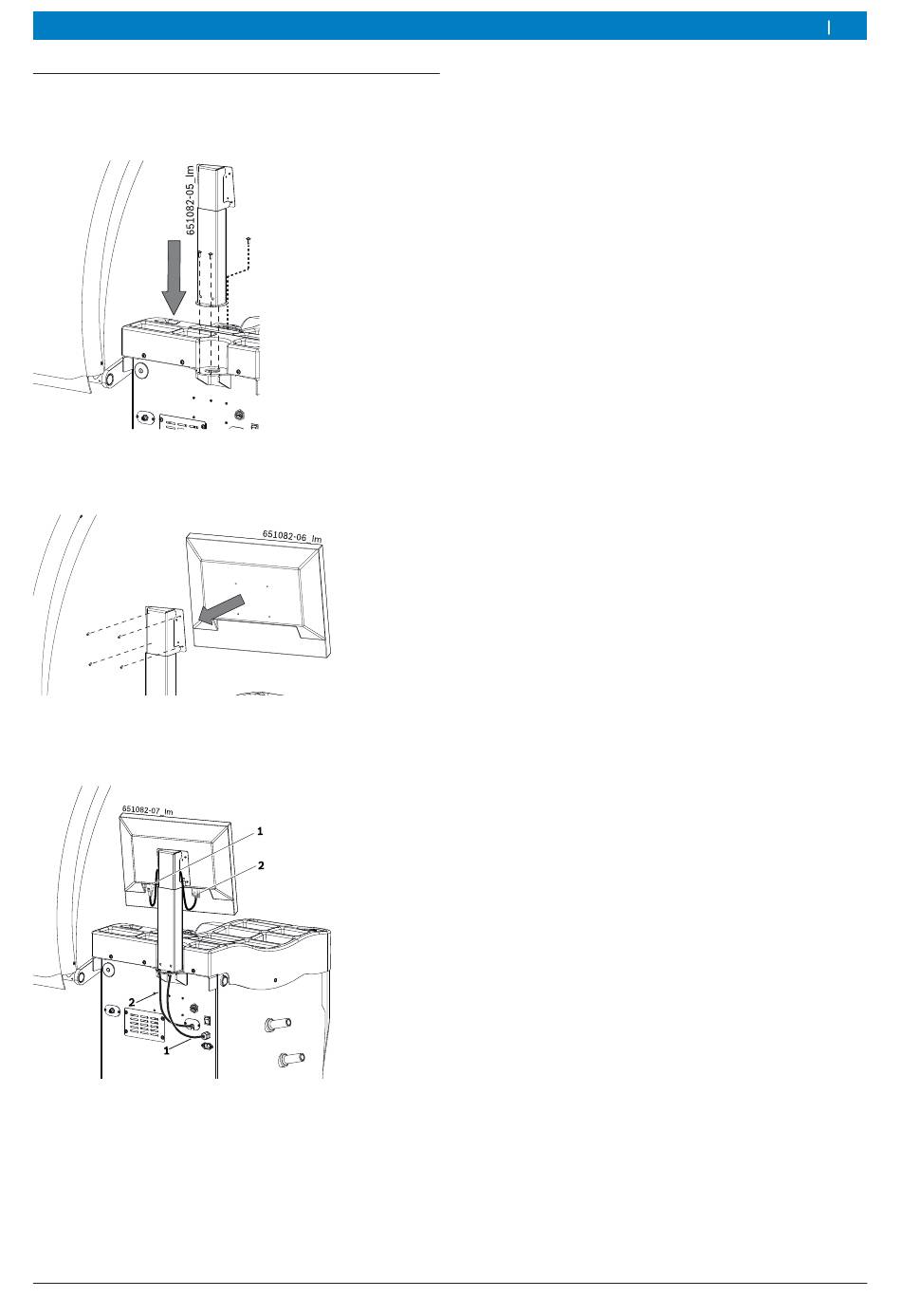

4.4 Fitting monitor
1. Use 3 bolts to attach the monitor arm to the
ROLL R6 M.
Fig. 20:
2. Attach the monitor to the monitor arm.
Fig. 21:
3. Connect the wires.
Fig. 22: Fitting monitor
1 Monitor power cord
2 Monitor VGA connecting cable
