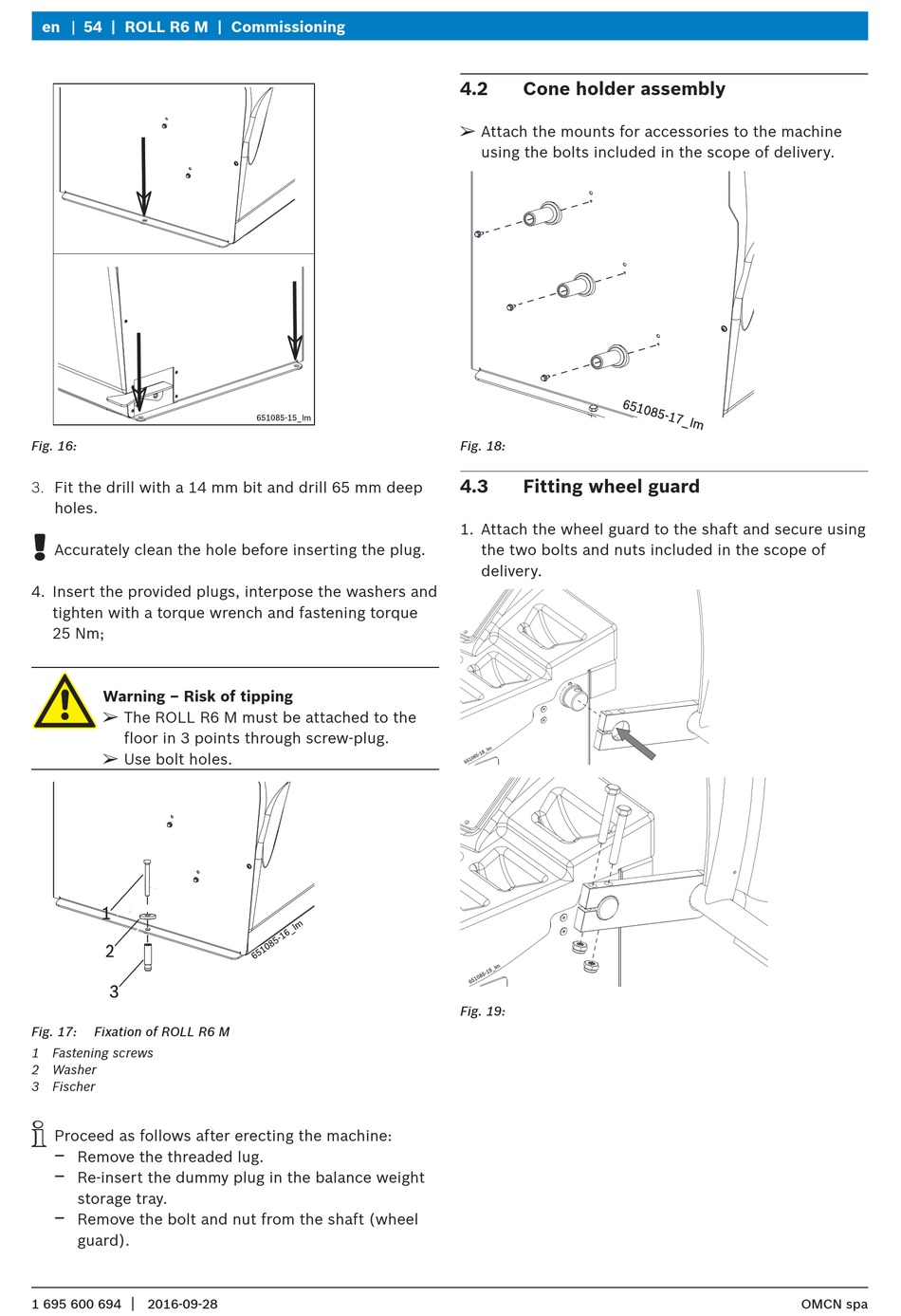

en 54 | ROLL R6 M | Commissioning
Fig. 16:
3. Fit the drill with a 14 mm bit and drill 65 mm deep
holes.
!
Accurately clean the hole before inserting the plug.
4. Insert the provided plugs, interpose the washers and
tighten with a torque wrench and fastening torque
25 Nm;
Warning – Risk of tipping
€
The ROLL R6 M must be attached to the
floor in 3 points through screw-plug.
€
Use bolt holes.
Fig. 17: Fixation of ROLL R6 M
1 Fastening screws
2 Washer
3 Fischer
i
Proceed as follows after erecting the machine:
$
Remove the threaded lug.
$
Re-insert the dummy plug in the balance weight
storage tray.
$
Remove the bolt and nut from the shaft (wheel
guard).
|
1 695 600 694 2016-09-28
4.2 Cone holder assembly
€
Attach the mounts for accessories to the machine
using the bolts included in the scope of delivery.
Fig. 18:
4.3 Fitting wheel guard
1. Attach the wheel guard to the shaft and secure using
the two bolts and nuts included in the scope of
delivery.
Fig. 19:
