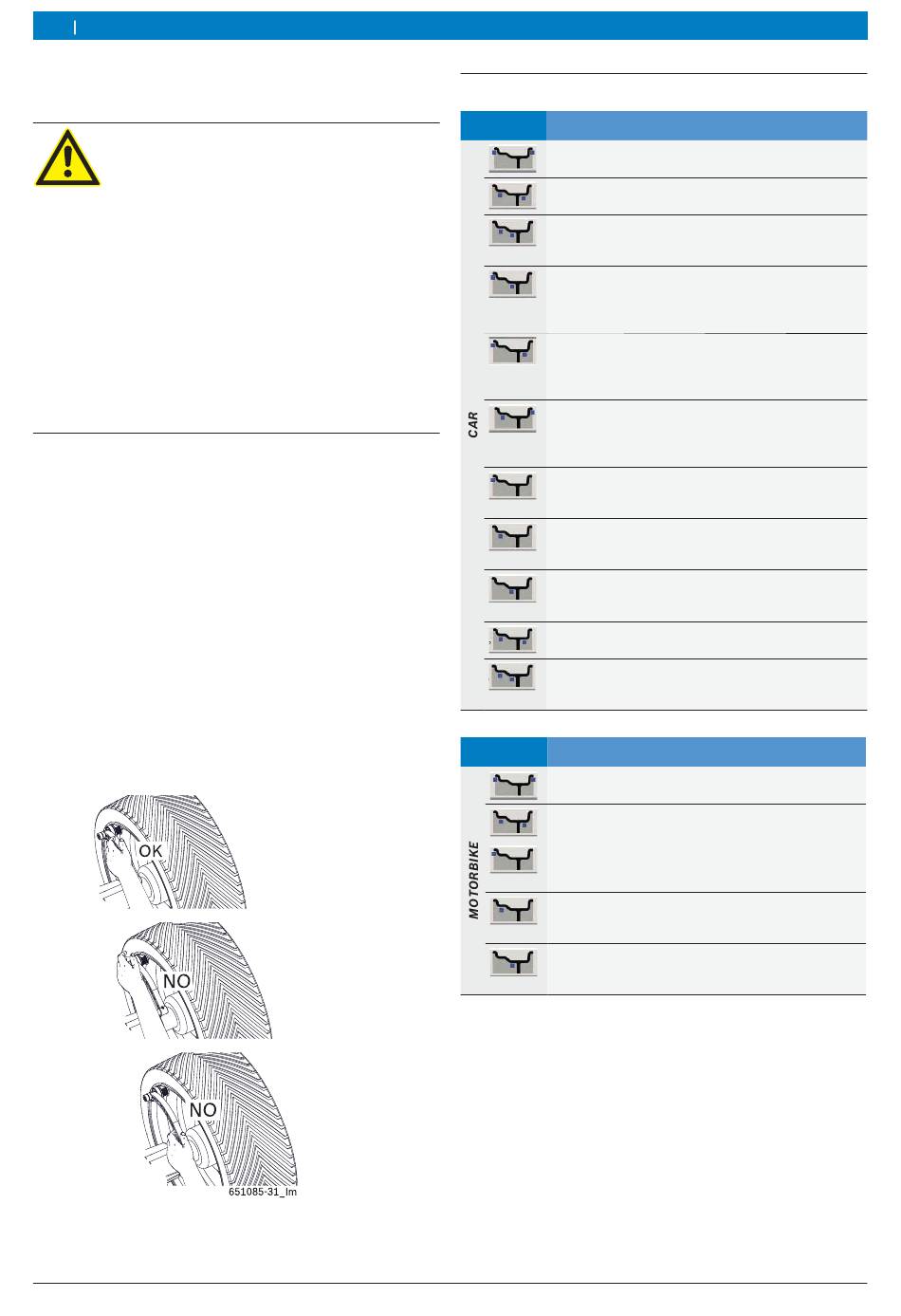

en 64 | ROLL R6 M | Balancing a wheel
9.

Balancing a wheel

WARNING – Incorrectly balanced wheels
Risk of injury due to change in handling
characteristics of vehicle.
€
ROLL R6 M must be positioned on a flat
surface and must be firmly bolted to the
floor.
€
Specified flange must be mounted on
clean and grease-free shaft.
€
Use the specified accessories (cone,
spacer rings).
€
Rim must contact flange accurately,
remove any dirt.
€
Perform a check measurement after
applying balancing weights.
1. Switch on the ROLL R6 M at the on/off switch.
€
Access the main balancing page.
2. To proceed, confirm by pressing <I>
i
In the following description the audio is activated.
To balance the wheel:
$
Select the balancing program;
$
Entering of rim data;
$
Measuring of imbalance;
$
Fastening of the balancing weights.
i
To rule out balancing errors, the handle of the
electronic vernier caliper must be held properly
when calibrating the rim data.
Fig. 27:
|
1 695 600 694 2016-09-28
9.1

Balancing programs

Symbol Button
Standard program for spring-clip weights.
Recommended for Steel rims.
Alu1: Standard program for adhesive weights
Recommended for Alloy rims.
Alu2: Non-standard program for hidden adhesive
weights
Recommended for Alloy rims.
Alu3: Non-standard program
spring-clip weights inside /
outside concealed adhesive weights
Recommended for Alloy rims.
Alu4: Standard program
spring-clip weights inside /
loutside adhesive weights
Recommended for Alloy rims.
Alu5: Standard program
Inside adhesive weights /
spring-clip weights outside
Recommended for Alloy rims.
Static balancing for spring-clip weights.
Standard program
Recommended for Iron rims.
Static balancing for adhesive weights
Standard program
Recommended for Alloy rims.
Static balancing for hidden adhesive weights
Standard program
Recommended for Alloy rims.
Pax1: Standard program for adhesive weights
(Pax rim)
Pax2: Non-standard program for hidden adhesive
weights
(Pax rim)
Symbol Key
Standard program for spring-clip weights.
Recommended for Steel rims.
Alu1: Standard program for adhesive weights
Recommended for Alloy rims.
Static balancing for spring-clip weights.
Standard program
Recommended for Iron rims.
Static balancing for adhesive weights
Standard program
Recommended for Alloy rims.
Static balancing for hidden adhesive weights
Standard program
Recommended for Alloy rims.
1) Pay attention to the current settings for attachment of the adhe-
sive weight!
2) The weight must be raised slightly if the adhesive weight can-
not be attached in the vicinity of the outer edge of the rim (rim
flange) on account of the design of the rim
"
Green symbols indicate the positions of the balancing
planes for the balancing program selected.
