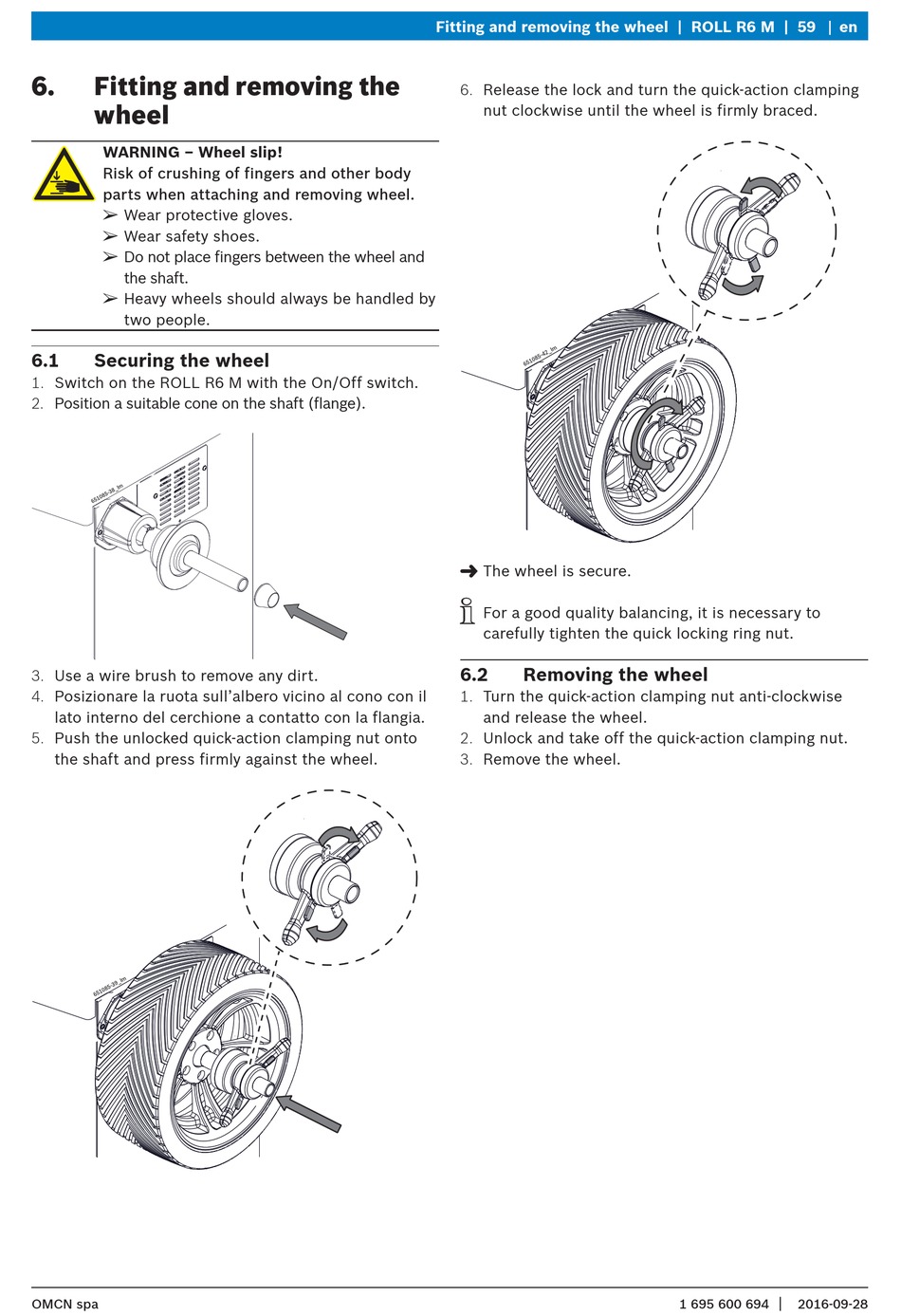

6. Fitting and removing the
wheel
WARNING – Wheel slip!
Risk of crushing of fingers and other body
parts when attaching and removing wheel.
€
Wear protective gloves.
€
Wear safety shoes.
€
Do not place fingers between the wheel and
the shaft.
€
Heavy wheels should always be handled by
two people.
6.1

Securing the wheel

1. Switch on the ROLL R6 M with the On/Off switch.
2. Position a suitable cone on the shaft (flange).
3. Use a wire brush to remove any dirt.
4. Posizionare la ruota sull'albero vicino al cono con il
lato interno del cerchione a contatto con la flangia.
5. Push the unlocked quick-action clamping nut onto
the shaft and press firmly against the wheel.
OMCN spa
Fitting and removing the wheel | ROLL R6 M | 59
6. Release the lock and turn the quick-action clamping
nut clockwise until the wheel is firmly braced.
"
The wheel is secure.
i
For a good quality balancing, it is necessary to
carefully tighten the quick locking ring nut.
6.2 Removing the wheel
1. Turn the quick-action clamping nut anti-clockwise
and release the wheel.
2. Unlock and take off the quick-action clamping nut.
3. Remove the wheel.
