Checking the direction of rotation

1. Check that the ROLL R6 M is correctly connected to
the mains power supply.
2. Switch on the ROLL R6 M with the On/Off switch.
3. Confirm by pressing <I>.
4. Close the wheel protection cap.
« The shaft rotates.
i
If the shaft does not turn, press the <I> key
5. Check the direction of rotation of the shaft.
i

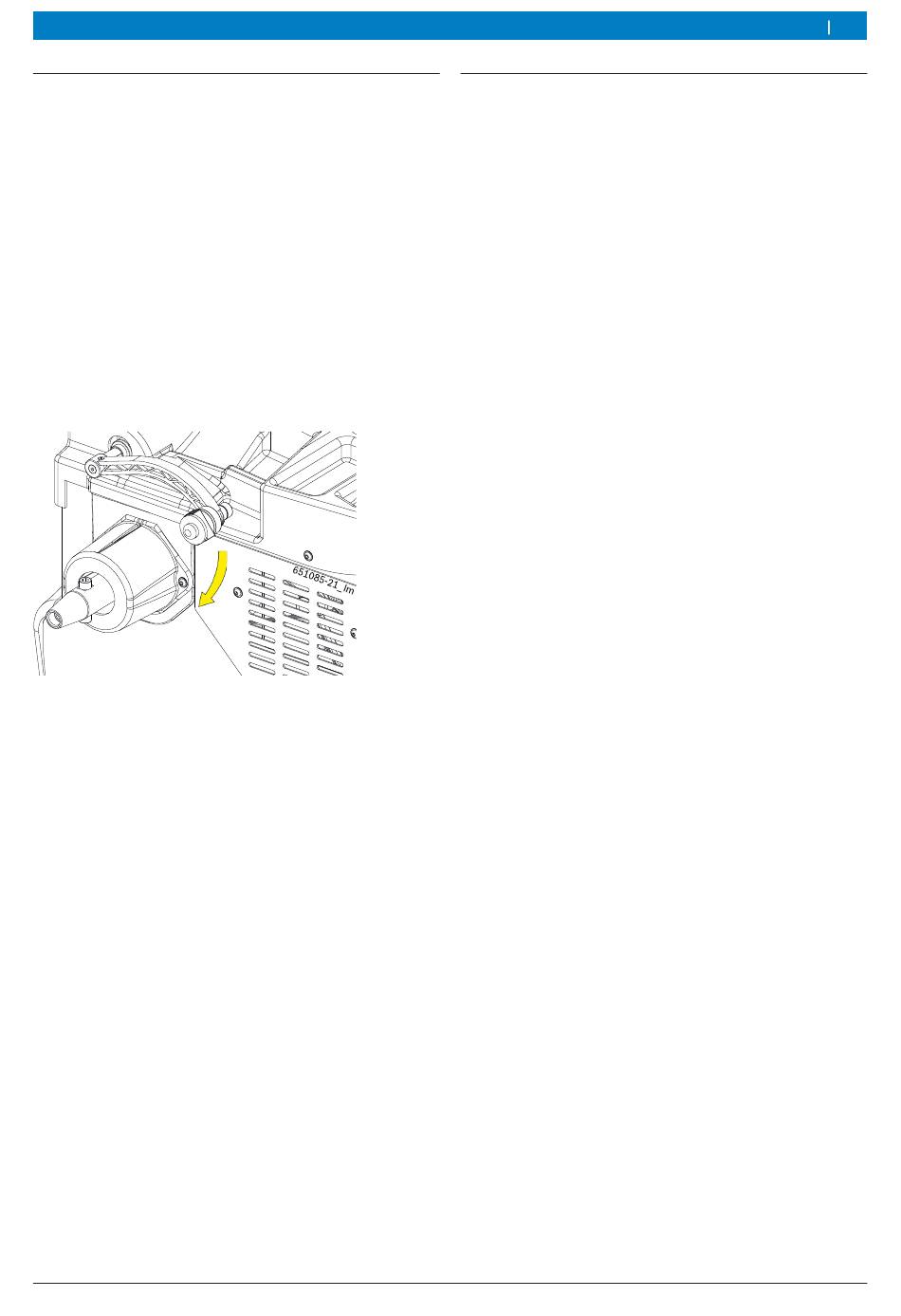

The correct direction of rotation is indicated by an
adhesive on the right side of the ROLL R6 M.
i
If the direction of rotation is incorrect, the
ROLL R6 M comes to an immediate stop and
displays the error message ERR 3.
OMCN spa
Commissioning | ROLL R6 M | 57
4.7 Calibration of ROLL R6 M
!
Calibration must be performed after initial
commissioning.
1. Flange calibration;
2. Electronic Vernier caliper;
3. ROLL R6 M calibration;
4. Perform reference measurement.
i
The calibration is described in the section
"Calibration".
