44.12. How to set Utility
Utility function includes recall factory, Language, Carry.
Utility menu as below
Function
Setting
Recall
factory
Chinese
Language
English
Vector
Carry
BMP
44.13. Demonstration
Example 1: Measurement of Simple Signals
Observe an unknown signal in the circuit, and display and measure rapidly the frequency and peak-to-peak
value of the signal.
1.
Carry out the following operation steps for the rapid display of this signal:
*
Set the probe menu attenuation coefficient as 10X and that of the switch in the probe switch as 10X.
*
Connect the probe of Channel 1 to the measured point of the circuit.
*
Push down the AUTOSET button.
The oscilloscope will implement the AUTOSET to make the wave form optimized, based on which, you
can further regulate the vertical and horizontal divisions till the waveform meets your requirement.

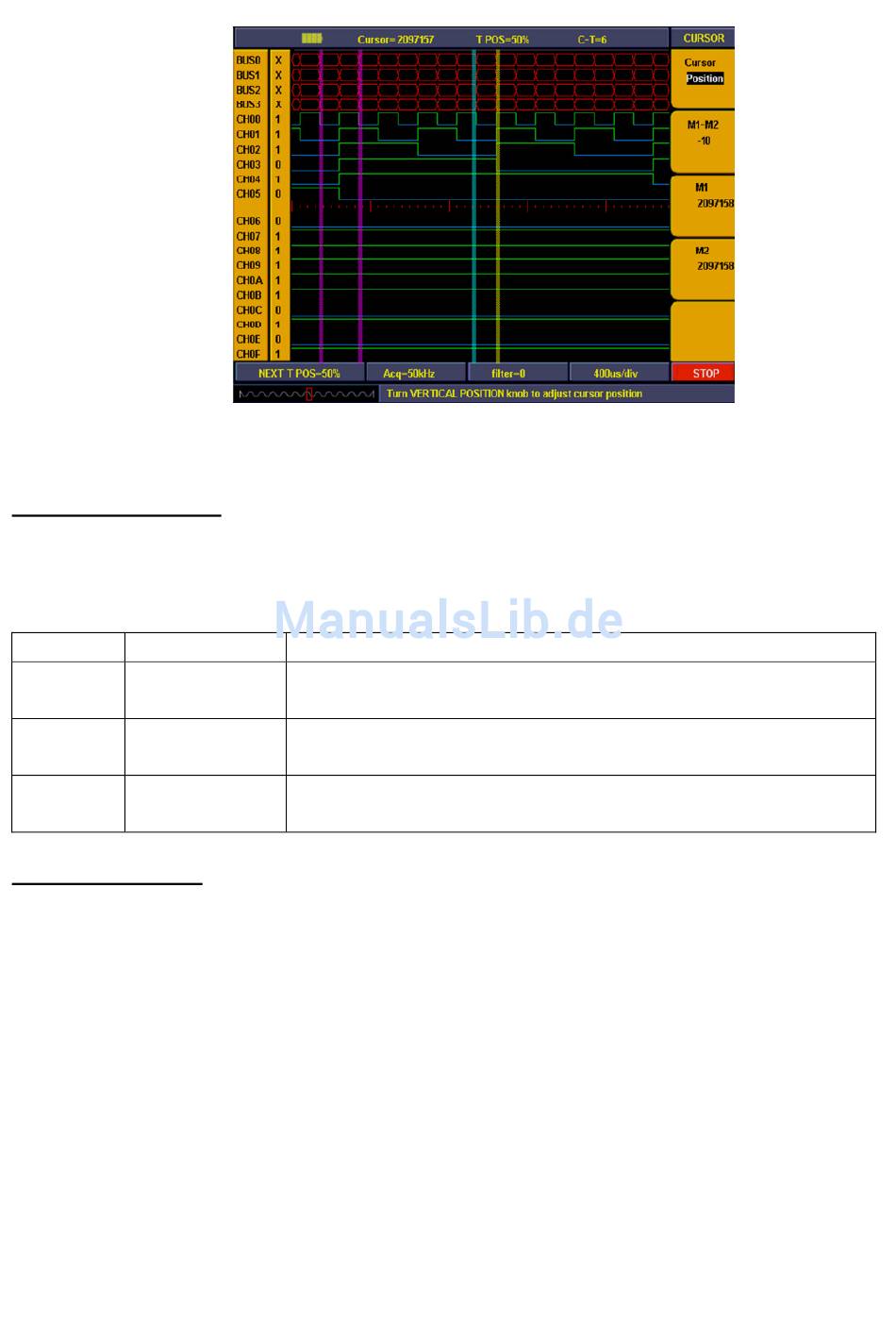

Fig. 103 Cursor position measurement
Instruction
Default setting for LA
Default to be Chinese
Default to be English
Set data format to be vector and loading data display with "Bin" format
Set data format to be BMP and loading data display with "BMP" format.
-198-
