The description of the Display Set Menu is shown as follows:
Function Menu
Type
Persist
Format
Carry
Battery
Display Type:
With the F1 menu selection button pushed down, you can shift between Vectors and Dots types. The
differences between the two display types can be observed through the comparison between Fig.53 and
Fig.54.
Setting
Description
Vectors
The space between the adjacent sampling points in the display
is filled with the vector form.
Dots
Only the sampling points are displayed.
OFF
1sec
2sec
Set the persistence time for each sampling point.
5sec
Infinite
YT
Show the relative relation between the vertical voltage and the
horizontal time.
XY
Channel 1 is displayed on the horizontal axis and Channel 2
on the vertical axis. FFT mode disable.
Bitmap
The data transmitted in communication are in the bitmap form.
Vectors
The data transmitted in communication are in the vector form.
On
Battery power content symbol on
Off
Battery power content symbol off

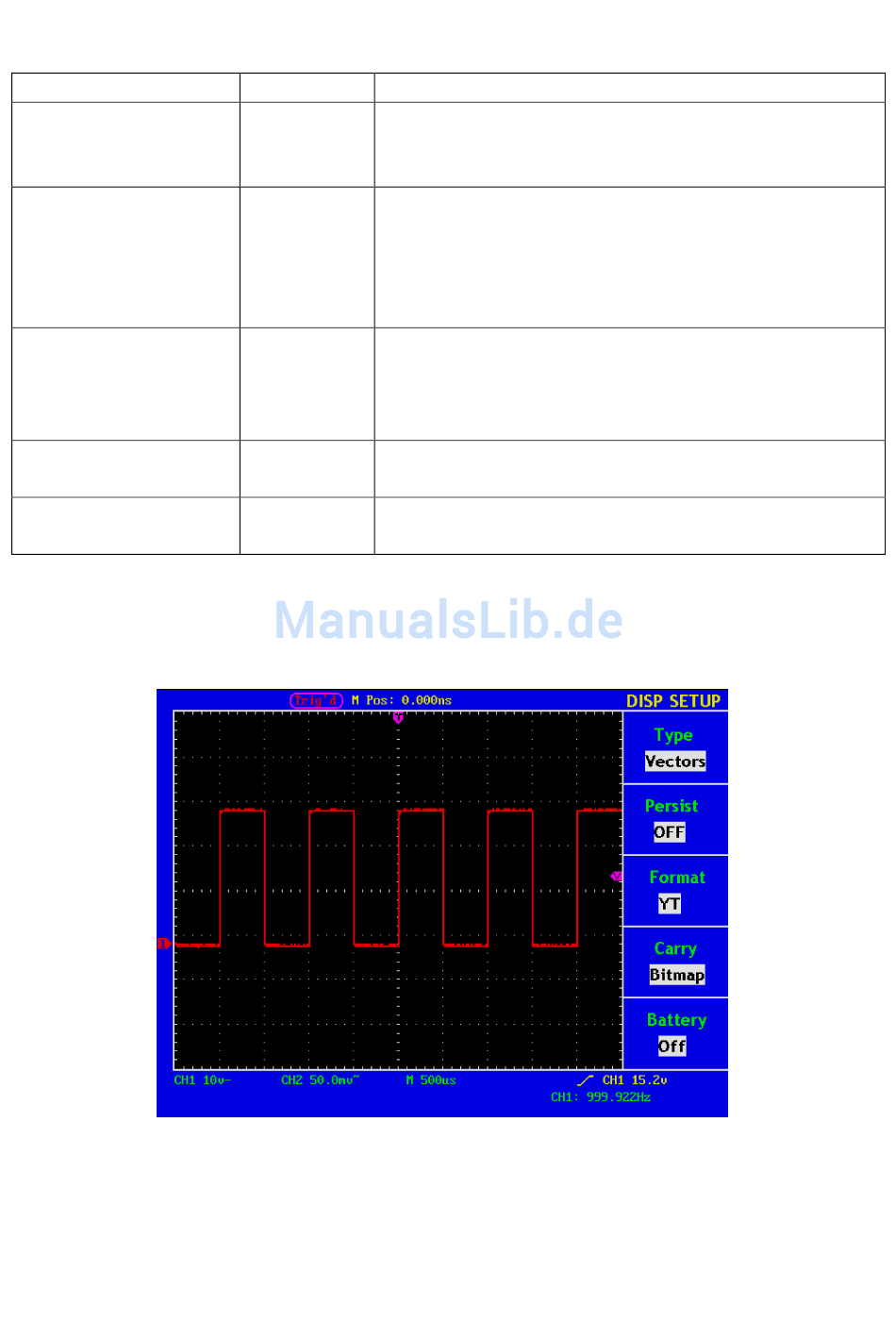

Fig. 53 Display in the Vector Form
