The description of the cursor measurement menu is shown as the following table:
Function Menu
Type
Source
Delta
Cursor 1
Cursor 2
When carrying out the cursor measurement, the position of Cursor 1 can be adjusted with the CURSOR1
(VERTICAL POSITION) knob of Channel 1, and that of Cursor 2 can be adjusted with the CURSOR2
(VERTICAL POSITION) knob of Channel 2.
Perform the following operation steps for the voltage cursor measurement of the channel CH1:
1.
Press CURSOR and recall the CURS MEAS menu.
2.
Press the F1 menu selection button to choose Voltage for Type, with two purple dotted lines displayed
along the horizontal direction of the screen, which indicating CURSOR1 and CURSOR2.
3.
Press the F2 menu selection button and choose CH1 for Source.
4.
Adjust the positions of CURSOR1 and CURSOR2 according to the measured waveform, with the
absolute value of the voltage amplitude difference between Cursor 1 and Cursor 2 displayed in the
increment window. The current position of Cursor1 is displayed in the Cursor1 window and that of
Cursor2 is displayed in the Cursor2 window (see Fig.67).
Setting
Description
OFF
Switch off the cursor measurement.
Voltage
Display the voltage measurement cursor and menu.
Time
Display the time measurement cursor and menu.
CH1
Display the channel generating the waveform to which the
CH2
cursor measurement will be applied.
Read the difference between cursors.
Read the position of Cursor 1 (the Freq. is read with
reference to the horizontal trigger position and the Vamp is
to the ground point).
Read the position of Cursor 2 (the Freq. is read with
reference to the horizontal trigger position and the Vamp is
to the ground point).

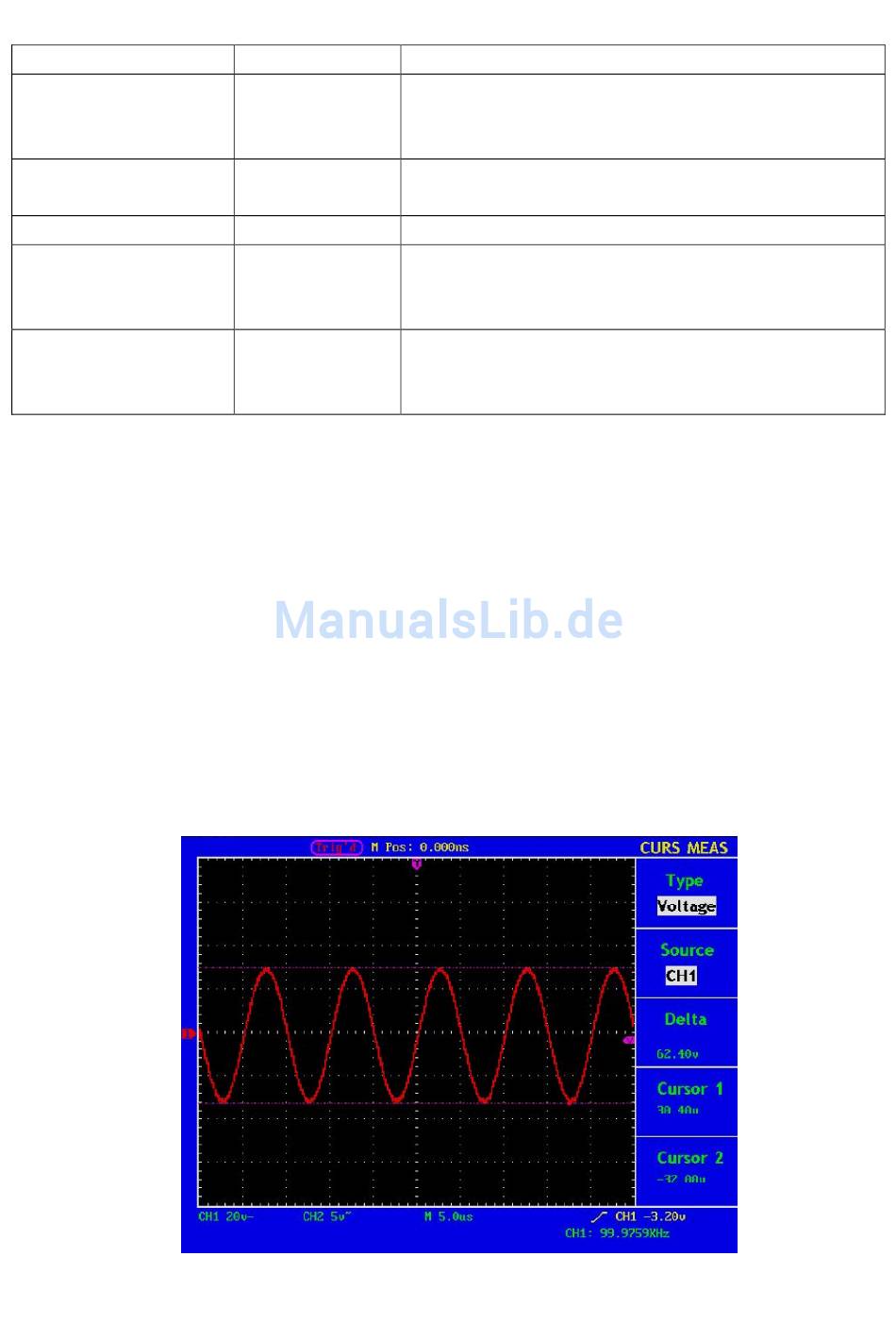

Fig. 67 Waveform of Voltage Cursor Measurement
-168-
