2.
Setting the"Band Limit"
Taking the Channel 1 for example, the operation steps are shown as below:
1.
Press the CH1 MENU button and call out the CH1 SETUP menu.
2.
Press the F2 menu selection button and select the Band Limit as OFF 200MHz, with Channel 1 Band
Limit switched off.
3.
Press F2 menu selection button again, select the Band Limit as ON 20MHz, with Channel 1 Band
Limit is switched on.
3.
Setting the Channel "ON/OFF"
Taking the Channel 1 for example, the operation steps are shown as below:
Press the CH1 MENU button and call out the CH1 SETUP menu.
1.
2.
Press the F3 menu selection button and select the Channel as OFF, with Channel 1 switched off.
3.
Press F3 menu selection button again, select the channel as ON, with Channel 1 is switched on.
Note: In FFT mode, both CH1 and CH2 are not allowed to be ON when F3 is pressed. See Fig. 22.

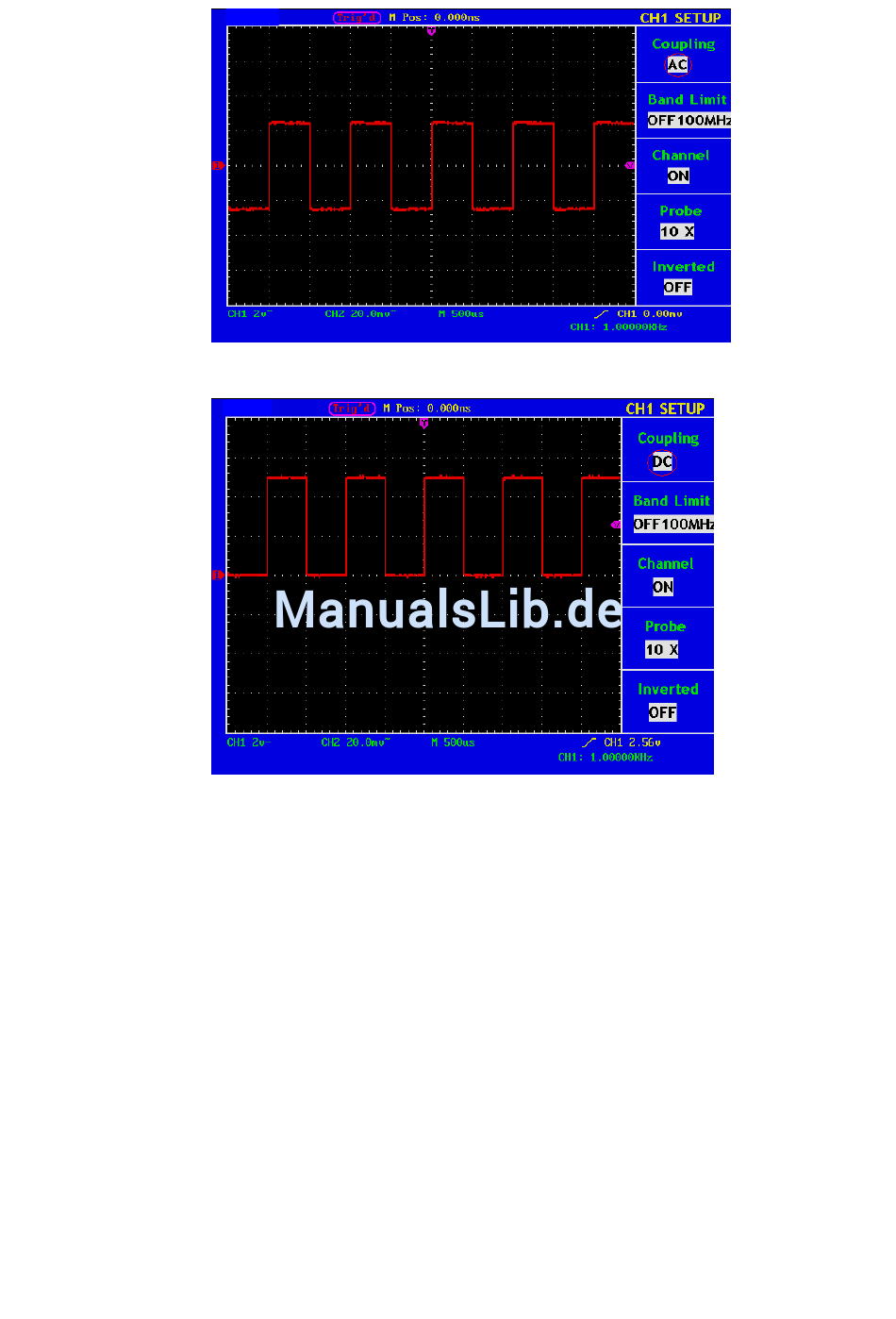

Fig. 20 AC Coupling Oscillogram
Fig. 21 DC Coupling Oscillogram
-131-
