16. Display systems
We need only three channels as what we measure is 3 signals. And other channel and bus can be off. In this
way the display resolution in using channel will be increased.
Display system mainly to set on/off for measure channel. We use CH00, CH01, CH02 as measure channel
correspond to signal enable, clock, data accordingly. Other channel and bus is off.
1.
Press "A(DISPLAY)" and display menu appears.
2.
Press "F1" till signal sources display as "Channel"
3.
Press "F2" or turn "CH1 Volts/Div" knob till channel No. display as "CH00".
4.
Press "F3" and set the signal sources as "ON". Repeat operation of steps 3.4 and set CH01, CH02

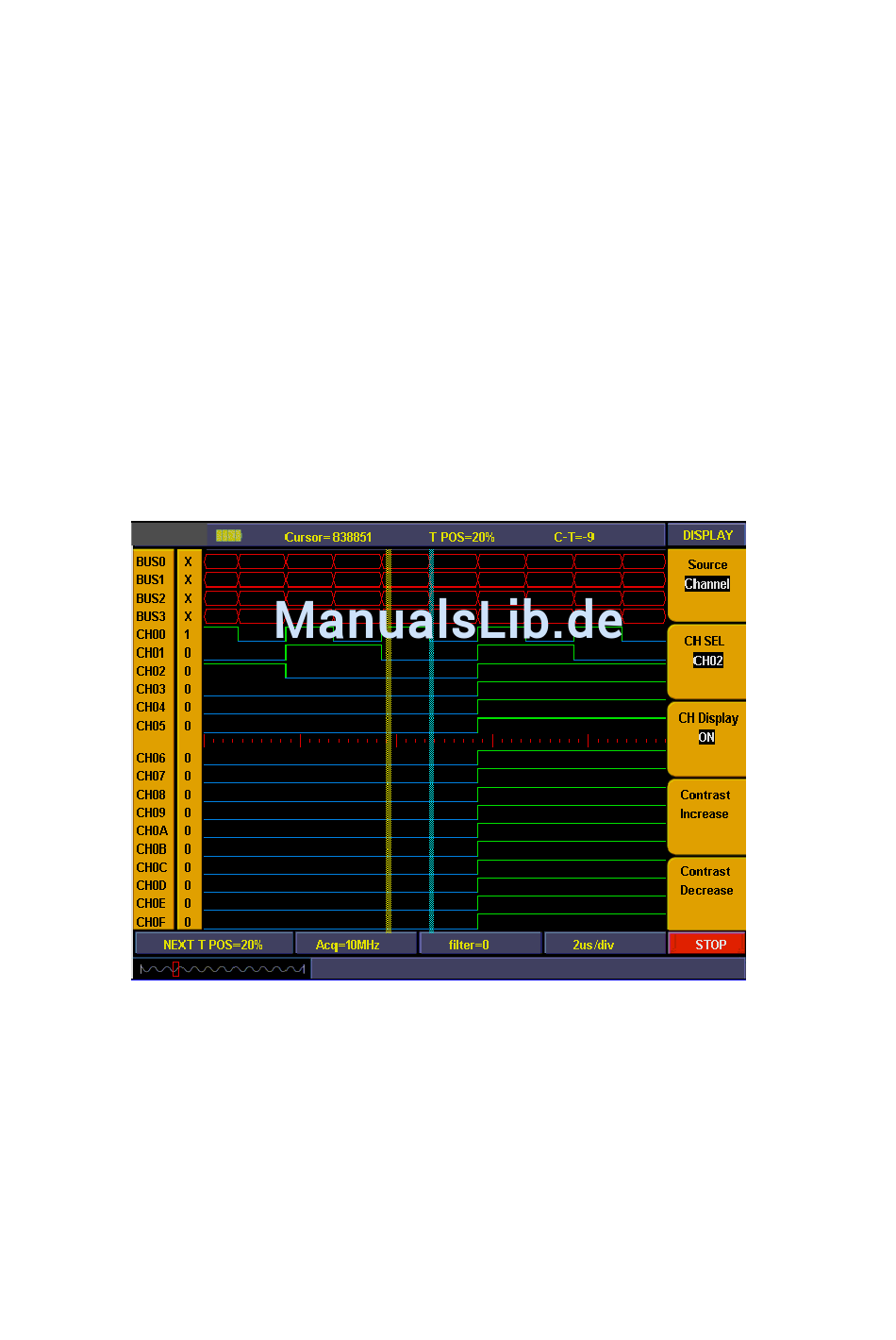

as "ON" and CH03-CHOF as "OFF". Refer to Fig. 13.
5.
Press "F1" till sources display as "BUS".
6.
Press "F2" till Bus No. display as "BUS0"
7.
Press "F3" and set signal sources as "OFF". Repeat operation of steps 6.7 and set BUS1, BUS2, BUS3
all as "OFF". Ref to Fig. 14.
Now display panel only show CH00, CH01, CH02 and others channel and bus are all off. Ref to Fig. 12
Fig. 12
-125-
