The description of the Wave Form Save Menu is shown as the following table:
Function Menu
Source
WAVE
Save
CHA
35. Save and Recall the Wave Form
®
The PeakTech
1190 / 1230 oscilloscopes can store four waveforms, which can be displayed with the current
waveform at the same time. The stored waveform called out cannot be adjusted.
In order to save the waveform of the channel CH1 into the address A, the operation steps should be followed:
1.
Press the F1 menu selection button and choose CH1 for Source.
Press the F2 menu selection button and choose A as save address.
2.
3.
Press the F3 menu selection button and save the waveform.
4.
Press the F4 menu selection button and choose ON for CH A. The stored wave form A will be displayed in
the screen. The voltage level and time base level will also be shown at the upper left corner of the display
area at the same time (see Fig.59).
Setting
CH1
CH2
MATH
FFT
A , B
C , D
OFF
ON

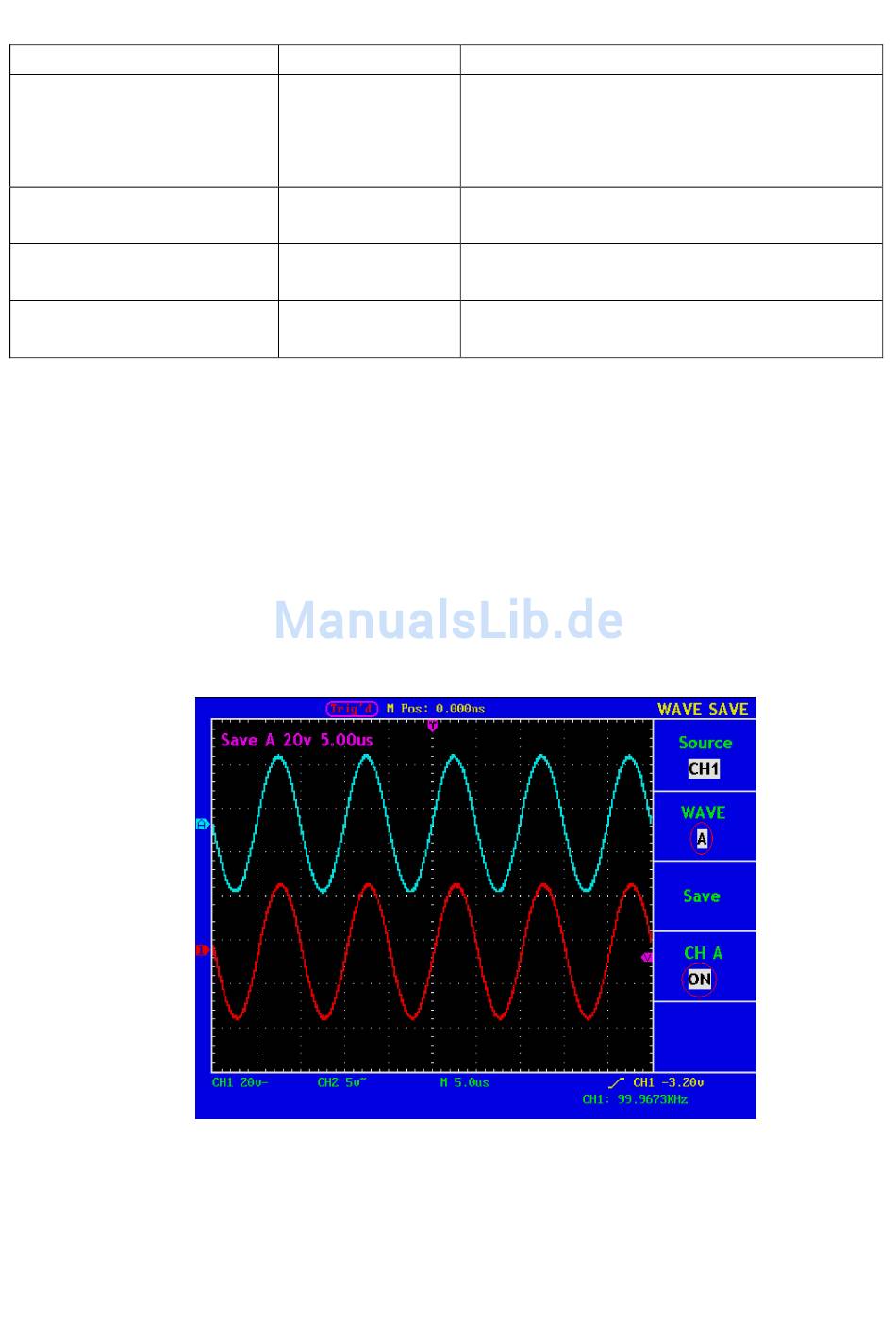

Fig. 59 Wave Saving
-162-
Description
Choose the wave form to be saved.
Choose the address in or from which the waveform
is saved or can be get access to.
Save the wave form of the source in the selected
address.
Switch on or off the display of the stored waveform.
