4.
Regulate the Attenuation Ratio of the Probe
In order to match the attenuation coefficient of the probe, it is required to adjust the attenuation ration
coefficient of the probe through the operating menu of the Channel accordingly. If the attenuation
coefficient of the probe is 1:1, that of the oscilloscope input channel should also be set to 1X to avoid any
errors presented in the displayed scale factor information and the measured data.
Take the Channel 1 as an example, the attenuation coefficient of the probe is 10:1, the operation steps is
shown as follows:
Press the CH1 MENU button, access CH1 SETUP menu.
1.
2.
Press the F4 menu selection button and select 10X for the probe.
The Fig. 23 illustrates the setting and the vertical scale factor when the probe of the attenuation
coefficient of 10:1 is used.

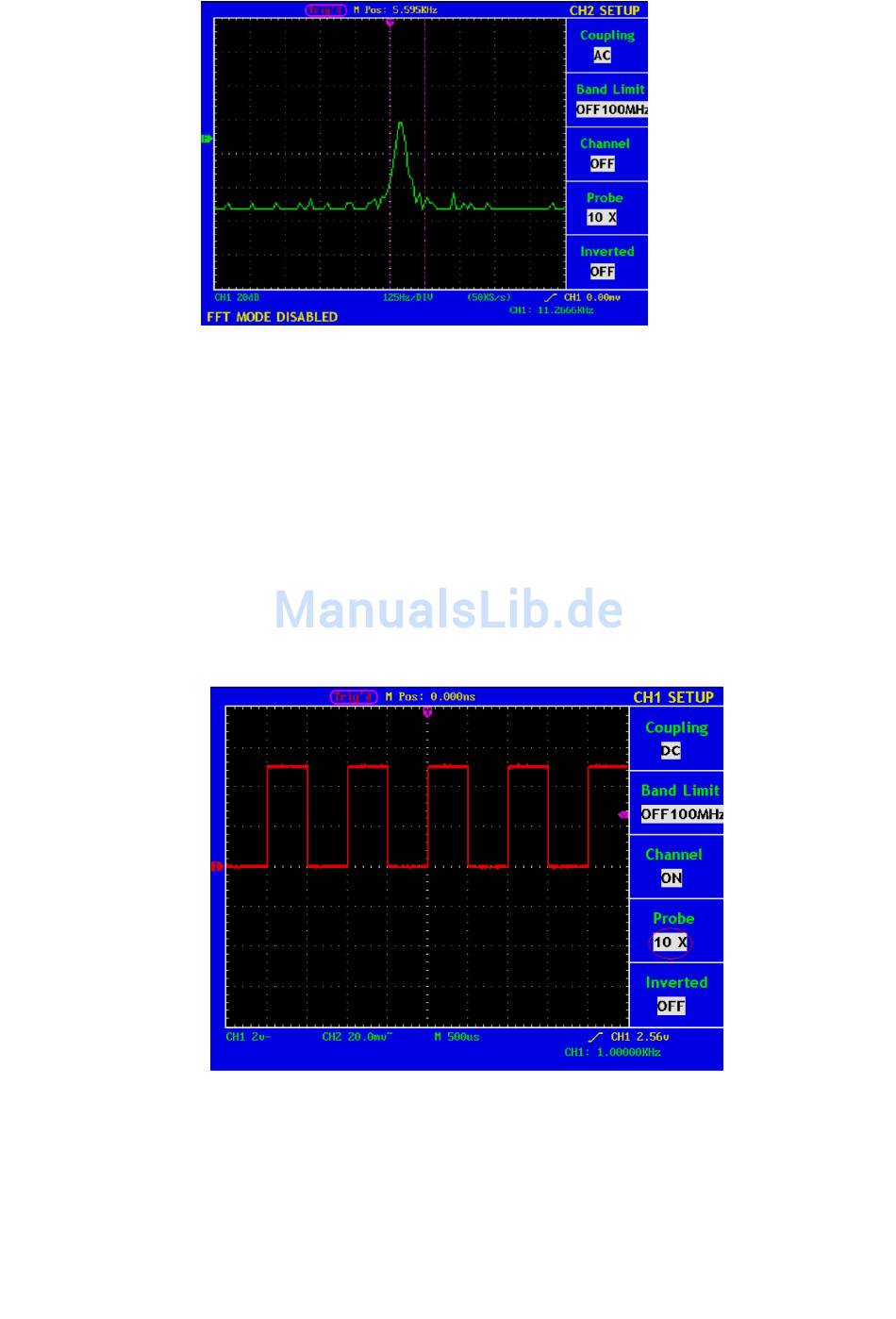

Fig. 22 Channel CH1 is diable under FFT mode
Fig. 23 Regulation of the Attenuation Ratio of the Probe
-132-
