PeakTech 1190 Bedienungsanleitung Seite 154

Alternate trigger (Trigger Mode: Slope )

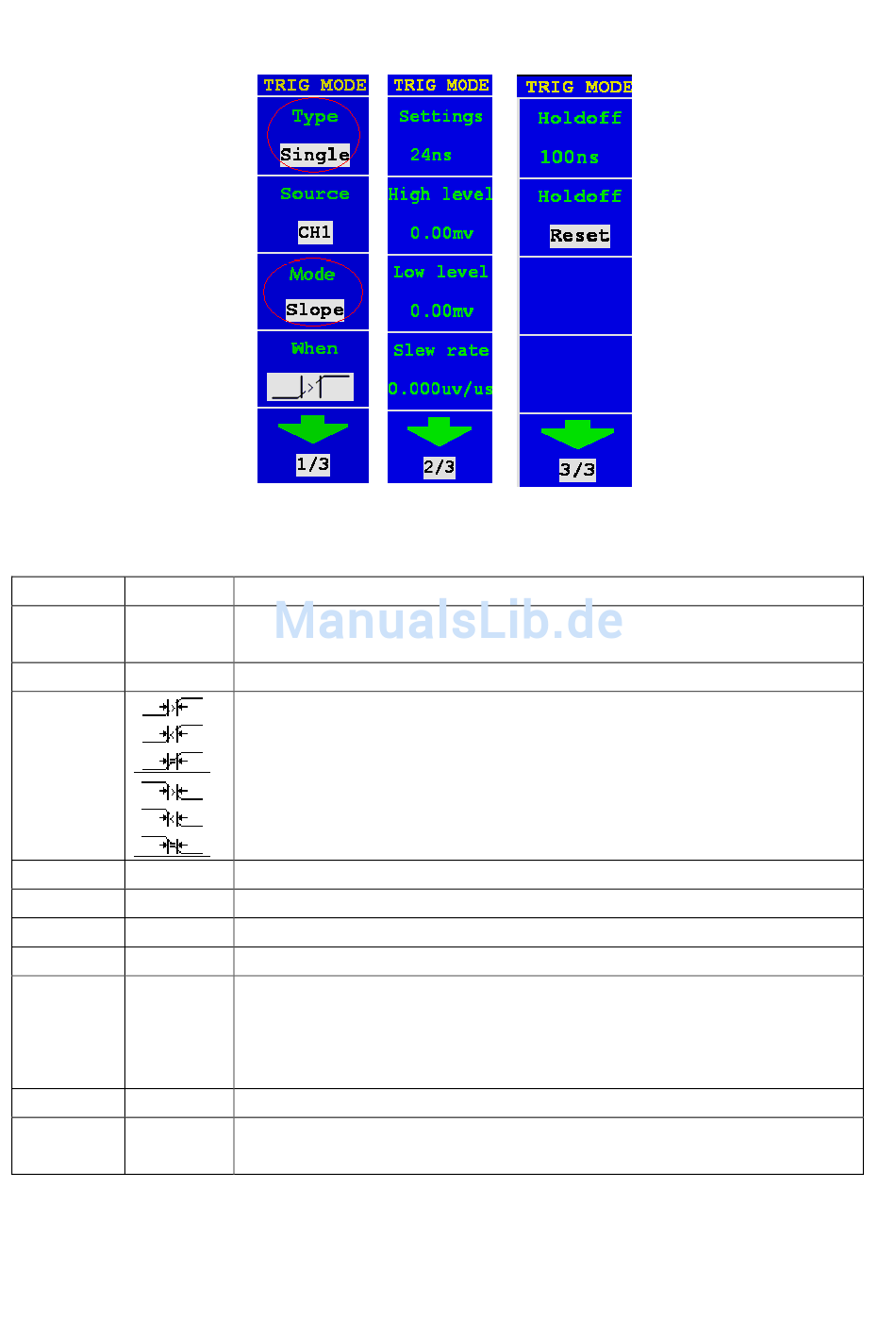

Alternate trigger(Trigger Type: Slope )Menu is shown as Fig. 47.
Alternate trigger(Trigger Type: Slope) menu list:
MENU SETTING
CH1
Source
CH2
Mode Slope
Slope
Condition
settings 24ns~10s
High level
Low level
Slew rate
AC
DC
Coupling
HF
LF
Holdoff 100ns~10s
Holdoff
Reset
Fig. 47 Alternate trigger(Trigger Type: Slope )Menu
INSTRUCTION
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Rising Edge and more than.
Rising Edge and less than.
Rising Edge and equal to .
Falling Edge and more than
Negative pulse and less than
Negative pulse and equal to
Turn "TRIG LEVEL"knob to set slope time
Turn"TRIG LEVEL"knob to set the High level
Turn "TRIG LEVEL"knob to set Low level
Slew rate=( High level- Low level)/ Settings
Not allow DC portion to pass.
Allow all portion pass.
Not allow high frequency of signal pass and only low frequency portion pass.
Not allow low frequency of signal pass and only high frequency portion pass
Turn "TRIG LEVEL" knob to set time slot before another trigger event
Reset hold time to 100ns
-153-
