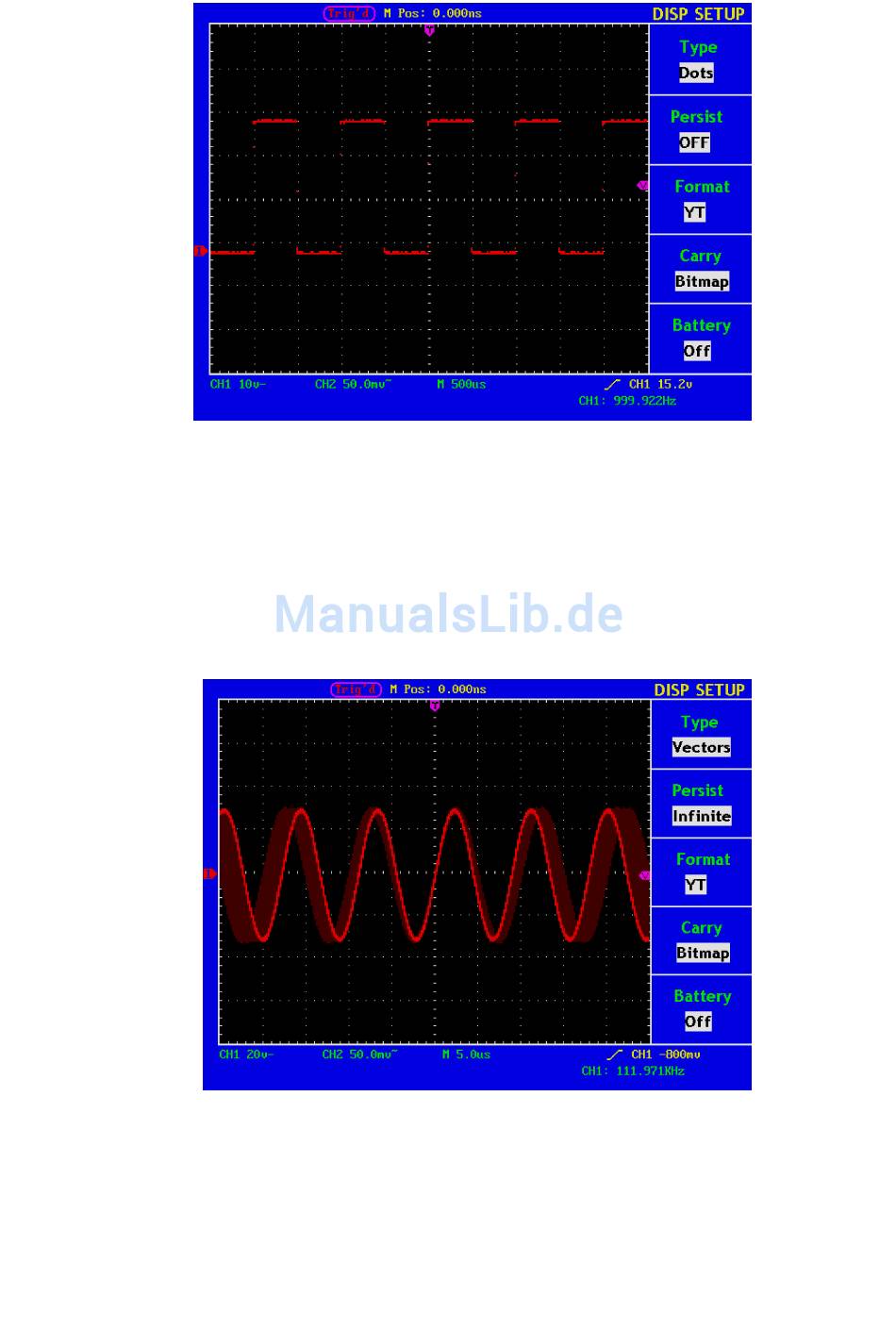

Fig. 54 Display in Dots form
32. Persist
When the Persist function is used, the persistence display effect of the picture tube oscilloscope can be
simulated: the reserved original data is displayed in fade color and the new data is in bright color. With the F2
menu selection button, different persistence time can be chosen: 1sec, 2sec, 5sec, Infinite and Closed.
When the "Infinite" option is set for Persist time, the measuring points will be stored till the controlling value is
changed (see Fig.55).
Fig. 55 Infinite Persistence Display
-159-
