Setting operation are same as sequential trigger setting.
6. Data width queue trigger:
Make BUS as trigger source and continuous duration in BUS as trigger condition to generate trigger. Duration
trigger menu refer to Fig. 86.
Duration trigger function as below:
Function Setting
Source BUS0~BUS3
0x0000~0xffff
(HEX)
Code
0~65535
(DEC)
Duration 10 ns ~ 50 s

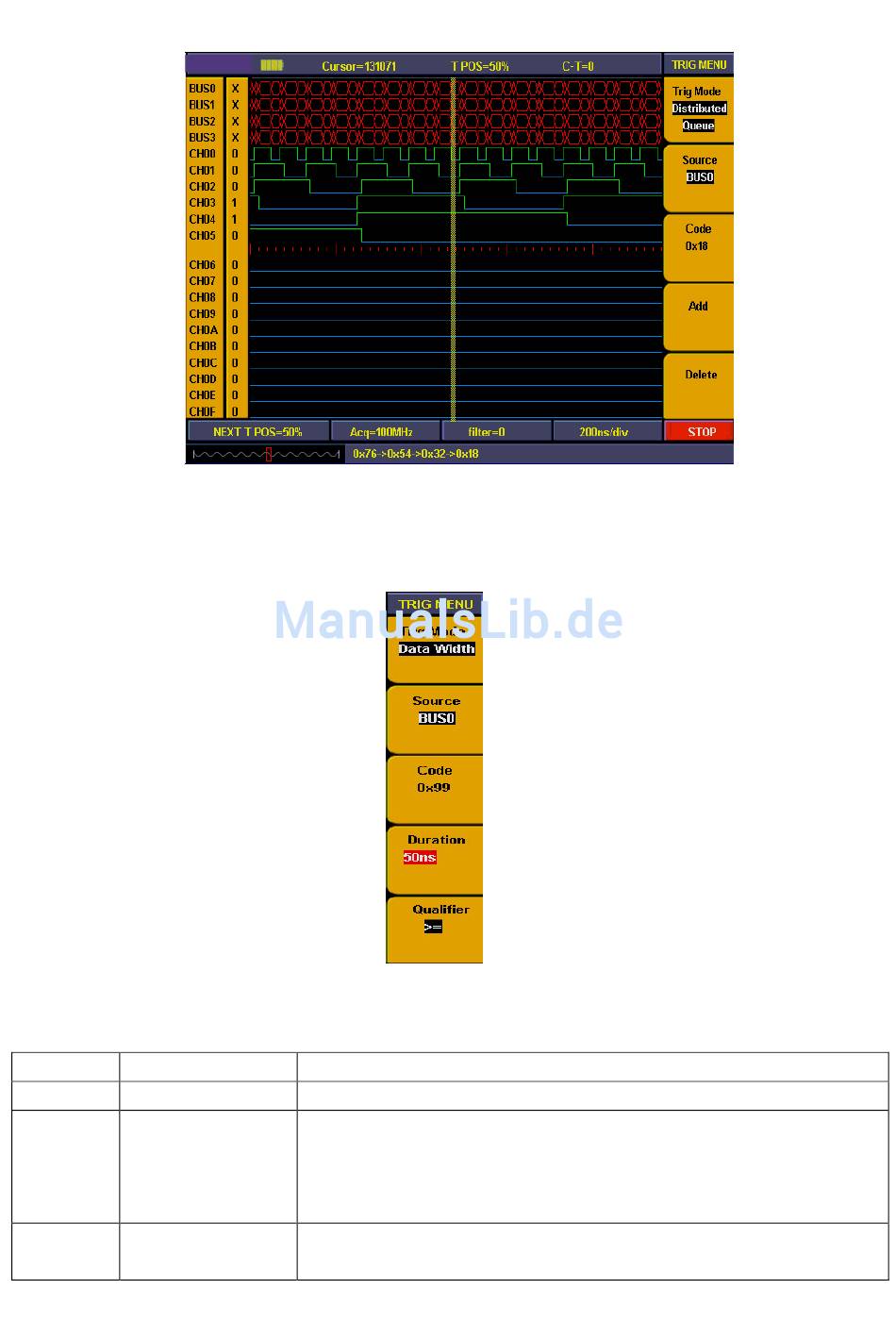

Fig. 85 Distributed queue trigger
Fig. 86 Duration trigger menu
Instruction
Select the trigger source from BUS0~BUS3
Can be set discretionarily between 0x0000 and 0xffff (HEX) or between
0 and 65535 (DEC) according to the bus and code setting.
The duration width can be set from 10ns (1-2-5) to 10.00us (1-2-5)
according to the sampling rate from high to low.
