25. Main Time Base
Press the F1 menu selection button and choose the Main Time Base. In this case, the HORIZONTAL
POSITION and SEC/DIV knobs are used to adjust the main window. The display in the screen is shown as

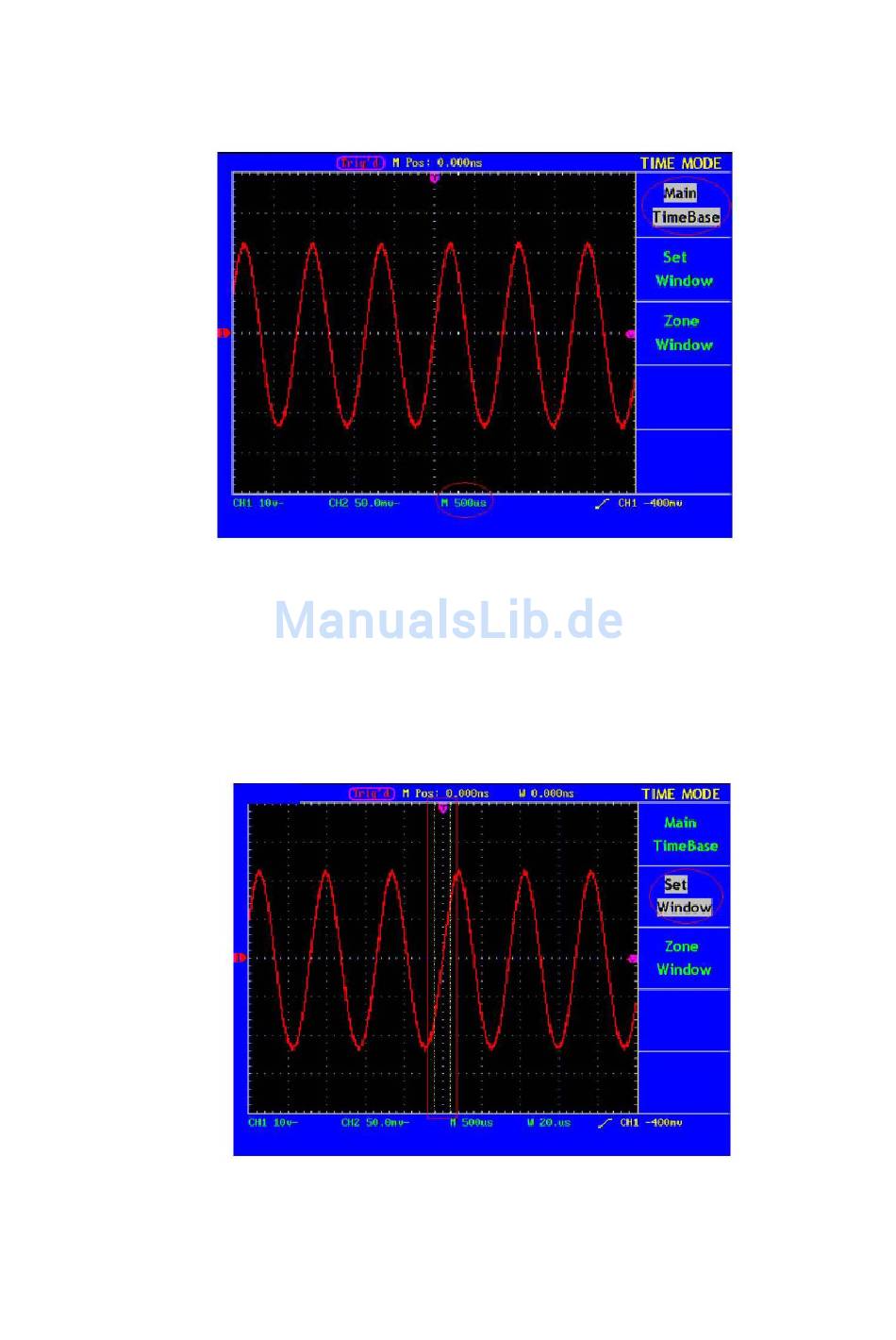

Fig.33.
Fig. 33 Main Time Base
26. Set Window
Press the F2 menu selection button and choose Set Window. The screen will show a window area defined by
two cursors. In this case, the HORIZONTAL POSITION and SEC/DIV knobs can be used to adjust the
horizontal position and size of this window area (see Fig. 30(a)). Press F2 menu button under the FFT mode, it
will notice "FFT mode disable". See Fig.34.
Fig. 34 Window Setting
