Alternate trigger (Trigger Mode:video)
Alternate trigger (Trigger Type:video) Menu is shown as Fig. 45.
Alternate trigger (Trigger Type: video) Menu list:
MENU SETTING
CH1
CH2
Source
EXT
EXT/5
Mode Video
Line
Field
Sync
Odd Field
EvenField
Designed Line
NTSC
Modulation
PAL/SECAM
Holdoff
100ns～10s
Holdoff
Reset

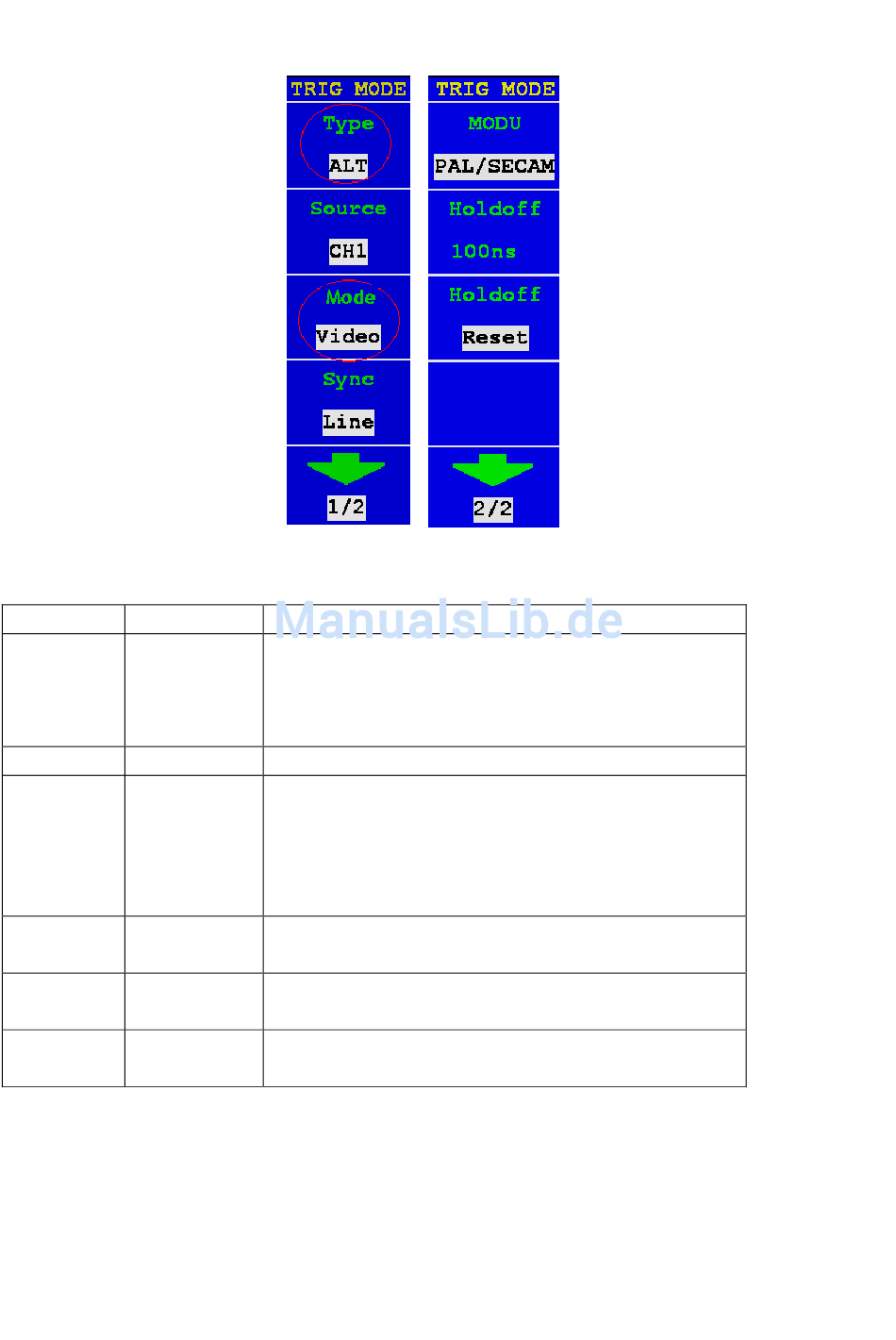

Fig. 45 Alternate trigger (Trigger Type:video) Menu
INSTRUCTION
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Ext-trigger
Ext-trigger divide to 5 to extend trigger level range
Synchronic trigger in video line.
Synchronic trigger in video field.
Synchronic trigger in video odd filed
Synchronic trigger in video even field
Synchronic trigger in designed video line
Video modulation setting
Turn "TRIG LEVEL" knob to set time slot before another
trigger event
Reset hold time to 100ns
