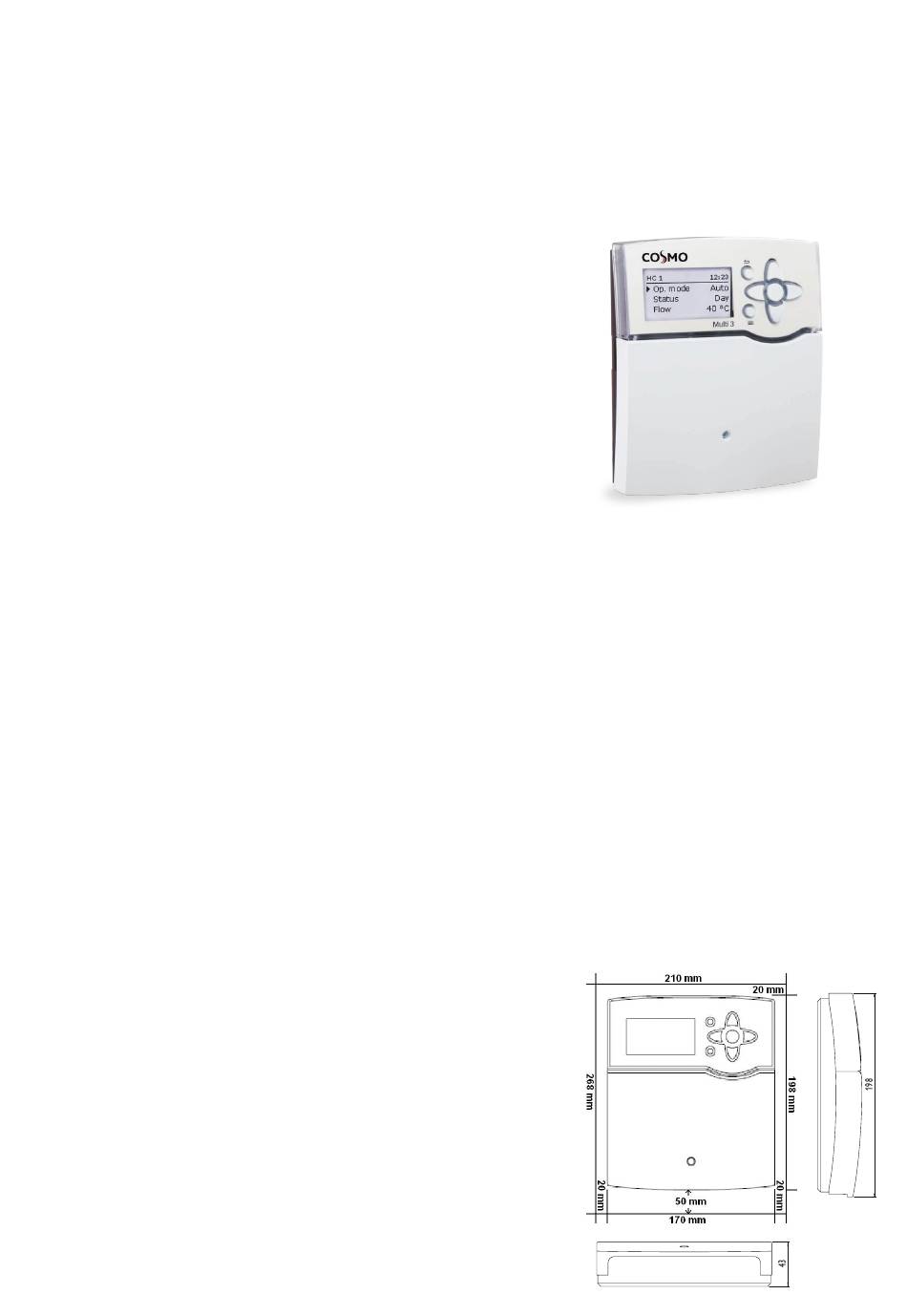

TECHNICAL DATA AND FUNCTION OVERVIEW

• 7 relay outputs and 10 inputs for Pt1000, Pt500 or KTY temperature sensors
• Up to 3 extension modules via VBus
• Inputs for analogue Grundfos Direct Sensors™ as well as for FRH humidity sensors
• Integrated control of up to 4 high-efficiency pumps via PWM outputs
• Data logging, storing, easy transfer of controller adjustments prepared and firmware updates
via SD card
• Cooling over the heating circuit with condensation detection
• Dew point calculation by means of the FRH humidity sensor to avoid condensation
• Simplified timer, 0-10 V boiler control and DHW preheating
• Remote access to the heating circuits with room control unit(s) or the VBus
• Extended optional functions, e.g. solid fuel boiler function with mixer and target temperature
control
TECHNICAL DATA
Inputs:
10 inputs for Pt500, Pt1000 or KTY tempera-
ture sensors, 1 V40 impulse input, inputs for
2 analogue Grundfos Direct Sensors™ or FRH
humidity sensors, input for 1 central outdoor
sensor unit
Outputs:
4 semiconductor relays, 2 electromechanical
relays, 1 potential-free relay and 4 PWM / 0-10
V outputs
PWM frequency:
512 Hz
PWM voltage:
10.5 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
4 (2) A 240 V~ (electromechanical relay)
2 (1) A 24 V ⎓ / 240 V~ (potential-free relay)
Total switching capacity:
6.3 A 240 V~
Power supply:
100 – 240 V~ (50 – 60 Hz))
Supply connection:
type X attachment
Standby:
approx. 1 W
Temperature controls class:
VIII
Energy efficiency contribution:
5 %
Mode of operation:
type 1.B.C.Y action
Rated impulse voltage:
2.5 kV
Data interface:
VBus , SD card slot
®
VBus current supply:
®
60 mA
(28 sensors and 22 relays in total)
®
Functions:
screed drying, weather-compensated heating
circuit control, backup heating, DHW heating
with priority logic, circulation, thermal disin-
fection, heat quantity measurement, optional
functions such as solid fuel boiler, return
preheating, etc.
Housing:
plastic, PC-ABS and PMMA
Mounting:
wall mounting, also suitable for mounting into
patch panels
Indication / Display:
full graphic display, operating control LED
(directional pad) and background illumination
Operation:
7 buttons
Ingress protection:
IP 20 / EN 60529
Protection class:
I
Ambient temperature:
0 ... 40 °C
Degree of pollution:
2
Relative humidity:
10 ... 90 %
Fuse:
T6.3A
Maximum altitude:
2000 m above MSL
Dimensions:
198 x 170 x 43 mm
