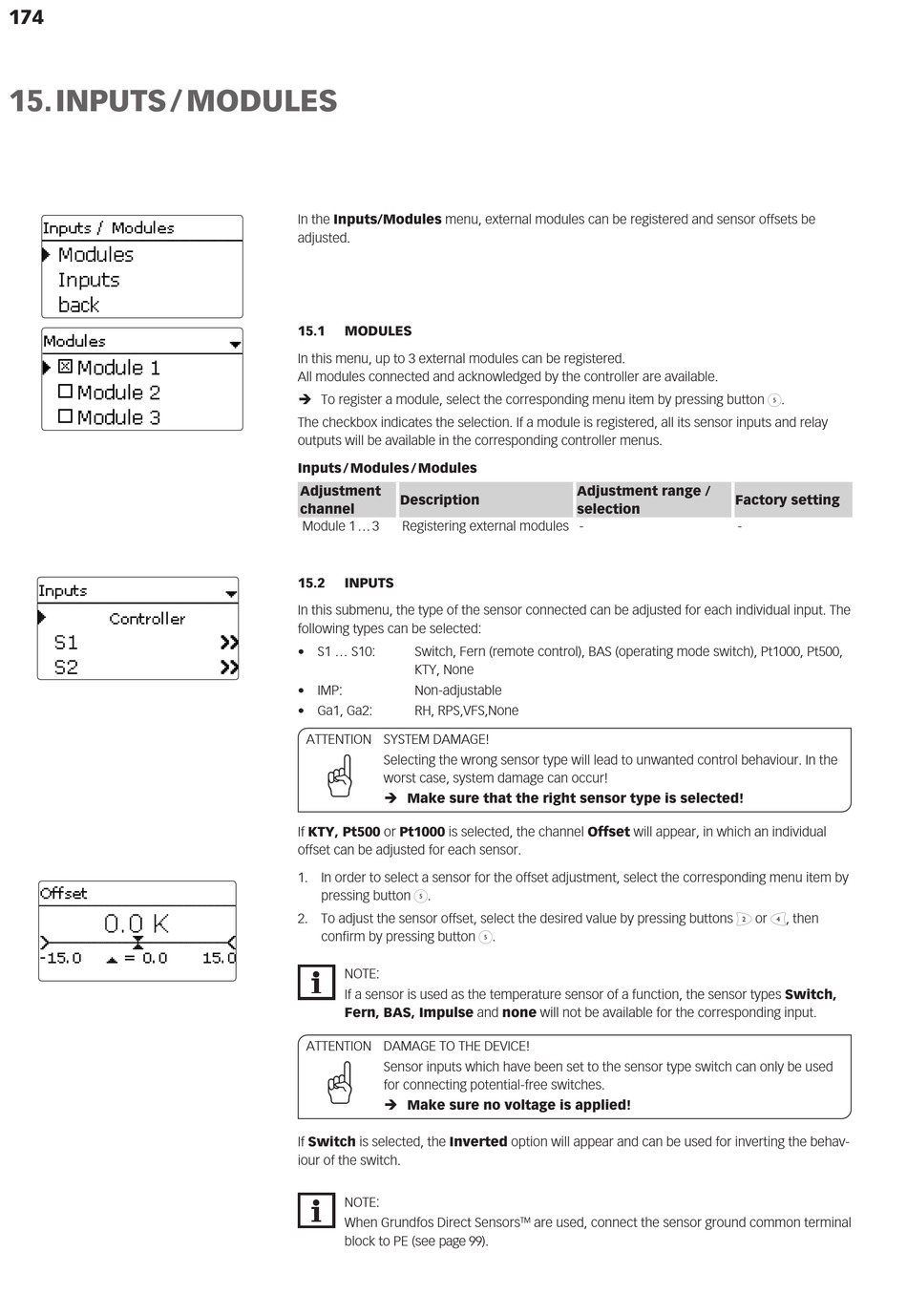

15. INPUTS / MODULES

In the Inputs/Modules menu, external modules can be registered and sensor offsets be
adjusted.
15.1

MODULES

In this menu, up to 3 external modules can be registered.
All modules connected and acknowledged by the controller are available.
Î To register a module, select the corresponding menu item by pressing button ➄.
The checkbox indicates the selection. If a module is registered, all its sensor inputs and relay
outputs will be available in the corresponding controller menus.
Inputs / Modules / Modules
Adjustment
Description
channel
Module 1 ... 3 Registering external modules -
15.2

INPUTS

In this submenu, the type of the sensor connected can be adjusted for each individual input. The
following types can be selected:
• S1 ... S10: Switch, Fern (remote control), BAS (operating mode switch), Pt1000, Pt500,
KTY, None
• IMP: Non-adjustable
• Ga1, Ga2: RH, RPS,VFS,None
ATTENTION SYSTEM DAMAGE!
Selecting the wrong sensor type will lead to unwanted control behaviour. In the
worst case, system damage can occur!
Î Make sure that the right sensor type is selected!
If KTY, Pt500 or Pt1000 is selected, the channel Offset will appear, in which an individual
offset can be adjusted for each sensor.
1. In order to select a sensor for the offset adjustment, select the corresponding menu item by
pressing button ➄.
2. To adjust the sensor offset, select the desired value by pressing buttons ❷ or ❹, then
confirm by pressing button ➄.
NOTE:
If a sensor is used as the temperature sensor of a function, the sensor types Switch,
Fern, BAS, Impulse and none will not be available for the corresponding input.
ATTENTION DAMAGE TO THE DEVICE!
Sensor inputs which have been set to the sensor type switch can only be used
for connecting potential-free switches.
Î Make sure no voltage is applied!
If Switch is selected, the Inverted option will appear and can be used for inverting the behav-
iour of the switch.
NOTE:
When Grundfos Direct Sensors
block to PE (see page 99).
Adjustment range /
selection
are used, connect the sensor ground common terminal
TM
Factory setting
-
