170

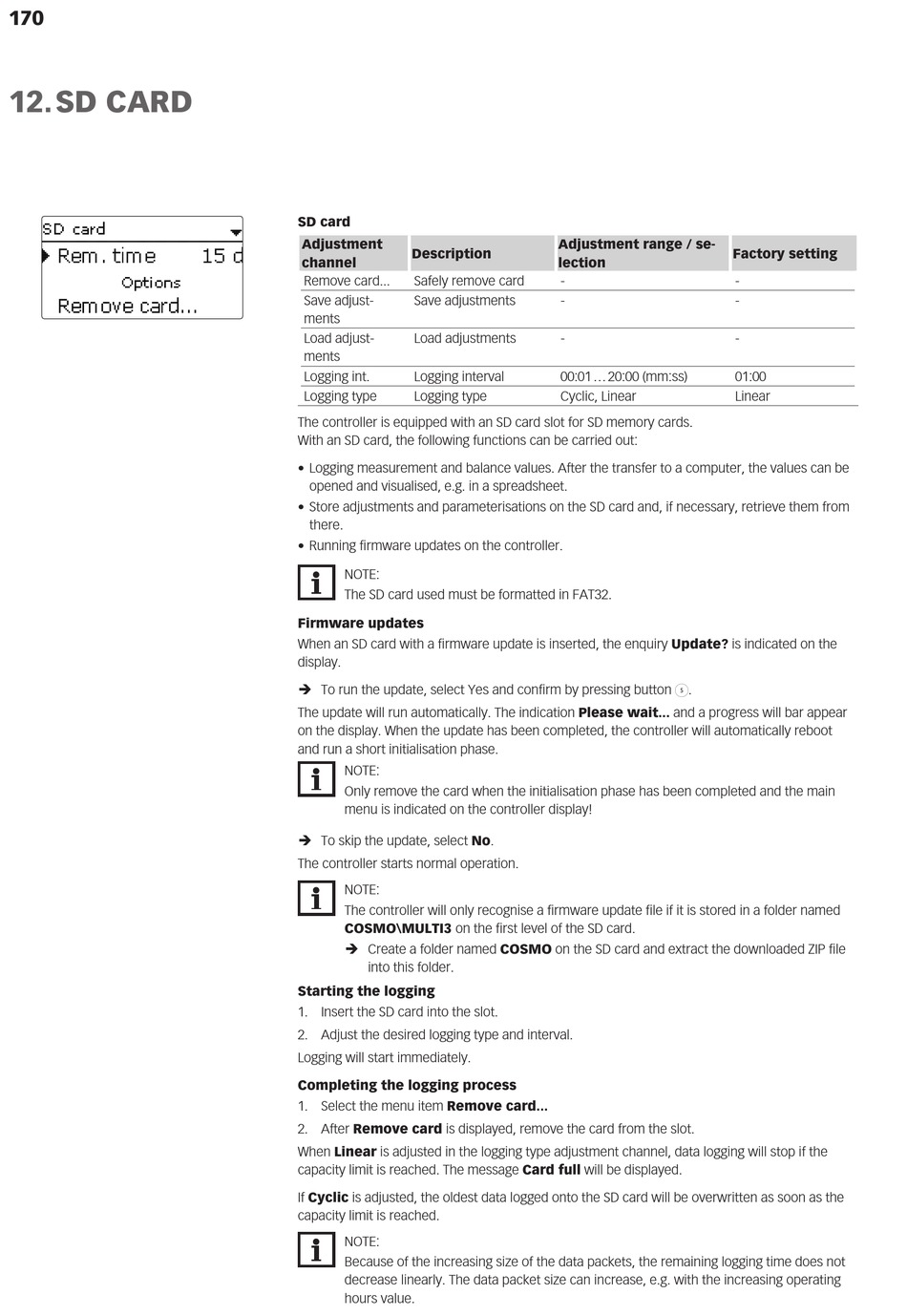

12. SD CARD

SD card
Adjustment
Description
channel
Remove card... Safely remove card
Save adjust- Save adjustments
ments
Load adjust- Load adjustments
ments
Logging int. Logging interval
Logging type Logging type
The controller is equipped with an SD card slot for SD memory cards.
With an SD card, the following functions can be carried out:
• Logging measurement and balance values. After the transfer to a computer, the values can be
opened and visualised, e.g. in a spreadsheet.
• Store adjustments and parameterisations on the SD card and, if necessary, retrieve them from
there.
• Running firmware updates on the controller.
NOTE:
The SD card used must be formatted in FAT32.
Firmware updates
When an SD card with a firmware update is inserted, the enquiry Update? is indicated on the
display.
Î To run the update, select Yes and confirm by pressing button ➄.
The update will run automatically. The indication Please wait... and a progress will bar appear
on the display. When the update has been completed, the controller will automatically reboot
and run a short initialisation phase.
NOTE:
Only remove the card when the initialisation phase has been completed and the main
menu is indicated on the controller display!
Î To skip the update, select No.
The controller starts normal operation.
NOTE:
The controller will only recognise a firmware update file if it is stored in a folder named
COSMO\MULTI3 on the first level of the SD card.
Î Create a folder named COSMO on the SD card and extract the downloaded ZIP file
into this folder.
Starting the logging
1. Insert the SD card into the slot.
2. Adjust the desired logging type and interval.
Logging will start immediately.
Completing the logging process
1. Select the menu item Remove card...
2. After Remove card is displayed, remove the card from the slot.
When Linear is adjusted in the logging type adjustment channel, data logging will stop if the
capacity limit is reached. The message Card full will be displayed.
If Cyclic is adjusted, the oldest data logged onto the SD card will be overwritten as soon as the
capacity limit is reached.
NOTE:
Because of the increasing size of the data packets, the remaining logging time does not
decrease linearly. The data packet size can increase, e.g. with the increasing operating
hours value.
Adjustment range / se-
lection
-
-
-
00:01 ... 20:00 (mm:ss)
Cyclic, Linear
Factory setting
-
-
-
01:00
Linear
