8. ARRANGEMENT

In this menu, all adjustments for the non-solar part of the arrangement can be made.
8.1

OPTIONAL FUNCTIONS

In this menu, optional functions can be selected and adjusted for the arrangement.
The kind and number of optional functions offered depends on the previous adjustments.
NOTE:
For further information about adjusting optional functions, see page 108.

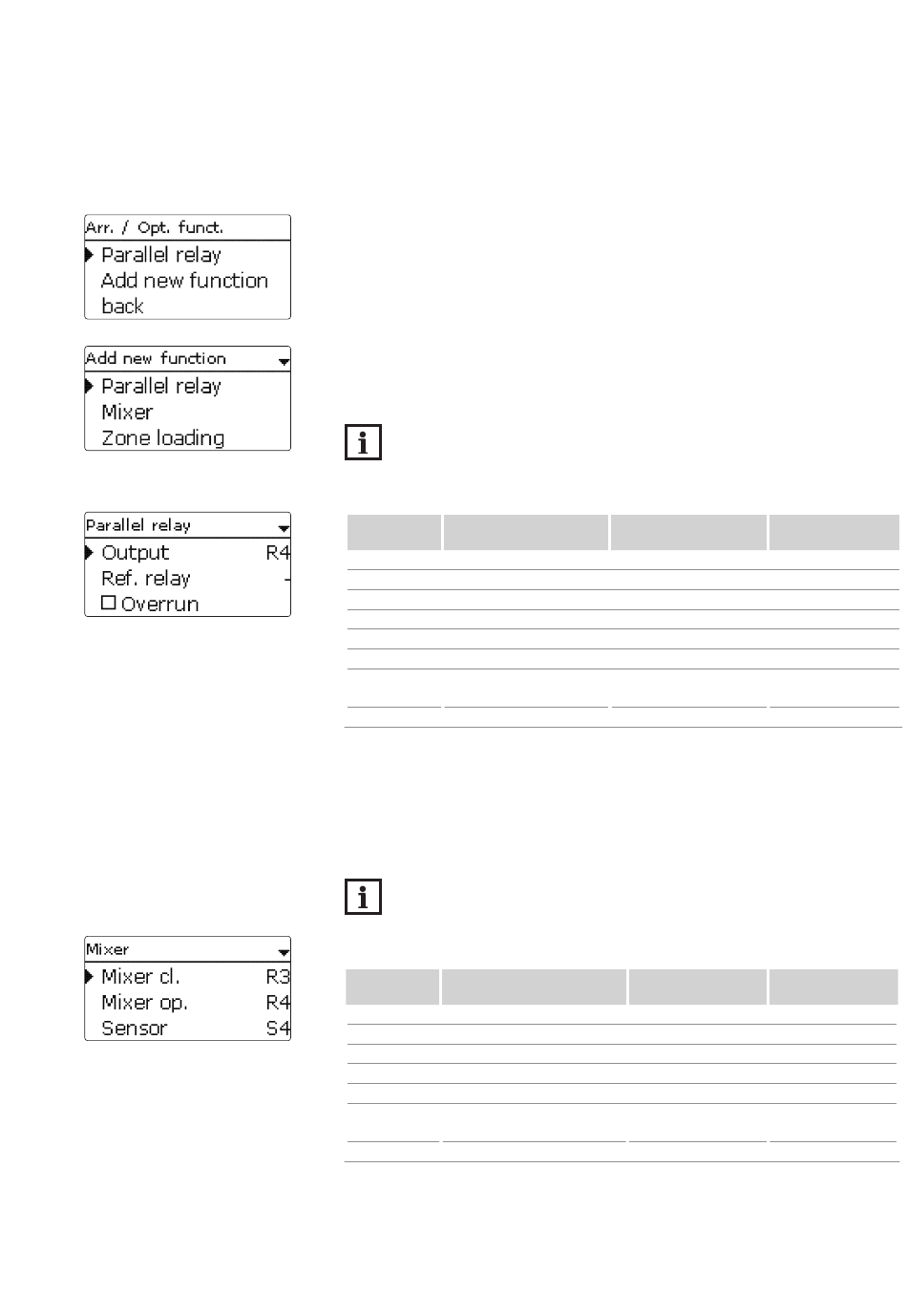

Parallel relay
Arrangement / Opt. functions / Add new function / Parallel relay
Adjustment
Description
channel
Output Output selection
Ref. relay Reference relay selection
Overrun Overrun option
Duration Overrun time
Delay Delay option
Duration Delay time
Funct. Activation / Deactivation
Sensor Switch input selection
This function can be used for operating an allocated output alongside a selected reference relay.
With this function, e.g. a valve can be controlled in parallel to the pump via a separate output.
If the Overrun option is activated, the output remains switched on for the adjusted overrun
time after the reference relay has been switched off.
If the Delay option is activated, the output is energised after the adjusted duration has elapsed.
If the reference relay is switched off again during the delay time, the parallel output is not be
switched on at all.
NOTE:
If a relay is in the manual mode, the selected output will not be energised.
Mixer
Arrangement / Opt. functions / Add new function / Mixer
Adjustment
Description
channel
Mixer cl. Output selection mixer closed
Mixer op. Output selection mixer open
Sensor Sensor selection
TMixer Mixer target temperature
Interval Mixer interval
Funct. Activation / Deactivation
Sensor Switch input selection
This function can be used to adjust the actual flow temperature to the desired mixer target
temperature. The mixer will be opened or closed in pulses depending on this deviation. The
mixer will be controlled with the adjustable interval. The pause is determined by the difference
between the actual value and the set value.
Adjustment range /
Factory setting
selection
system dependent system dependent
system dependent -
Yes, No No
1 ... 30 min 1 min
Yes, No No
1 ... 30 min 1 min
Activated, Deactivated, Activated
Switch
- -
Adjustment range /
Factory setting
selection
system dependent system dependent
system dependent system dependent
system dependent system dependent
0 ... 130 °C 60 °C
1 ... 20 s 2 s
Activated, Deactivat- Activated
ed, Switch
- -
