7. SOLAR
Backup heating suppression

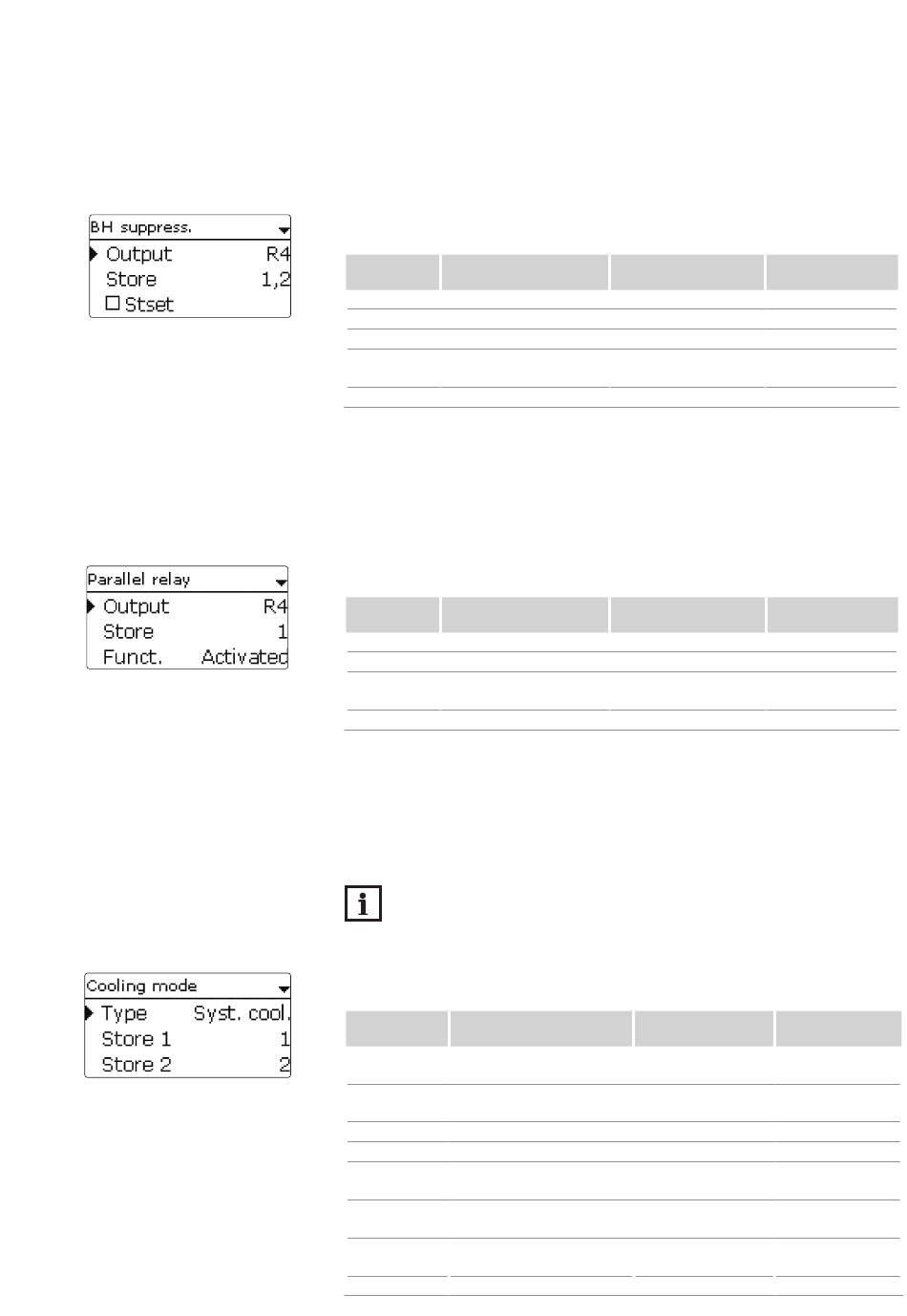

Solar / Opt. functions / Add new function / BH suppress.
Adjustment
Description
channel
Output Reference output
Store Store selection
Stset Set store temperature
Funct. Activation / Deactivation
Sensor Switch input selection
This function blocks the conventional backup heating of a store that is currently in solar loading.
This function is activated if a previously selected store is being loaded by solar heat.
Solar loading means that store loading is only carried out for energy supply and not for cooling
purposes etc.
If the Stset option is activated, the backup heating will only be suppressed when the store
temperature exceeds the set store temperature.
Parallel relay
Solar / Opt. functions / Add new function / Parallel relay
Adjustment
Description
channel
Output Parallel output
Store Store selection
Funct. Activation / Deactivation
Sensor Switch input selection
With this function, e.g. a valve can be controlled in parallel to a solar pump via a separate out-
put.
Switch-on condition for the solar parallel relay function is that one or more of the selected
stores is being loaded. If one of the selected stores is being loaded, the parallel output will be
energised.
The parallel relay function operates regardless whether the store is subjected to regular solar
loading or to a loading caused by a solar optional function (such as the collector cooling).
NOTE:
If a relay is in the manual mode, the selected parallel output will not be energised.
Cooling mode
Solar / Opt. functions / Add new function / Cooling mode
Adjustment
Description
channel
Type Cooling logic variant
TColmax. Collector maximum temper-
ature
Store (1 ... 4) Store succession order
St. cooling Store cooling option
Switch-on temperature
DTOn
difference
Switch-off temperature
DTOff
difference
Funct. Activation / Deactivation
Sensor Switch input selection
Adjustment range /
Factory setting
selection
system dependent system dependent
system dependent system dependent
Yes, No No
Activated, Deactivated, Activated
Switch
- -
Adjustment range /
Factory setting
selection
system dependent system dependent
system dependent system dependent
Activated, Deactivated, Activated
Switch
- -
Adjustment range /
Factory setting
selection
Col. cool., Syst. cool., Off
Off
70 ... 190 °C 100 °C
system dependent system dependent
Yes, No No
1.0 ... 30.0 K 20.0 K
0.5 ... 29.5 K 15.0 K
Activated, Deactivat- Activated
ed, Switch
- -
