9. HEATING
9.3

OPTIONAL FUNCTIONS

In this menu, optional functions can be selected and adjusted for the heating part of the ar-
rangement.
The kind and number of optional functions offered depends on the previous adjustments.
In the Demand submenu, the modes Standard and Demand are available. If Standard is
selected, the output can be adjusted.
If Demand is selected, a demand has to be activated and adjusted in the Heating / Shared
rel. menu first.
NOTE:
For further information about adjusting optional functions, see page 108.
NOTE:
For information on the output selection see page 109.

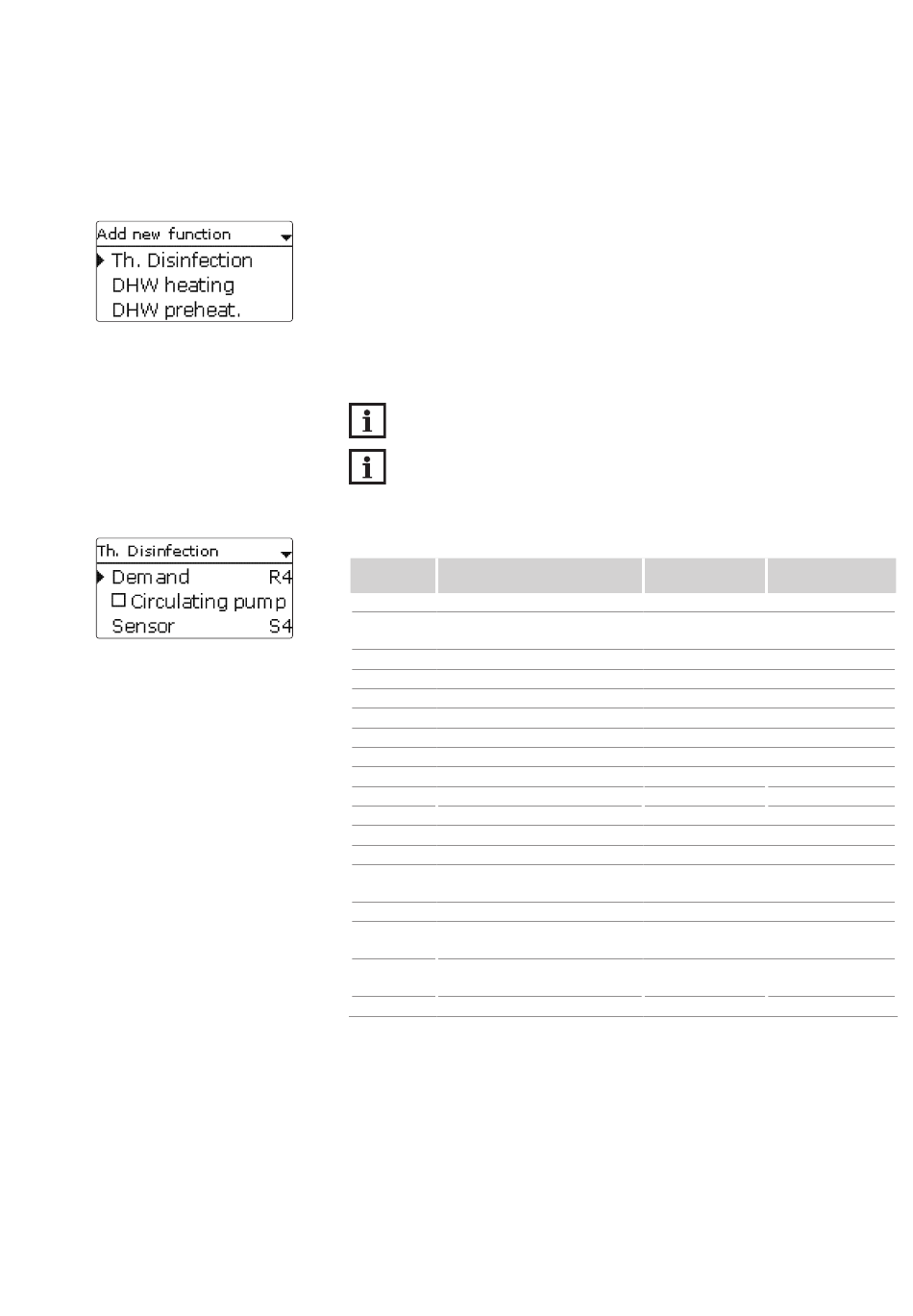

Thermal disinfection
Heating / Opt. functions / Add new function / Th. Disinfection
Adjustment
Description
channel
Demand Demand relay selection
Circulating Circulating pump option
pump
Output Circulating pump output selection
Sensor Disinfection sensor selection
Interval Monitoring period
Temperature Disinfection temperature
Duration Disinfection period
Cancellation Cancellation option
Cancellation Cancellation interval
Start. time Starting delay option
Start. time Starting time
Hyst. off Switch-off hysteresis
Hyst. on Switch-on hysteresis
TD holid. off Thermal disinfection off when
holiday function is active
BAS off Operating mode switch off option
Sensor Allocation operating mode switch
input
Funct. Activation / Deactivation
Sensor Switch input selection
This function helps to contain the spread of Legionella in DHW stores by systematically activating
the backup heating.
One sensor and one output or demand respectively can be selected for this function.
For thermal disinfection, the temperature at the allocated sensor has to be monitored. Protec-
tion is ensured when, during the monitoring period, the disinfection temperature is continuously
exceeded for the entire disinfection period.
The monitoring period starts as soon as the temperature at the allocated sensor falls below
the disinfection temperature. If the monitoring period ends, the demand activates the backup
heating. The disinfection period starts when the temperature at the allocated sensor exceeds
the disinfection temperature.
Thermal disinfection can only be completed when the disinfection temperature is exceeded for
the duration of the disinfection period without any interruption.
The parameter Cancellation is used for adjusting the period after which the backup heating is
cancelled. If the backup heating is cancelled, an error message is displayed. Thermal disinfection
is cancelled.
Adjustment
Factory setting
range / selection
system dependent system dependent
Yes, No No
system dependent system dependent
system dependent system dependent
0 ... 30, 1 ... 23 (dd:hh) 1d 0h
45 ... 90 °C 60 °C
0.5 ... 24.0 h 1.0 h
Yes, No No
1.0 ... 48.0 h 2.0 h
Yes, No No
00:00 ... 23:30 20:00
2 ... 20 K 5 K
1 ... 19 K 2 K
Yes, No No
Yes, No No
system dependent system dependent
Activated, Deacti- Activated
vated, Switch
- -
