4. COMMISSIONING
S1 S6
R1
R4
R2
R3; A
S2
S1 S6
R1
R2
R3; A
S2
R5
R4
S1 S6
R1; A R2; B
S2 S4
R3 R4 R5

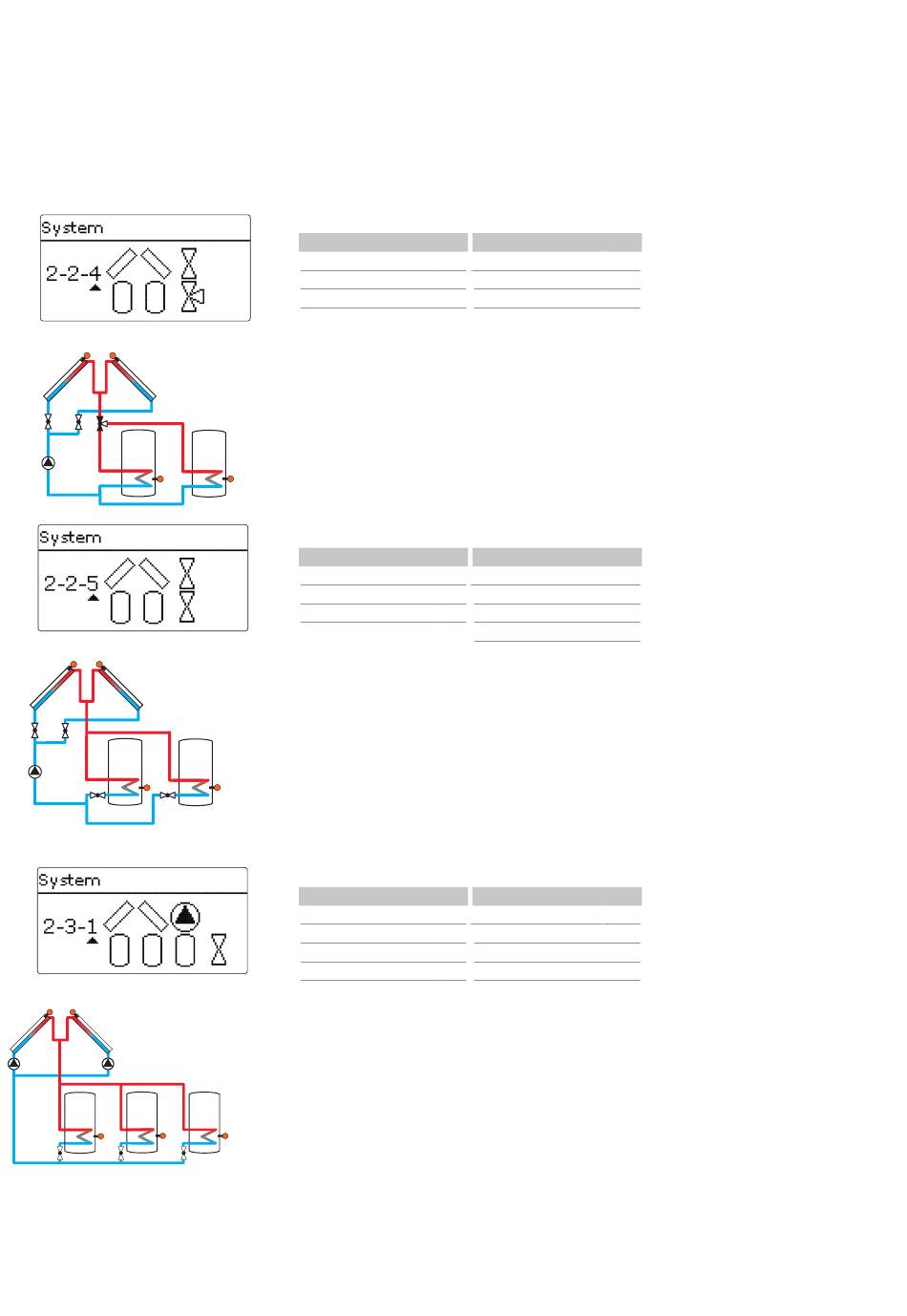

System 2.2.4
Sensors
Collector 1
Store 1 base
Store 2 base
Collector 2
S4
System 2.2.5
Sensors
Collector 1
Store 1 base
Store 2 base
Collector 2
S4
System 2.3.1
Sensors
Collector 1
Store 1 base
Store 2 base
Store 3 base
Collector 2
S5
Relays; PWM / 0-10 V
S1 2-PV collector 1 R1
S2 2-PV collector 2 R2
S4 Solar pump R3; A
S6 3-PV store 2 R4
Relays; PWM / 0-10 V
S1 2-PV collector 1 R1
S2 2-PV collector 2 R2
S4 Solar pump R3; A
S6 2-PV store 1 R4
2-PV store 2 R5
Relays; PWM / 0-10 V
S1 Pump collector 1 R1; A
S2 Pump collector 2 R2; B
S4 2-PV store 1 R3
S5 2-PV store 2 R4
S6 2-PV store 3 R5
